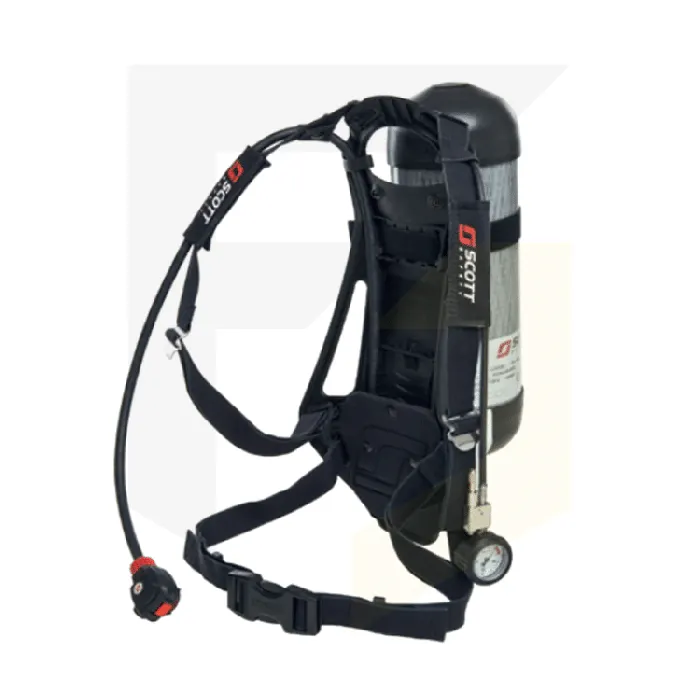

3M Scott Safety Scott ProPak Sigma SCBA (V2)

3M Scott ProPak Sigma Self-Contained Breathing Apparatus. Some of our configurations in this bundle are supplied with or without a mask.

* Required Fields

    £804.00 £670.00

    3M Scott Safety Scott ProPak Sigma SCBA (V2)

    3M Scott ProPak Sigma SCBA

    The ProPak Sigma SCBA from 3M - Scott Safety is a Type 2 open-circuit self-contained breathing apparatus set.

    Please note: cylinders must be purchased separately.

    This SCBA set has been designed as a cost-effective solution for marine and industrial firefighting environments. It has minimal padding with rigid back frame construction.

    Those with facemasks within this bundle come with a Vision 3 Facemask. They can also be configured with a ProMask Positive Pressure facemask; please speak to our sales team in the live chat if you require this facemask. The 3M Scott ProPak Sigma should also be used with a range of composite or steel cylinders.

    With a tempest demand valve, this provides low breathing resistance with first-breath automatic activation.

    Looking for more information about the above configurations? Speak to our sales team in the live chat, or call us on 0141 771 7749.

    Key Features
    • Webbing in upper and lower harness for easy cleaning
    • Remove pneumatics without the need for tools
    • EN 137:2006 Type 2 MED Approved
    Specifications

    Approvals

    CE marked in accordance with EN 137:2006: Type 2



    MED Shipswheel

    Materials

    Pressure reducing valve

    Nickel plated brass

    Rust tube cylinders

    Brass

    Reducing valve seat

    Polyamide (nylon)

    O-rings

    Nitrile, silicone, EPDM

    Reducing valve springs

    Stainless steel

    HP pressure gauge

    Stainless steel, polycarbonate lens

    HP pressure gauge cover

    Neoprene

    MP air supply hose fittings

    Nickel plated brass

    Facemask

    Neoprene, silicone or procomp

    Facemask visor

    Polycarbonate

    MP air supply hose fittings

    Nickel plated brass

    Facemask

    Neoprene, silicone or procomp

    Facemask visor

    Polycarbonate

    MP air supply hose

    EPDM cover, fabric braid reinforcement, EPDM liner

    MP air hose

    PTCFE liner, stainless steel braiding, estane sleeve

    Valve handwheel

    Glass filled polyadmide/TPE

    Harness

    Kevlar blend webbing, PROBAN covered padding

    Backplate

    Glass and carbon filled nylon composite

    Backpad

    Flame-retardant cross-linked polyolefin closed cell foam covered in a PROBAN fabric

    Cylinder band

    Kevlar and Pyrogard blend webbing, reflective thread

    Strap buckles

    Stainless steel

    Cylinder

    Steel or composite

    Cylinder valve

    Nickel plated brass

    Demand valve casing

    Glass filled polyamide

    Tempest Demand Valve

    First breath activation

    -20 to -30 mbar

    Peak flow performance

    In excess of 1000 litres/minute

    Bypass flow

    150 litres / minute nominal

    Static positive pressure

    1.0 – 4.0 mbar

    Reducing Valve

    Outlet pressure



    200 bar inlet

    5.5 to 9.5 bar

    300 bar inlet

    6.0 to 11.0 bar

    Pressure relief valve protected

    Approx 13.5 bar

    Flow restrictor to gauge supply hose

    <25 litres minute

    Pressure Indicator and Warning Whistle

    Bourdon tube dial indicator



    Heat and impact resistant polycarbonate lens



    Safety blow-out vent in rear of gauge



    Accuracy

    +/- 10 bar between 40-300 bar

    Hoses



    Stainless steel swivel hose fittings



    Medium pressure hose



    Maximum working pressure

    16 bar

    Minimum burst pressure

    80 bar

    High pressure hose



    Maximum working pressure

    450 bar

    Minimum burst pressure

    800 bar

    Weight/Dimensions



    Weight

    Single configuration (less cylinder) 2.6kg

    Single configuration and facemask (less cylinder) 3.2kg

    Length

    630 mm

    Width

    285 mm

    Depth (with 6.0 litre 200 bar cylinder)

    215 mm
