3M Scott Vision 3 Positive Pressure Face Mask
This positive pressure face mask - the 3M Vision 3 is made with a liquid silicone rubber mask and a reflex seal. It has been designed to work with the full 3M Scott Breathing Apparatus range.
Users can benefit from panoramic vision thanks to its multi-curvature polycarbonate visor. Additionally, integrated spectacles can be worn without impacting the face mask seal.

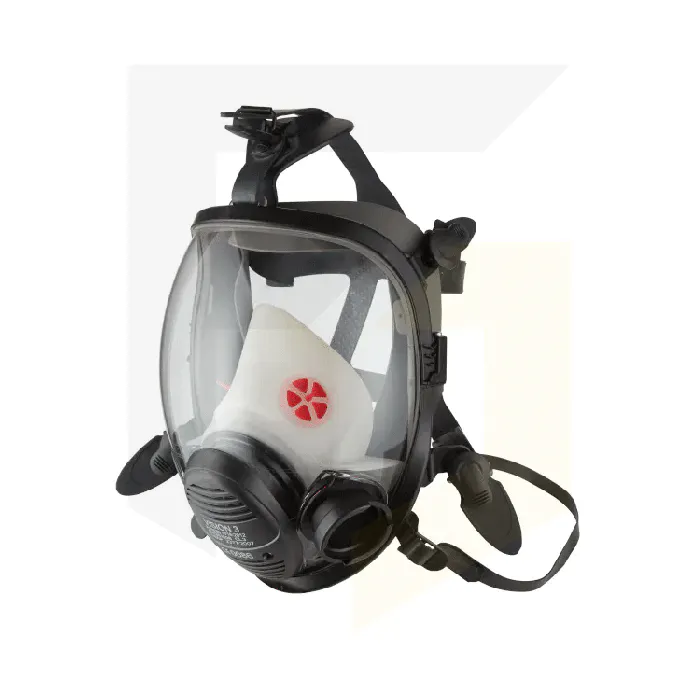

The bayonet connection for the demand valve of the Vision 3 can be found on the left-hand side of the mask, as shown in the product image.
When the 3M Scott Vision 3 Face Mask also hosts a positive pressure exhalation valve which allows for normal breathing when the mask is used in positive pressure mode.
When used with 3M Scott Breathing Apparatus, these face masks are suitable for respiratory in Immediately Dangerous to Life Environments (ELDH).
Abbreviation Key
LQF | Left Quick Fit |
REQF | Right Electronic Quick Fit |
ECB | Epic Comms Bracket |
Approvals | CE Marked in accordance with EN 136:1998 Class III CE marked in accordance with EN 137:2006 Type II when used in conjunction with approved 3M Scott SCBA CE marked in accordance with EN 14593 when used with 3M™ Scott airline equipment AS1716/NZ |
Visor | Polycarbonate with Silicone Coating |
Inhale Valve Flaps | Silicone rubber |
Exhale Valve Flaps | Polyisoprene rubber |
Exhale Valve Housing | Polyamide |
Exhale Valve Spring | Stainless steel |
Speech Diaphragm | Mylar (polyester) film membrane in a moulded polyethylene grid with anodised aluminium coating |
Visor Surround | Polyamide 6-6 |
Outer Mask | Injection moulded liquid silicone |
Front Cover | Glass filled polyamide |
Demand Valve Port | Glass filled polyamide |
Inner Mask | Thermoplastic elastomer |
Screws | Stainless steel |
Nuts | Nickel plated brass |
Buckles | Polyamide |
Headharness | 5 point neoprene, net head harness in polyester or Kevlar material |
Clamping System (Optional) | Stainless steel brackets, plastic clamp mechanism |
Packing Specification | 265x190x150m 0.75kg |
