PRODUCT CODE
048-5900-000
£3,004.80 £2,504.00
AutoRAE EntryRAE Starter Kit


AutoRAE EntryRAE Starter Kit

AutoRAE EntryRAE Starter Kit

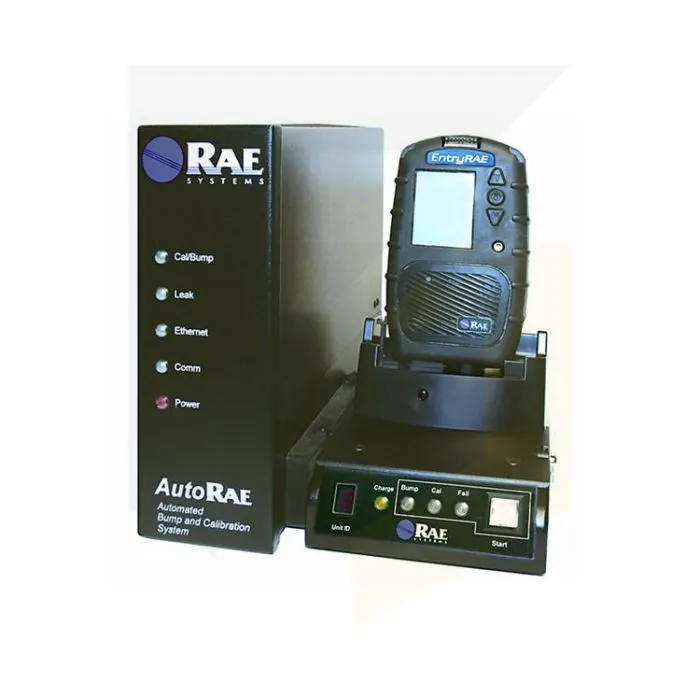

Please Note: The image above is for illustration purposes only.  Monitors are not included with this kit.

AutoRAE is an automated bump test, calibration, data download, and charging system for RAE Systems gas monitors, including EntryRAE, MiniRAE 3000, ppbRAE 3000, and QRAE*.

Engineered for maximum calibration efficiency, AutoRAE can support multiple plug-and-play instrument-specific cradles to enable simultaneous calibration and charging of up to 10 monitors at a time. Bump testing and calibration are as simple as a press of a button. Within minutes, easy-to-read LEDs inform you of the status of the gas monitors’ sensors.  If a monitor fails a bump test, the system automatically performs a calibration. AutoRAE can be connected to an optional external printer to generate bump test and calibration certificates for record keeping right on the spot.

*QRAE (non-silver box)

Key Features

Fast and efficient

  • Saves time by calibrating and charging multiple devices simultaneously

Easy to use

  • Automatic, pushbutton-easy bump testing and calibration
  • Requires minimal to no training to operate
  • Does not require a PC
  • Bump and calibration certificates can be printed on the spot or saved directly to a computer for record keeping

Focused on safety

  • Helps ensure monitors are always calibrated and charged
  • Increases user confidence and safety
Specifications

Calibration Gas Specifications

Sensor(s) Calibrated Gas
PID
(Regulator - Demand-Flow)
100 ppm Isobutylene or
10 ppm Isobutylene for ppbRAE 3000
Oxygen
(Regulator - None)

Fresh air

Combustible, Carbon Monoxide, and Hydrogen
(Regulator - Demand-Flow)
4-gas mix: 50% LEL, 20.9% O2, 10 ppm H2S, 50 ppm CO
4-gas mix: 50% LEL, 18% O2, 10 ppm H2S, 50 ppm CO



AutoRAE Specifications

Size
  • Controller: 11.0" x 3.38" x 8.63" (27.94 cm x 8.59 cm x 21.92 cm)
  • Cradle: size varies
Gas Inlets One fresh air, one isobutylene, one 4-gas mix, one optional
Monitors Supported in a Single Block
  • EntryRAE
  • MiniRAE 2000 and 3000
  • MultiRAE Plus (non-silver box)
  • QRAE (non-silver box)
  • QRAE Plus
  • ppbRAE 3000
Power Supply Universal power supply
Keypad One button operation
Cradle LEDs
  • Charge: flashes when in process, steady when complete
  • Bump: flashes when in process, steady when complete
  • Cal: flashes when in process, steady when complete
  • Fail: flashes when a leak is detected, steady when calibration fails
Warranty

One year

What's Included
  • Pelican case
  • One (1) AutoRAE controller
  • Four (4) EntryRAE cradles
  • Isobutylene span gas - 34L cylinder of 100 ppm isobutylene calibration gas
  • 4-gas mix span gas - 34L cylinder of 4-gas mix (50% LEL methane, 20.9% oxygen, 10 ppm hydrogen sulfide, 50 ppm carbon monoxide, balance nitrogen)
  • Demand flow regulartors (2) - female threaded demand-flow regulator for the isobutylene cylinder; male-threaded demand-flow regulator for the 4-gas mix cylinder
  • Tubing to connect two (2) cylinders of calibration gas
  • Universal power supply
  • User manual and CDROM
