Understanding Catalytic Bead Sensor Technology: How it Works and Why it Matters in Gas Detection

Catalytic bead sensors, or pellistor sensors, have long been at the forefront of gas detection technology. Used primarily for detecting flammable gases, these sensors have played an essential role in protecting lives and property across various industries. In this post, we'll examine how catalytic bead sensors work, their benefits, and why oxygen sensors are critical in enhancing their performance. We’ll also explore the latest insights and facts from some reputable sources to ensure you get a comprehensive understanding of this technology.

How Do Catalytic Bead Sensors Work?

At the heart of catalytic bead sensors is a simple yet effective principle: combustion. The sensor consists of two beads—one active and one inactive (or reference). The active bead is coated with a catalyst, usually a precious metal like platinum, which facilitates the combustion of flammable gases when they come into contact with it.

When a flammable gas, such as methane, propane, or hydrogen, enters the sensor, it combusts on the active bead's surface. This reaction produces heat, which increases the bead's temperature. As a result, the bead's resistance changes, and this difference in resistance is measured and translated into a gas concentration reading. The reference bead, which does not react with the gas, is used to compare temperature changes, providing a baseline for accuracy.

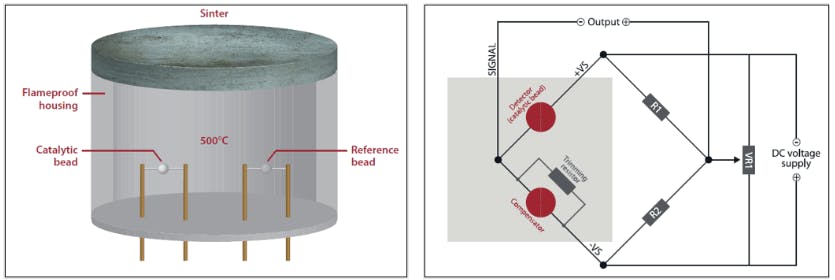

This technology is reliable because it directly detects the heat generated by combustion, making it effective in environments where explosive gas leaks are a risk. The underlying concept might sound straightforward, but the engineering and precision behind catalytic bead sensors ensure consistent and reliable readings, which can mean the difference between safety and danger in hazardous environments. The below diagram from one of our suppliers, Blackline Safety, illustrates the technology very well.

Why Are Oxygen Sensors Important?

While catalytic bead sensors are great for detecting flammable gases, they do have limitations. One of the most significant factors affecting their performance is oxygen availability (O2). Combustion, the fundamental process in catalytic sensors, requires oxygen. In low-oxygen environments, the sensor may not detect gas accurately because the combustion process is hindered.

This is where oxygen sensors come into play. They measure the oxygen level in the environment, ensuring there is enough oxygen for the catalytic reaction to occur correctly. PK Safety's article on catalytic gas detectors states, "a lack of oxygen may cause the catalytic bead sensor to provide inaccurate readings or fail to detect a gas hazard altogether." As such, oxygen sensors are critical to the safety setup in environments where oxygen depletion is a potential issue, such as confined spaces or industrial areas where gases might displace oxygen.

When you combine oxygen sensors with catalytic bead sensors, you create a more reliable system that can alert workers to both flammable gas hazards and oxygen depletion. This combination is essential for ensuring a safe working environment in industries where oxygen depletion is a possibility such as oil and gas, chemicals, and mining. Through our experiences, we have found that some multi-gas detectors have issues with their catalytic bead LEL sensor when there are problems with their oxygen (O2) sensor.

Key Applications of Catalytic Bead Sensors

Catalytic bead sensors are highly versatile and can be found in a range of industries and applications. Their primary function, detecting flammable gases, is crucial in various sectors, particularly those dealing with combustible materials. Below are some common applications:

1. Oil & Gas Industry:
   Gas leaks in the oil and gas sector can lead to catastrophic explosions if not detected early. Catalytic bead sensors are frequently used to monitor the presence of gases like methane, propane, and butane, providing early warning of dangerous conditions.
2. Chemical Manufacturing:
   Many chemical processes produce or involve flammable gases. Catalytic bead sensors ensure that gas concentrations remain within safe limits, reducing the risk of fire or explosion.
3. Mining Operations:
   Mines can often have pockets of explosive gases like methane. Catalytic bead sensors are used to monitor the levels of these gases and alert workers if they reach dangerous concentrations.
4. Wastewater Treatment:
   In wastewater treatment plants, various flammable gases can accumulate, particularly methane. These sensors play a crucial role in preventing gas buildup that could otherwise lead to fires or explosions.
5. Confined Spaces:
   Any confined space with gases can be risky, especially when ventilation is poor. Catalytic bead sensors, paired with oxygen sensors, ensure that both gas buildup and oxygen depletion are closely monitored.

Limitations of Catalytic Bead Sensors

Despite their widespread use, catalytic bead sensors aren't without limitations. One key drawback is their vulnerability to certain conditions, particularly poisoning. Catalytic beads can become "poisoned" by specific substances, including silicones, lead compounds, and gases that contain sulphur. This poisoning renders the catalytic surface inactive, thereby compromising the sensor's ability to detect gas accurately.

Another limitation is that these sensors are generally only effective for detecting flammable gases, for non-flammable toxic gases, such as carbon monoxide or hydrogen sulfide, alternative sensor types like electrochemical sensors are necessary.

Additionally, as mentioned above catalytic bead sensors require a minimum concentration of oxygen to function. In environments where oxygen levels are dangerously low, alternative gas detection methods might be needed.

Maintenance and Calibration of Pellistor Sensors

One key to ensuring catalytic bead sensors work optimally is regular calibration and maintenance. Over time, these sensors can drift, meaning their readings may become less accurate. Regular calibration against known gas concentrations helps keep them performing correctly.

Moreover, catalytic bead sensors have a finite lifespan and must be replaced periodically. Factors like exposure to poisons, frequent high gas levels, and environmental conditions can all shorten the sensor's lifespan. Regular maintenance checks will identify if a sensor is no longer functioning at its best and needs replacing.

Final Thoughts?

Catalytic bead sensors are essential for detecting flammable gases, providing quick warnings that help protect lives and property. Their straightforward design makes them effective, but oxygen sensors are crucial to ensure accuracy in all environments. Regular maintenance, calibration, and pairing with oxygen sensors are essential to getting the most out of these sensors. This combination ensures reliable monitoring, particularly in high-risk industries like oil and gas, chemicals, and mining.
