BW Clip CO 20/100 ppm (2 Year) Gas Detector

PRODUCT CODE:
BWC2-M20100

The BW Clip is a 2 year disposable gas detection monitor. It comes in H2S, CO, O2 and SO2 configurations. Please note: the hibernation case is not suitable for the SO2 or O2 Clips.   The display will show the countdown of the detector's lifetime in months.

Read our Guide to Disposable Single Gas Detectors

£168.00 inc VAT
£140.00
Loading...

Product description

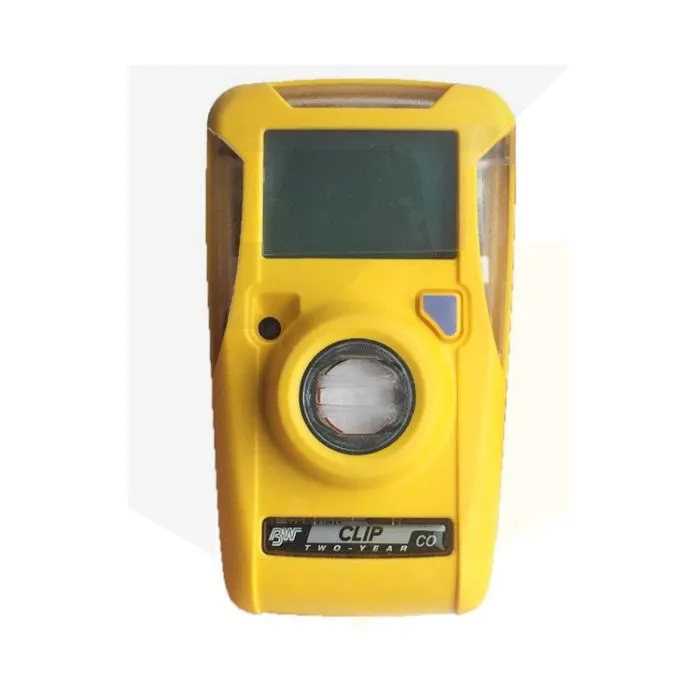

BW Clip (2 Year) Carbon Monoxide (CO) 20/100ppm Gas Detector

The BW Clip is a reliable and cost-effective single gas detector from BW Technologies. This version of the Clip detects Carbon Monoxide (CO), has alarm set points of 20/100ppm and comes with a 2 year warranty from activation.

The display of the Clip will show the countdown of the detector's lifetime in months, it does not show a ppm reading. If you require a ppm reading then please view the BW Clip RT monitor.

This BW gas detector is ideal for compliance and protection in industrial applications and hazardous environments. It’s designed to be compact and light in weight with no need for calibration, sensor or battery replacement or battery charging. The BW Clip will run continuously without any downtime.

The BW Clip is water-resistant and comes in a highly visible, yellow concussion-proof. The colour-coded label on the front of the detector will indicate which gas is being detected. Another advantage of this BW CO gas detector is its ability to automatically log 35 most recent gas events and bump test results which can be downloaded.

Check out our website to view the BW Clip for Oxygen (O2), the BW Clip for Hydrogen Sulphide (H2S) and the BW Clip for Sulphur Dioxide.

Key Features

  • Extend the shelf life by purchasing the BW Hibernation Case
  • Compatible with the Intellidox from BW Technologies
  • Easy to wear due to stainless steel crocodile clip
  • Surecell's unique dual reservoir sensor design improves performance
  • Automatic self-test function checks operating condition of detector
  • Easy to use with one-button operation
  • Configurable alarm set points and user settable bump test reminders
Specification

Dimensions

  • 1.6 x 2.0 x 3.4 in. / 4.1 x 5.0 x 8.7 cm
  • 3.2 oz./92g

Measuring Range



Temperature

-22 to +122°F / -30 to +50°C

Humidity

5% - 95% RH (non-condensing)

Alarms

Visual, Audible (95dB), Vibrating – low and high

Tests

One internal diagnostic test every 24 hrs (activated detectors)

Typical Battery Life

2 years

Ingress Protection

IP 66/67

Certifications & Approvals

CUL US

  • Class I, Div. 1, Gr. A, B, C, D
  • Class I, Zone 0 , Gr. IIC

ATEX

  • CE Ex 0539 II 1G
  • Ex ia IIC T4 Ga IP66/67
  • DEMKO 14 ATEX 1356

IECEx:

  • Ex ia IIC T4 Ga IP66/67
  • IECEx UL 14.0063

CE

  • European Conformity

Warranty

Two years from activation (3 years if hibernation feature is used) plus one year shelf life

What’s Included?

  • BW Clip with CO sensor
  • Stainless Steel Alligator Clip
  • Concussion-proof housing
  • Test Cap
  • Instructions
