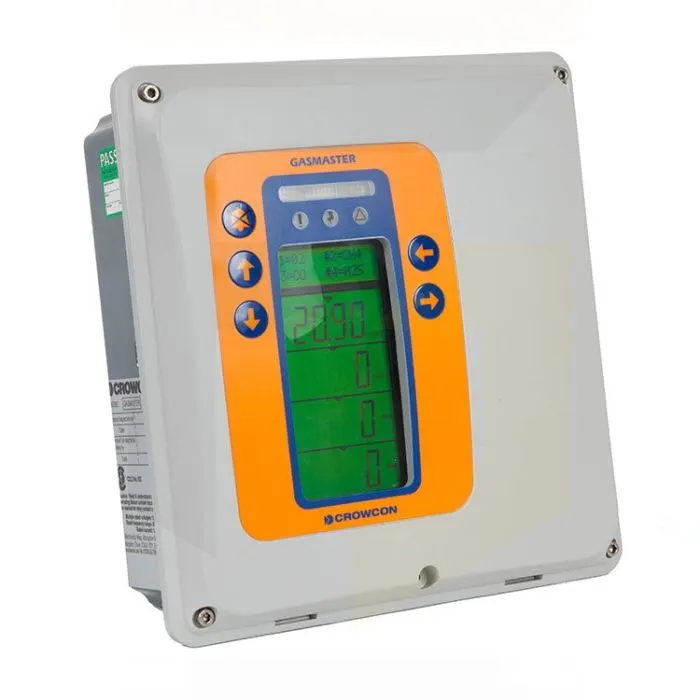

Crowcon Gasmaster 1 - Gas Detection Control Panel
Crowcon Gasmaster 1 - Gas Detection Control Panel Crowcon Gasmaster 1 - Gas Detection Control Panel

Product Code -

Price From: £877.00 exc VAT £877.00 inc VAT £1,052.40

Price as configured: exc VAT £0.00 inc VAT £0.00

Crowcon wall mounted control unit for one 4-20mA or mV pellistor-type gas detector, fire zone (up to 20 heat/smoke detectors or call points) or flame detector.

Price as configured: exc VAT £0.00 inc VAT £0.00

Availability: In stock

Description / Features / Spec

Description

Crowcon Gasmaster 1 - Gas Detection Control Panel

Gasmaster is a compact, versatile and powerful gas detection control panel that combines simple operation with an extensive array of input and output functions.

Gasmaster provides all the information you need about your gas and fire detectors at a glance. The large multi-lingual display shows gas levels from all detectors simultaneously and enables system adjustment and testing using buttons on the front panel. Gasmaster can operate ‘stand-alone’ or interface with any alarm devices and control systems using a selection of outputs

This Crowcon wall mounted control unit for one 4-20mA or mV pellistor-type gas detector, fire zone (up to 20 heat/smoke detectors or call points) or flame detector. Features RS-485 Modbus communications for DCS/PLC/SCADA connection, event logging, as well as dedicated drives for 12/24Vdc audible/visual alarms.

Double-pole relays with contacts rated 8A 250Vac (non-inductive) are supplied to indicate Alarm 1, Alarm 2 and Fault. A 4-20mA or 1-5Vdc analogue output is provided. Gasmaster operates from 90-264Vac and has 1.2Ah back-up batteries fitted as standard.

Display language options are available: English (as standard), French, Dutch, Spanish, German, Italian, Czech and Polish. If the display is required in a language other than English, please state the language clearly on the order.

Key Features

  • IP65
  • LCD Display
  • Two levels of independent alarm per channel
  • Multi-language display options
  • Event log feature – enables system fault and alarm history to be viewed
  • Menu system is intuitive and easy to use

Specifications

Gasmaster 1

Gasmaster 4

Size

288 x 278 x 110mm (11.3 x 10.9 x 4.3 inches)

Weight

4.5kg (10lbs)

Enclosure material

Back-box: cast aluminium
Front cover: ABS (flame retardant)

Ingress protection

IP65

Power

100-240Vac 50-60Hz or
20-30Vdc, 60W max

Battery back-up

1.2Ah batteries fitted internally

Operating temperature

-10°C to +50°C (14°F to +122°F)

Inputs

Gas    One 2 or 3 wire 4-20mA gas detector (sink or source) or mV pellistor flammable gas detector

One to four 2 or 3 wire 4-20mA gas detectors (sink or source) or mV pellistor flammable gas detectors

Fire     One loop of up to 20 conventional smoke/heat detectors or manual call points, or one flame detector (4-20mA or digital contact signal)

One to four loops of up to 20 conventional smoke/heat detectors or manual call points, or one to four flame detectors

ESU    For use with one Crowcon ESU fan

Remote inhibit/retest    Via normally open contact

Outputs

Relays DPCO contacts rated 250Vac 8A
Low alarm. High alarm. Fault. Alarm relays can be set for rising or falling alarms. Hysteresis can be adjusted on low alarms

Low alarm and high alarm per channel plus common low, high and fault. Alarm relays can be set for rising or falling alarms. Hysteresis can be adjusted on low alarms

A/V alarm drive    12Vdc or 24Vdc 650mA max. drive. Suitable for +ve or -ve switched alarms

Analogue     4-20mA (current source, max. loop resistance 700?) or 1-5Vdc (min. load 50k? )

4-20mA for each channel (current source, max. loop resistance 700?) or 1-5Vdc (min. load 50k?)

Serial link    RS-485 Modbus RTU for monitoring and control via DCS/SCADA/PLC systems

Communications port

Optional port for PC configuration and event log upload

Event logging*

Time-stamped log of up to 300 alarms, fault or system intervention activities

Panel indication

LCD back-lit display shows gas level (in ppb, ppm, % volume or % LEL units), and scrolling alpha-numeric status indication.
LED’s for Alarm, Fault, Power and Warning. Integral 85dB sounder (at 10cm)

Approvals

EMC: EN50270, EN60945, FCC: CFR 47 Part 15; ICES – 003
ATEX: May be used in a non-hazardous area as part of Intrinsically Safe System conforming to EN60079-25 Baseefa 05Y0090/1

Functional safety

Validated to IEC61508
SIL2
