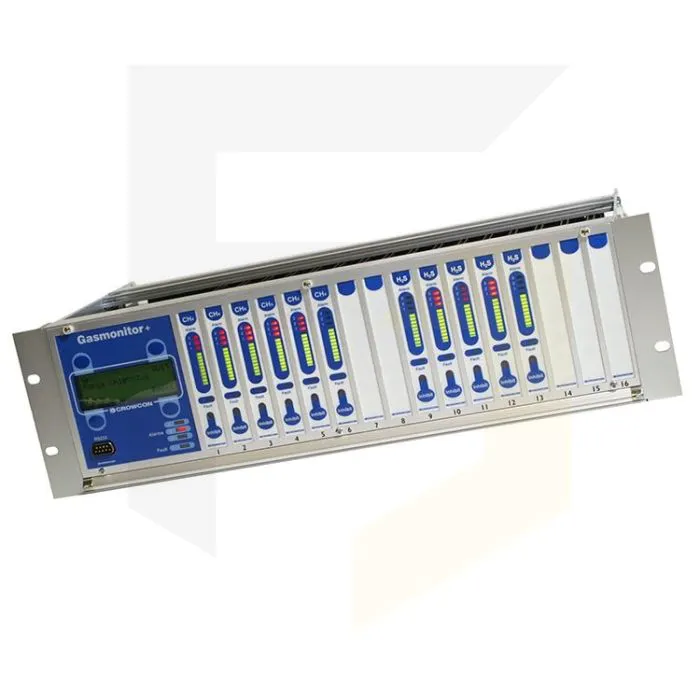

Crowcon Gasmonitor Plus 19" Rack Control System (2 Racks)
Gasmonitor Plus is Crowcon’s flexible 19″ rack-based control system. This microprocessor-controlled unit is used throughout the world, both onshore and offshore. It is capable of monitoring up to 16 gas detectors or 32 fire zones per rack.
Racks can be supplied separately, or built into wall mounting or floor standing enclosure.
- System is limitlessly expandable
- Optional relay modules
- Modular construction – ultimate customisation and minimal wiring
- Common alarm LEDs on the display card
- One universal gas card
Size |
483 x 133 x 294 mm (19.0 x 5.25 x 11.5 ins) |
Weight |
9.5 kg (21 lbs) |
Enclosure material |
Aluminium alloy |
Mounting |
Rack mounted (3u format). Wall mounted and floor standing cabinets are optional, dimensions on request. |
Channels |
16 per rack |
Operating temperature |
0°C to +50°C (32°F to +122°F) |
Humidity |
0-95% non-condensing |
Inputs |
Gas 2 or 3 wire 4-20mA (sink or source), or mV bridge |
Fire – smoke & heat detectors, manual call-points Maximum of 32 loopes per rack (ie 16 twin zone fire modules) |
|
Outputs |
Analogue 16 x 4-20mA, max. load 960 Ohms or 1-5 V, min. load 100 Ohms |
External audible/visual alarm drive Powered 24 V dc, max load up to 200mA for each alarm level. |
|
Relays |
Type Up to 84 DPCO contacts rated 5 A @ 250 V ac, non-inductive load |
Assignment – Common Alarm 1, Alarm 2, Alarm 3, Fault |
|
Digital communications |
With PanelsPro or SetGMon only |
Event logging |
Built-in datalogger – data available via communication links with PanelsPro or SetGMon only |
Panel indication |
Channel number: 4 lines x 20 characters |
Alarm indication |
As standard: 3 individual & 3 common alarms (red LED); Fault – individual & common fault (yellow LED); Inhibit – individual inhibit (yellow LED) |
Power |
AC mains: 100 – 260 V ac 50/60 Hz external |
Approvals |
Low voltage directive – EN61010-1 |
