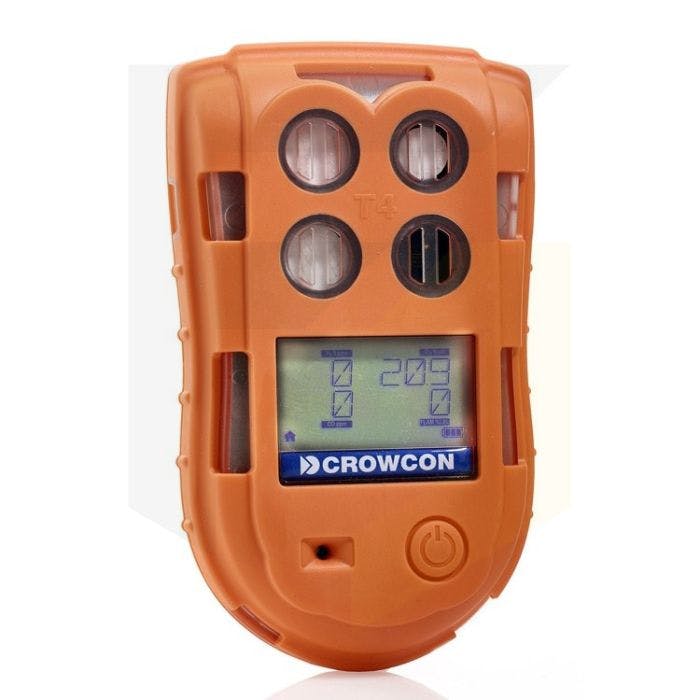

Crowcon T4 Multi 4-Gas Detector with Cradle Charger

PRODUCT CODE:
CROWCON-T4-MULTI-GAS-DETECTOR

The Crowcon T4 is a multi-gas detector capable of detecting levels of LEL, H2S, CO and O2. It comes with an ATEX approval and a cradle charger.

Visit our YouTube channel for handy Crowcon T4 video tutorials and guides.

Loading...
£320.00
Final product price inc VAT

Additional services

  • £50.00
Gas detection equipment requires service and calibration every 6 months. In acknowledgement of this we are offering you your first calibration at a special rate.

Product description

Crowcon T4 Multi 4-Gas Detector with Cradle Charger

The T4 multi gas detector from Crowcon is a portable 4-gas monitor for detecting LEL, O2, CO and H2S.  The gas monitor is ideal for personal monitoring and portable safety applications.  All options here come with a cradle charger.

The rugged housing of the Crowcon T4 is made of an anti-shock rubber and its ATEX-approval means it can be used in hazardous environments.  The 18-hour battery also allows it to be safely used for a full working shift, or longer.  Crowcon has also drop tested the T4 to 4m on concrete.

Other advantages of using the Crowcon T4 multi gas detector is it’s clear, backlit display, compliance indicator and its single button operation.  The compliance indicator flashes green if the unit is working safely and red if there’s any attention required.

Key Features

  • Dedicated sensor for each gas
  • Fast measurement
  • Triple alarm system (audible, visual and vibrating)
  • TWA resume function – ensures toxic gas exposure is calculated over an entire shift (even if the unit is switched off or is travelling to a different site)
  • IP65/67 rated – water and dust resistant
  • Display can flip 180° for easy viewing
Specification

Measurement Range

Oxygen   (O2) – 0-30% vol.
Flammable   – 0-100% LEL
Hydrogen   Sulphide (H2S) – 0-100ppm
Carbon   Monoxide (CO) - 0-1000ppm

Measurement Resolution

Oxygen (O2) - 0.1% vol.
Flammable – 1% LEL
Hydrogen   Sulphide (H2S) - 1ppm
Carbon   Monoxide (CO) – 1ppm

Size

135 x 80 x 35mm (5.3 x 3.1 x 1.4in)

Weight

282g (9.9oz)

Data logging

Data –   130h data @ 10s intervals
Events   – 3500

Battery

Rechargeable   Li-ion (up to 18 hr runtime/5.5hr charge)

Operating temp range

-20°C to +55°C (-4°F to +131°F)

Humidity

10-95% RH+ @ 40°X non-condensing

Certification

EMC – Directive 2014/30/EU

Compliance




ATEX



Ex II 2 G Ex d ia IIC T4 Gb Tamb -20°C to +55°C



IECEx



Ex d ia IIC T4 Gb Tamb -20°C to +55°C



UL



Use in hazardous locations Class 1 Div 1 groups A,B,C,D only as to intrinsic safety



INMETRO

MED

Ex d ia IIC T4 Ga Tamb -20°C to +55°C



Accessories

Integrated Alligator clip and tethering loop
Bump/Calibration plate
