PRODUCT CODE
CROWCON-T4X

The T4X is Crowcon's latest gas monitor on the market and uses next-generation MPS and Long-Life O2 sensor technologies.

Read our Crowcon T4X blog to learn more about the monitor and its capabilities.

* Required Fields

    £602.40 £502.00



    Additional services

    • £50.00
    Gas detection equipment requires service and calibration every 6 months. In acknowledgement of this we are offering you your first calibration at a special rate.

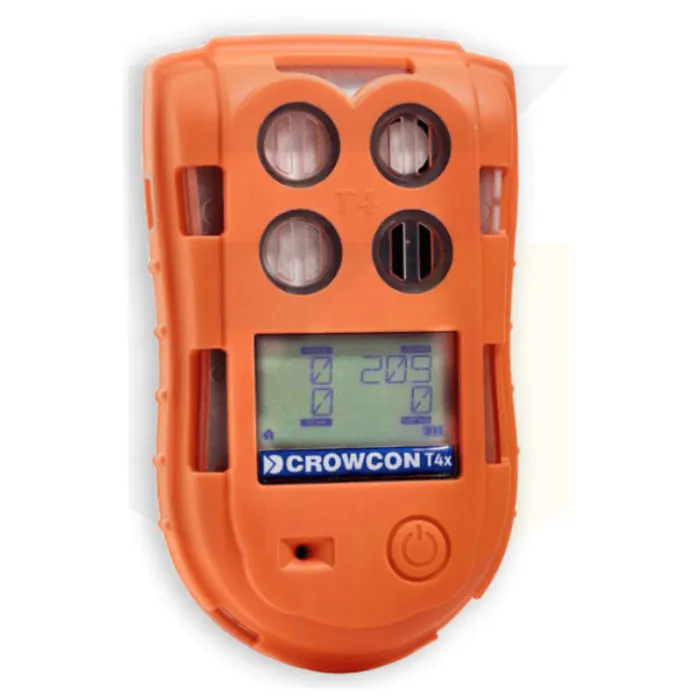

    Crowcon T4X Multi-Gas Detector

    Crowcon T4x Multi-Gas Detector

    The popular T4 Multi-Gas detector from Crowcon Detection Instruments Ltd has upgraded its sensor technology. The T4 (now T4x) portable gas detector's capacity has been considerably enhanced with the addition of new MPSTM and LLO2 sensors and a dual hazardous sensor.

    T4x reduces the number of sensor replacements by 75% and improves sensor reliability, allowing operations teams to focus on more value-added duties. T4x assists health and safety managers by eliminating the requirement for each device to be calibrated for the relevant flammable gas because it accurately detects 19 at once, ensuring compliance across the site.

    Being poison resistant and with battery life doubled, operators are more likely to never be without a device.​ T4x reduces the 5-year total cost of ownership by over 25% and saves 12g of lead per detector, making it much easier to recycle at the end of its life and better for the planet.

    Key Features
    • Extended sensor capabilities
    • Long-life O2 sensor with a 5-year warranty.
    • MPS (molecular property spectrometer) sensor technology that detects over 15 flammable gases in one monitor.
    • Dual toxic sensors (CO and H2S) with a 3 year life
    • 35+ hours of battery life, double the length of the T4
    • Ingress Protection rated IP65 and IP67, water and dust resistant
    • Crowcon Connect compatible
    • Triple alarm system
    Specifications

    Supplied with

    Integrated alligator clip and tethering loop

    Bump/Calibration plate

    Size

    W135 x H80 x D35 mm (5.3 x 3.1 x 1.4in)

    Weight

    282g (9.9oz)

    Sensors

    Gas                                          Range              Resolution

    Long-Life Oxygen (O2)          0-25% Vol.       0.1% Vol.

    Flammable (MPS)                  0-100% LEL     1% LEL

    Hydrogen sulphide (H2S)     0-100ppm        1ppm

    Carbon monoxide (CO)        0-1000ppm      1ppm

    Durability

    Drop tested to 4m onto concrete

    Alarms

    Audible >95dB
    Bright red/blue visual LEDs
    Integrated vibrating alert

    Display

    Front mounted, backlit. Optional 180° flip for easy viewing whilst worn

    Logging

    130 hours of data logging; Up to 3500 events

    Battery

    Rechargeable Li-ion
    18 hour typical runtime
    5.5 hour recharge

    Operating temperature

    -20°C to +55°C (-4°F to +131°F)*

    Humidity

    10 to 95% RH @ 40°C non-condensing

    Ingress protection

    Independently tested to IP65 and IP67

    Approvals

    ATEX and UKEx II 1 G Ex ia IIC T4 Ga -20°C ≤ Ta ≤ +55°C (T4 Type 1) II 2
    G Ex db ia IIC T4 Gb Tamb -20°C to +55°C (T4 Type 2)

    IECEx Ex ia IIC T4 Ga -20°C ≤ Ta ≤ +55°C (T4 Type 1) Ex db ia IIC
    T4 Gb -20°C ≤ Ta ≤ +55°C (T4 Type 2)

    UL Use in hazardous locations Class 1 Div 1 groups
    A,B,C,D only as to intrinsic safety

    INMETRO Ex db ia IIC T4 Gb -20 °C ≤ Ta ≤ +55

    °CMED Directive 2014/90/EU

    Interface

    USB communications lead

    Crowcon Connect Compatible?

    Yes

    Accessories

    (available separately)

    Single unit cradle charger, 10 unit cradle charger; Vehicle charger
    Clip-on filter plate for sensor protection in dusty environments
    I-Test automated bump and calibration station
