PRODUCT CODE
CROWCON-TRIPLE-PLUS-DETECTOR

Detect multi gases with the Crowcon Triple Plus+ multi gas detector. Choose from pumped or diffusion units with sensors for LEL, O2, CO and H2S. The units come with a charger.  View the Crowcon portables range.

Please note this product is currently discontinued.

* Required Fields

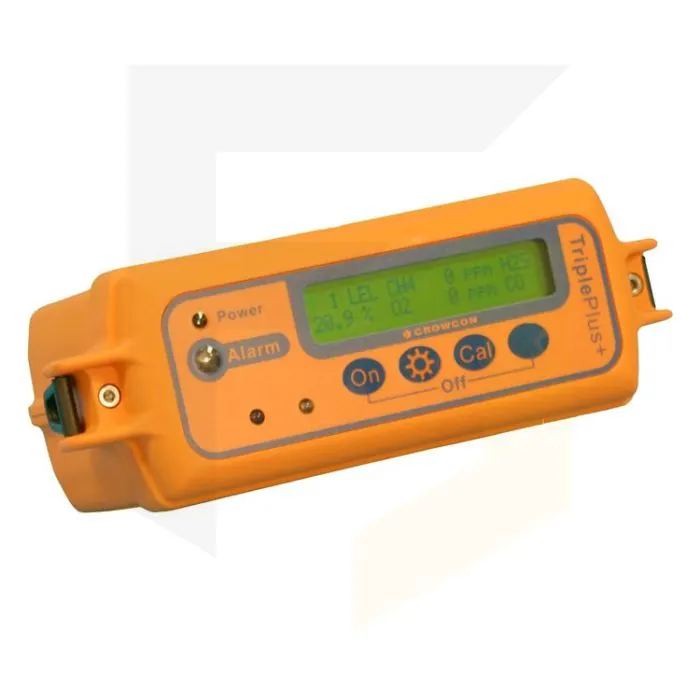

Crowcon Triple Plus+ Multi Gas Detector

Crowcon Triple Plus+ Multi Gas Detector

The Crowcon Triple Plus+ is a multi gas detector designed to protect against toxic, oxygen and flammable gases.  It features CH4% LEL, O2, H2S and CO sensors and is intrinsically safe. Pumped and diffusion versions are available and each comes with a charger.

Please note: The Crowcon Triple Plus+ is still available for purchase. However, Crowcon advises that due to market suitability - The T4, Gas-Pro and Gas-Pro TK should be offered in preference to the Triple Plus+. If you require the Triple Plus+ please contact our sales team on 0141 771 7749.

One of the main advantages of using the Crowcon Triple Plus+ is its fleet management capabilities.  The selection of flammable gas correction factors integrated in the unit means one unit can be used in several locations in a site.  It also annotates the data file with user names and site names which can be selected from a pre-configured file.

The Triple Plus+ multi gas monitor is suitable for various applications in the oil and gas, chemical, utility and manufacturing industries.  It has a double alarm system which ensures the user knows when gas is present in any environment.  It has an audible 85db alarm and vivid LED lights on the top of the unit.  Other compliance features include a confidence blip, a low battery warning and TWA warning.

Key Features
  • Rugged housing is made from Triax meaning it won’t crack or shatter when dropped
  • Full buoyancy, helps to recover the unit from water
  • Time datalogging with 100-hour capacity
  • IR option available – speak to our sales team for more information
Specifications

Measurement Range

Oxygen   (O2) – 0-25% vol.
Flammable   – 0-100% LEL
Hydrogen   Sulphide (H2S) – 0-50ppm
Carbon   Monoxide (CO) - 0-500ppm

Typical UK Alarm

Oxygen (O2) 19/23%
Flammable – 20% LEL
Hydrogen Sulphide (H2S) - 5ppm
Carbon Monoxide (CO) – 30ppm

Size

118 x 200 x 73mm (4.65 x 7.8 x 2.9ins)

Weight

880g (31oz)

Approval Codes

Europe: ATEX II 2G: Ex ib d IIC T4 Gb
North America: Class I Division 1, Groups A, B, C and D

Safety standards

Europe: EN50014, EN50020, 94/9/EC, EN50081-2,   EN50270, EN50082-2
North America: UL 913, CSA 22.2 No.157 (SFA3009 Triple Plus+)

Typical response times

Methane 20s (Triple Plus+) IR 20s (Triple Plus+IR),   Oxygen 10s, typical Toxic Gas 20s

Expected sensor life

Flammable: 5 years (Triple Plus+), IR: 5 years   (Triple Plus+ IR) Toxic: 3 years, Oxygen: 2 years

LIBRA

Li-Ion rechargeable battery pack
Battery Life: standard instrument >12 hours
Battery Life: pumped instrument >10 hours

Battery Charging

Dual rate drop-in charger
Dual rate charger/PC interface

Electric pump

Optional internal pump with on/off button

Operating temperature range

-20°C to +50°C (-4°F to 122°F)

Humidity

20–90% RH non-condensing

PC interface

RS232 connection via the interface charger
RS232/USB converter available
Portables PC also controls datalogging, giving the   user a choice of direct graphical output or a datafile
compatible with all leading spreadsheets

Calibration

Triple Plus+ can be routinely calibrated using   Portables PC software or Crowcon Checkbox IMH

Standard accessories

Manual, shoulder strap and allen keys (pumped units include additional flow plate, 2m hose and pouch)

Optional Accessories

Leather carry case, straight and telescopic probes, water trap, baffle plate, aspirator, calibration flow adaptor and hose
