Drager Aerotest Simultan HP

PRODUCT CODE:
6525951
Drager Aerotest Simultan HP
£5,480.54 inc VAT
£4,567.12
Loading...

Product description

Drager Aerotest Simultan HP

The Aerotest Simultan HP is a breathing air quality monitor from Drager Safety.  This particular air quality set determines the quality of air in high-pressure applications. See the specifications table on the right to see what’s included in this set.

The Aerotest Simultan can be used alongside the Drager Oil Impactor to check the quality of breathing air from a compressor or a compressed air cylinder.  The Oil Impactor is designed to detect oil aerosols in compressed air in a system that enables the measurement of synthetic oils independent of oil type and viscosity.

The Drager Aerotest range is able to be used with Drager Gas Detection Tubes (click here to view the full range of Aerotest tubes).  This ensures measurements are quickly and reliably taken to detect toxic gases.

Key Features

  • Comes in a handy, robust case
  • Enables detection of potentially harmful substances such as CO, CO2, water vapour and oil
  • Values can be determined individually or simultaneously
  • Degree of contaminated breathing air is displayed within five minutes
  • Measuring instrument can be connected via a G 5/8 connector to high-pressure air network
Specification
Dimensions [L x W x H, mm] 350 x 300 x 85
Weight (kg) approx. 3.0
Supply Pressure [bar] 200 / 300
Connection G 5/8
Flow [L/min] 0.2 and 4.0

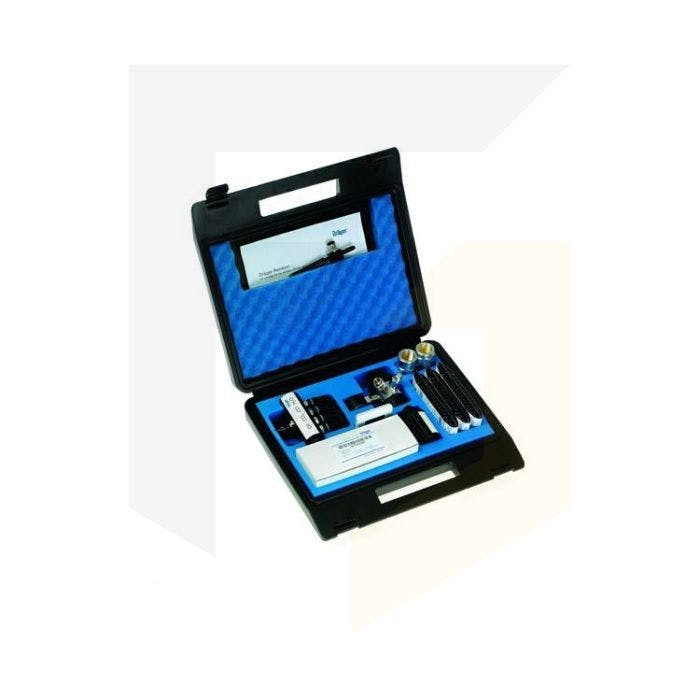

What's Included?
  • Reducer with manual connection
  • Connecting adapter for 4 Drager Tubes
  • Package (10 items) for Drager Oil Impactor
  • Adapter 200 bar & Adapter 300 bar
  • Timer
  • Tube opener (Drager TO 7000)
  • Bubble test hose
  • Package (5 items) Sinter filters
  • Set (10 items) Drager Tubes Carbon Dioxide 100/a-P
  • Set (10 items) Drager Tubes Carbon Monoxide 5/a-P
  • Set (10 items) Drager Tubes Water Vapor 20/a-P
  • Instructions for use
  • Transport case
