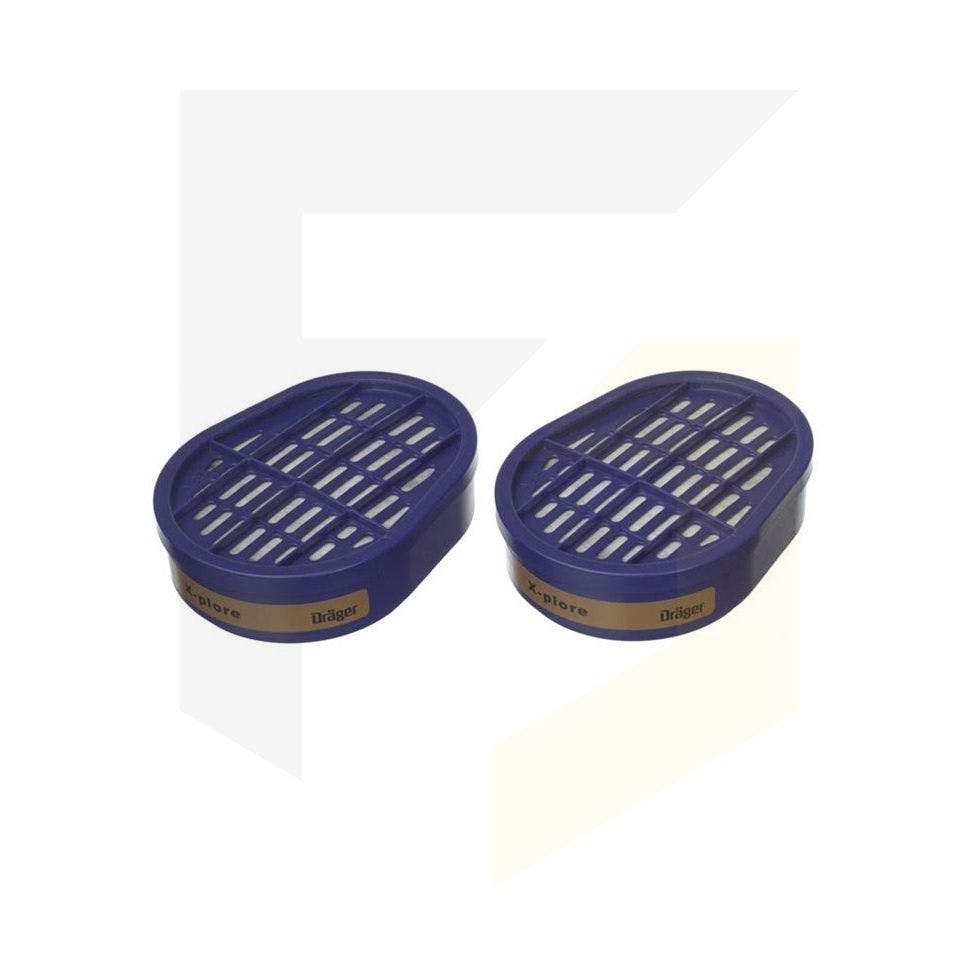

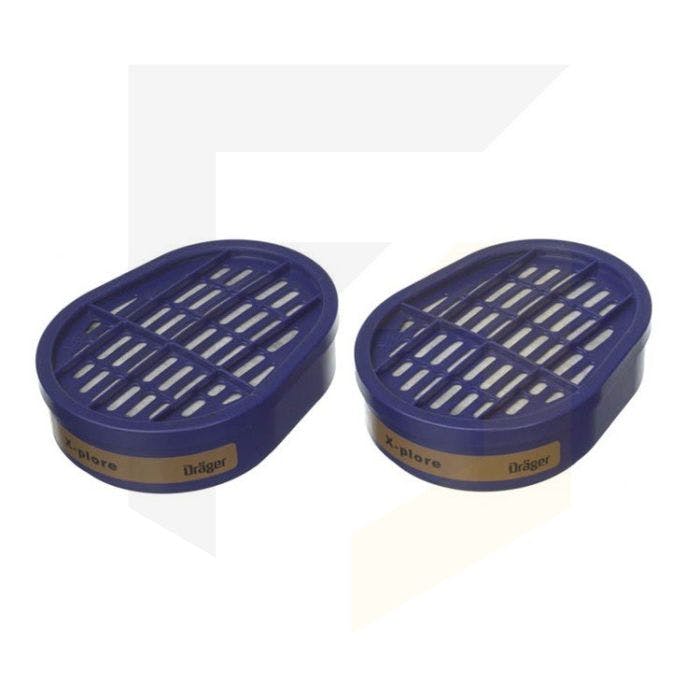

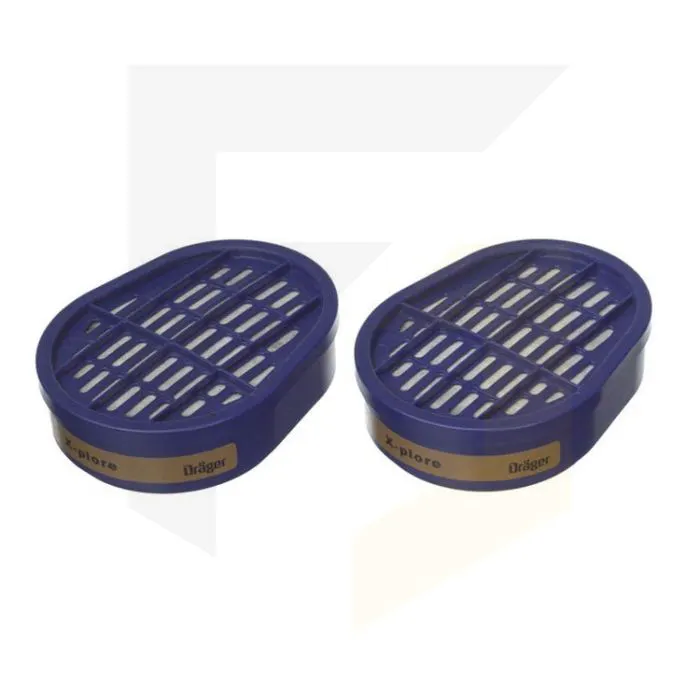

Drager Bayonet A2 Gas Filters, EN14387, pack of 10 pairs
Drager A2 bayonet filters protect against a range of harmful substances including class 2 organic gases and vapours (of boiling point >65°C). They can be used in an extensive range of applications when combined with half and full face masks. This includes the X-plore 3300, 3500 and 5500.
Please note: the filters come in a pack containing 20 pieces (10 pairs).
It’s important to note that these filters are for gas only and are not suitable for filtering out particulates. However, they can be converted using a particle or pad and adapter in order to make a combination filter.
Gas filters have a shelf life of 6 years from the date of product. They are also packaged in pairs to ensure optimal protection of any unused filters.
- Blue ABS housing on the filters makes them robust
- Approximate weight is 90g per piece
- Packaged in pairs to ensure optimal protection until required for use
Colour Code | Filter Type | Contaminants present |
AX 1) |
Gases and vapours of organic compounds with boiling point < 65 °C | |
A |
Gases and vapours of organic compounds with boiling point > 65 °C | |
B |
Inorganic gases and vapours, e.g. chlorine, hydrogen sulphide, hydrogen cyanide | |
E |
Sulphur dioxide, hydrogen chloride | |
K |
Ammonia and organic Ammonia derivates | |
CO 2) |
Carbon monoxide |
|
Hg 3) |
Mercury vapour |
|
NO 4) |
Nitrous Gases including nitrogen monoxide |
|
P |
Particles | |
Reactor5) |
Radioactive iodine including radioactive methyl iodide | |
1) May only be used as supplied from factory. Reuse and use against gas-compounds is absolutely impermissible 2) One time use only. Dispose after use. Special guidelines according to local regulations apply 3) Only use for a max of 50 hours according to EN 14387 4) One time use only. Dispose after use 5) Special guidelines according to local regulations apply |
