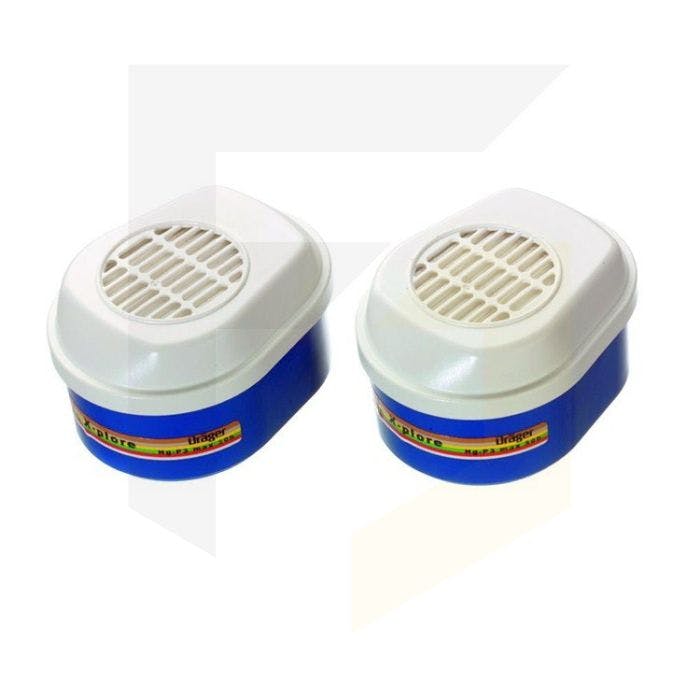

Drager Bayonet A2B2E2K2HgP3 R D, Combination Cartridge, EN14387, pack of 5 pairs
Drager offer the ABEK P3 filter range as a means of protection from both toxic gases and vapours and also particles. This particular filter is an ABEK Class 2 Hg P3 R D filter which protects against a wide range of gases and particles. They come in a pack of 5 pairs. See the spec table on the right for more information on the gases. Class 'P3' indicates that this filter is 99.95% efficient in filtering out dust and particulates.
Please note: Hg filters can only be used for a maximum of 50 hours according to EN 14387.
These particular filters are suitable for twin filtered masks only. This includes the X-plore 3300 and 3500 half masks and also the X-plore 5500 full face mask. The filters are packaged in a pair which make them both economical and protects unused filters.
The white housing on the filters makes them identifiable as being particulate filters. The shelf life of particulate filters (from date of production) is 12 years.
- Successfully passed a dolomite test
- Can be used for protection in a wide range of applications
- Easy to use and attach in a top-down position
- Maximum protection provided due to the individual packaging
- CE-certified (EN 14387, EN 143:2000/A1:2006)
- Australian Standard AS /NZS 1716 certified (SAI Global)
Colour Code | Filter Type | Contaminants present |
AX 1) |
Gases and vapours of organic compounds with boiling point < 65 °C | |
A |
Gases and vapours of organic compounds with boiling point > 65 °C | |
B |
Inorganic gases and vapours, e.g. chlorine, hydrogen sulphide, hydrogen cyanide | |
E |
Sulphur dioxide, hydrogen chloride | |
K |
Ammonia and organic Ammonia derivates | |
CO 2) |
Carbon monoxide |
|
Hg 3) |
Mercury vapour |
|
NO 4) |
Nitrous Gases including nitrogen monoxide |
|
P |
Particles | |
Reactor5) |
Radioactive iodine including radioactive methyl iodide | |
1) May only be used as supplied from factory. Reuse and use against gas-compounds is absolutely impermissible 2) One time use only. Dispose after use. Special guidelines according to local regulations apply 3) Only use for a max of 50 hours according to EN 14387 4) One time use only. Dispose after use 5) Special guidelines according to local regulations apply |
