Drager Bodyguard 1000 (key version)
Drager Bodyguard 1000 (key version)

Product Code - 3358685

exc VAT £203.46 inc VAT £244.15
Description / Features / Spec

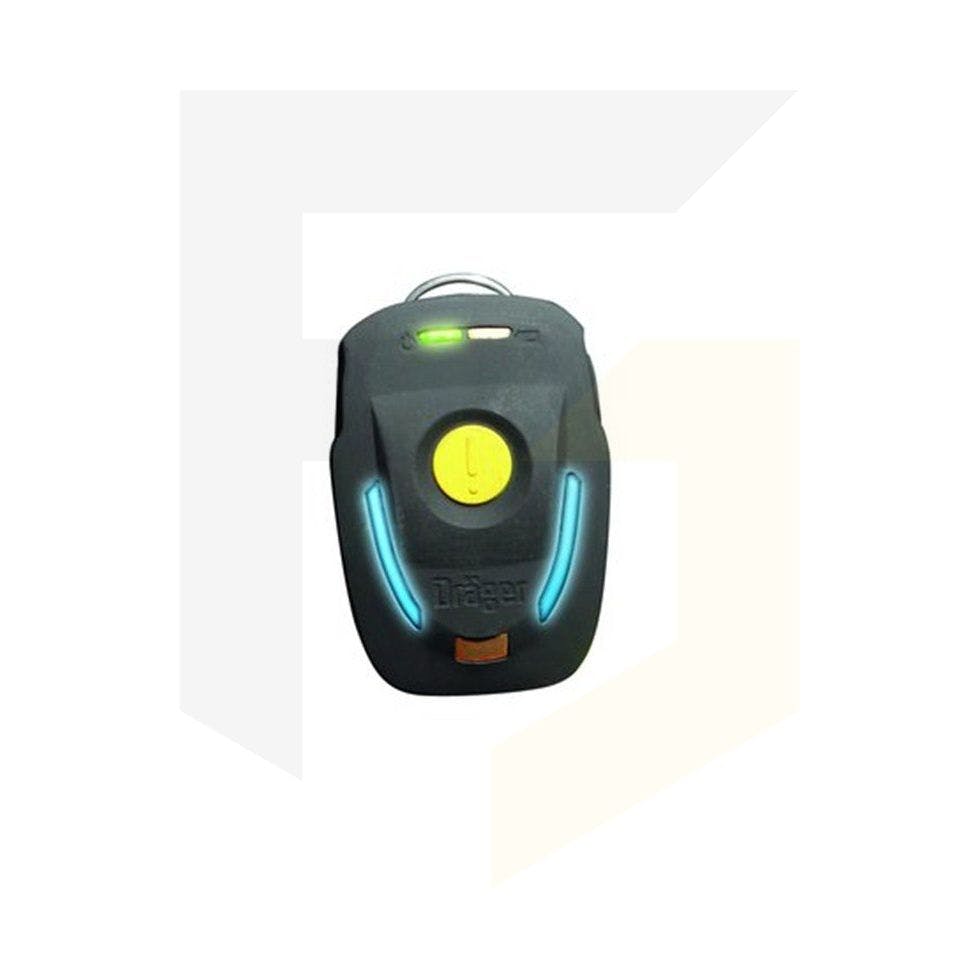

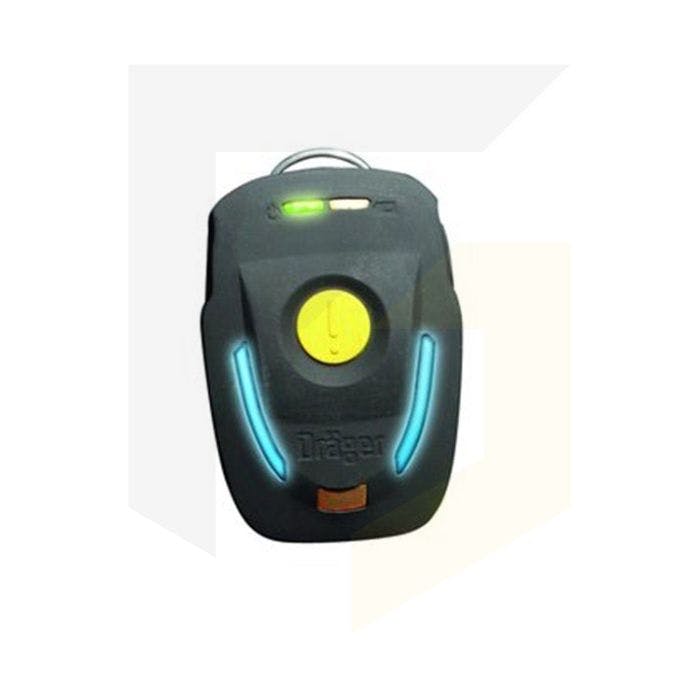

Drager Bodyguard 1000 (key version), Personal Alert Safety System (PASS)

The Drager Bodyguard 1000 is designed to protect lives by alerting the team when a wearer becomes motionless or distressed.

This PASS device is designed to be used with any SCBA and can be worn with or without breathing apparatus.  The user can be quickly located when in trouble with this innovative product, due to its clear, twin fascia warning lights and distinctive sonic alarms.  This is achieved by utilising proven technology from the Drager Bodyguard 7000, together with a new and innovative signal design

The rugged design of the Drager Bodyguard 1000 means the device will perform reliably no matter how extreme the environment is.  It is watertight according to IP 67 standards and is designed for use in temperatures ranging from -30 °C up to 60 °C.

A straight forward push button function ensures simple operation of this PASS device even when wearing gloves.  Upon start-up the unit will perform an automatic full ‘self check’.  There is no risk of the unit being accidently switched off during use due to the option of tally insertion or two-button push, depending on the operating mode.

The Drager Bodyguard 1000 is free of periodic maintenance, with only the battery to replace when required.  There is an optional alligator clip or securing clam available to use with this PASS device which can be quickly and securely fitted to any SCBA, in any position, whether at the shoulder, waist or backplate.


Key Features

  •  Tough, rugged design
  • Simple in use, intuitive
  • Compatible with all SCBA
  • New high profile audible and visual alarms
  • Data log of incident history
  • Temperature control during operation
  • Choice of operating modes



Weight 230 g (with batteries)
Dimensions H x W x D 100 x 70 x 40 mm
Upper frequency 2900 (± 200) Hz
Alarm 102 – 112 LAeq,30s dBA
Pre-Alarm 86 – 102 LAeq,6s dBA
Battery CR123 Panasonic Lithium (2 batteries)
Operating time at least 12 months normal use (30 minutes per day in active mode)
at least 8 hours of alarm (when fully loaded)
at least 2 hours of alarm (after "battery low" alarm)
