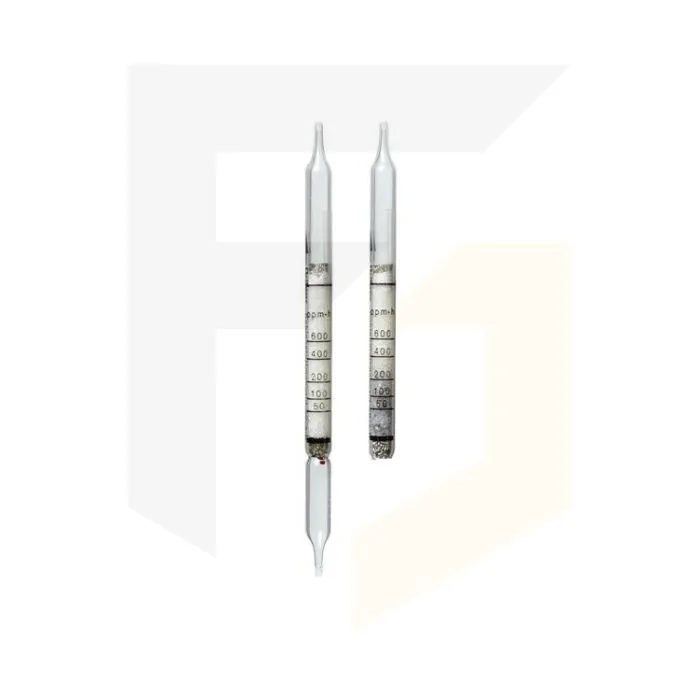

Drager Carbon Monoxide 50/a-D (50-600 ppm) Diffusion Tube
Please note this product is in phase-out, check stock levels before ordering by calling 0141 771 7749.
Detects a range of substances incl. Carbon Monoxide 50/a-D (50-600 ppm), Carbon Monoxide 10/a-D (2.5 to 100 ppm).
Note: This product has a shelf life of 2 years.
Carbon Monoxide 50/a-D (50-600 ppm)
Application Range | |
Standard Range | Measurement Time |
50 to 600 ppm | 1 h |
25 to 300 ppm | 2 h |
10 to 120 ppm | 5 h |
0.25 to 75 ppm | 8 h |
Standard Deviation | ± 20 to 25 % |
Color Change | yellow - grey black |
Ambient Operating Conditions
Temperature | 10 to 25 °C |
Absolute Humidity | 3 to 15 mg H2O / L |
Reaction Principle
CO + Pd-Salt - CO2 + Pd
Cross Sensitivity
There is no interference during a 4-hour measurement by:
100 ppm ammonia
4 ppm sulfur dioxide
25 ppm nitrogen dioxide
2,000 ppm n-butane
Following a 4-hour exposure, 20 ppm hydrogen sulfide simulates an indication of approximately 50 ppm x h carbon monoxide.
Carbon Monoxide 50/a-D (50-600 ppm)
Application Range | |
Standard Range | Measurement Time |
50 to 600 ppm | 1 h |
25 to 300 ppm | 2 h |
10 to 120 ppm | 5 h |
0.25 to 75 ppm | 8 h |
Standard Deviation | ± 20 to 25 % |
Color Change | yellow - grey black |
Ambient Operating Conditions | |
Temperature: | 10 to 25 °C |
Absolute Humidity: | 3 to 15 mg H2O / L |
Reaction Principle | |
CO + Pd-Salt --> CO2 + Pd | |
Cross Sensitivity | |
There is no interference during a 4-hour measurement by: 100 ppm ammonia Following a 4-hour exposure, 20 ppm hydrogen sulfide simulates an indication of approximately 50 ppm x h carbon monoxide. |
