Drager Chip Measurement System (Data Recording)

PRODUCT CODE:
6405300

Drager Safety's chip range is now obsolete. For alternative products, please see the Drager Accuro Pump and Tubes.

Please Note: this product is now obsolete with no replacement.

Please note this product is currently discontinued.

Loading...

Product description

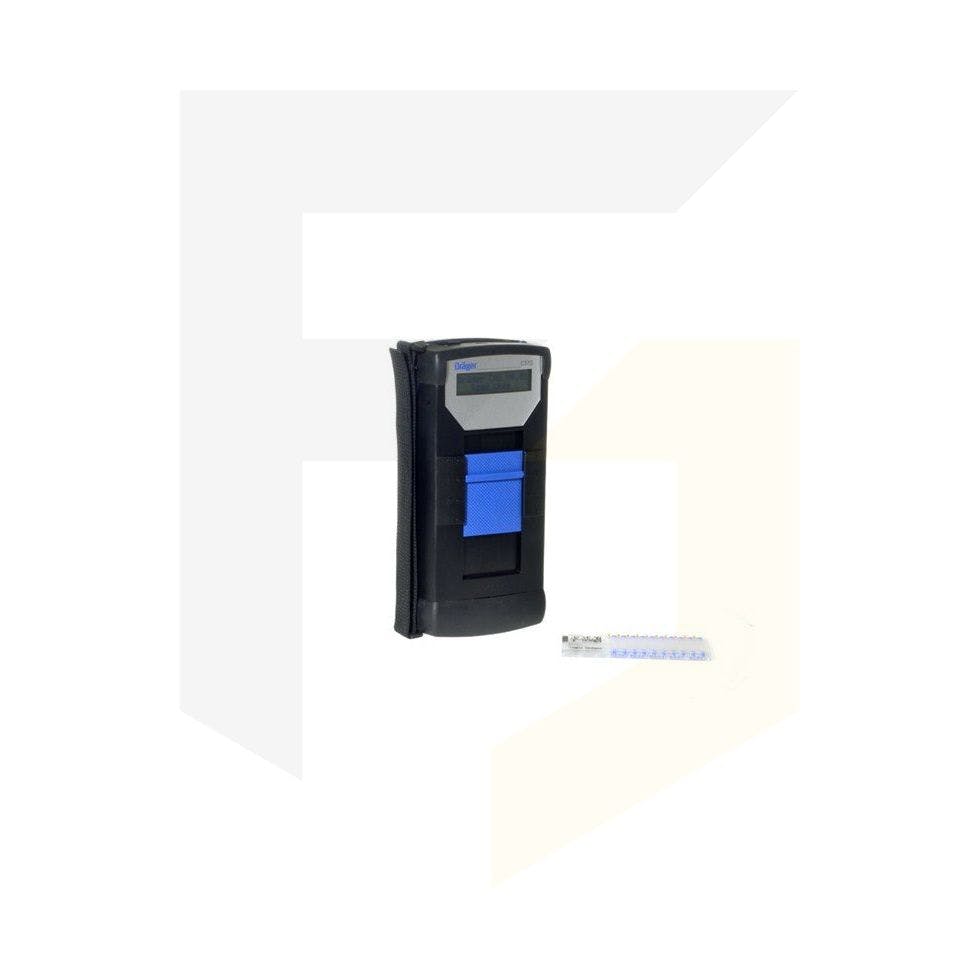

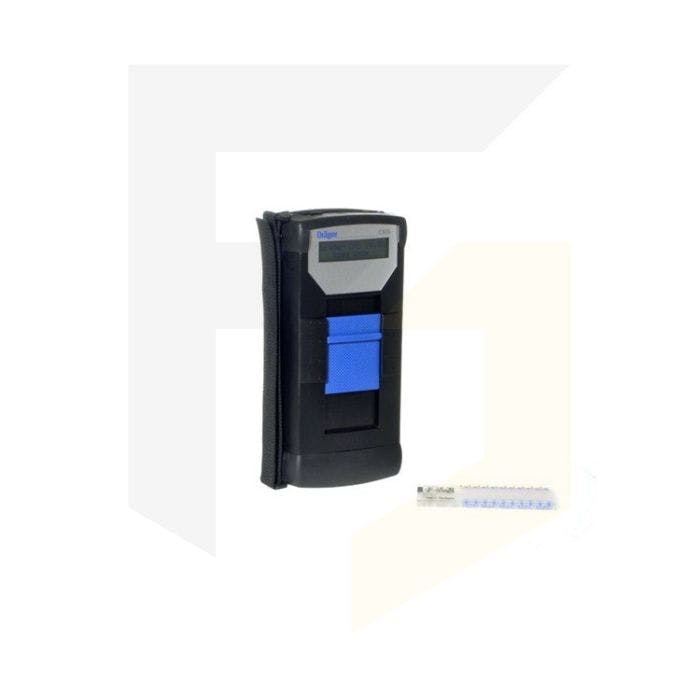

Drager Chip Measurement System (Data Recording)

Please Note: this product is now obsolete with no replacement.

Chip Measurement System from Drager (with Data Recording).

This product is accurate and reliable when measuring spot concentrations.  The portable detection system combines an electronic based analyser with substance specific chips which each contain 10 individual test/capillaries, filled with a reagent system.
The CMS analyser can store the results of 50 measurements by the DataRecorder which is integrated within the analyser, together with relevant data.

Specification
Measurement Range and Resolution

Depends on chip type used (Please see chip list)
Typical Measurement Time

30s to 5min in range of the limit values, depends on chin type and concentration of hazardous substance.
Ready for Measurement

Immediately
Poisoning Effects

Not Possible
Calibration

Not Necessary
Temperature During Operation

0 to 40°C
Temperature During Storage

-20 + 60°C (Analyser)
<25°C (Chips)



Air Pressure

700 to 1100 hPa
Humidity

0 to 95% relative humidity, non-condensing
Recording of Measured Values

System Diagnosis
Display

LCD, alphanumeric with backlighting
Menu Languages

English, German, French, Spanish
Operating Time

Approx. 450 minutes of measurement
Weight

730g (analyser with batteries)
Dimensions (LxWxH)

215mm x 105mm x 65mm




Power Supply
(4x 1.5V batteries from the following types)
  • Varta - LR 6 4006
  • Energizer - LR 6 E 91
  • Panasonic - LR 6 AM 3 AA MN 1500
  • Alkaline/Foil - (PMBC)



Approvals
  • BVS Europe Type Examination Certificate
  • Protection Class EEx ib II CT4, test no.
  • BVS 95.D.2109



  • UL USA - Class 1, Div. 1, Groups A, B, C, D, Temp. Code T4, 2P91
  • UL Canada - Class 1, Div. 1, Groups A, B, C, D, Temp. Code T4, 2P91
  • CSA Canada - Class 1, Div. 1, Groups A, B, C, D, Exia, Temp Code T4
Protection Class

IP 54 Dust and Splash Protection
