Drager Chlorine 0-20 ppm Sensor

PRODUCT CODE:: 6809165

£833.60 inc VAT

£694.67

Subscribe to back in stock notification

I have read & accept the Privacy Policy

Product description

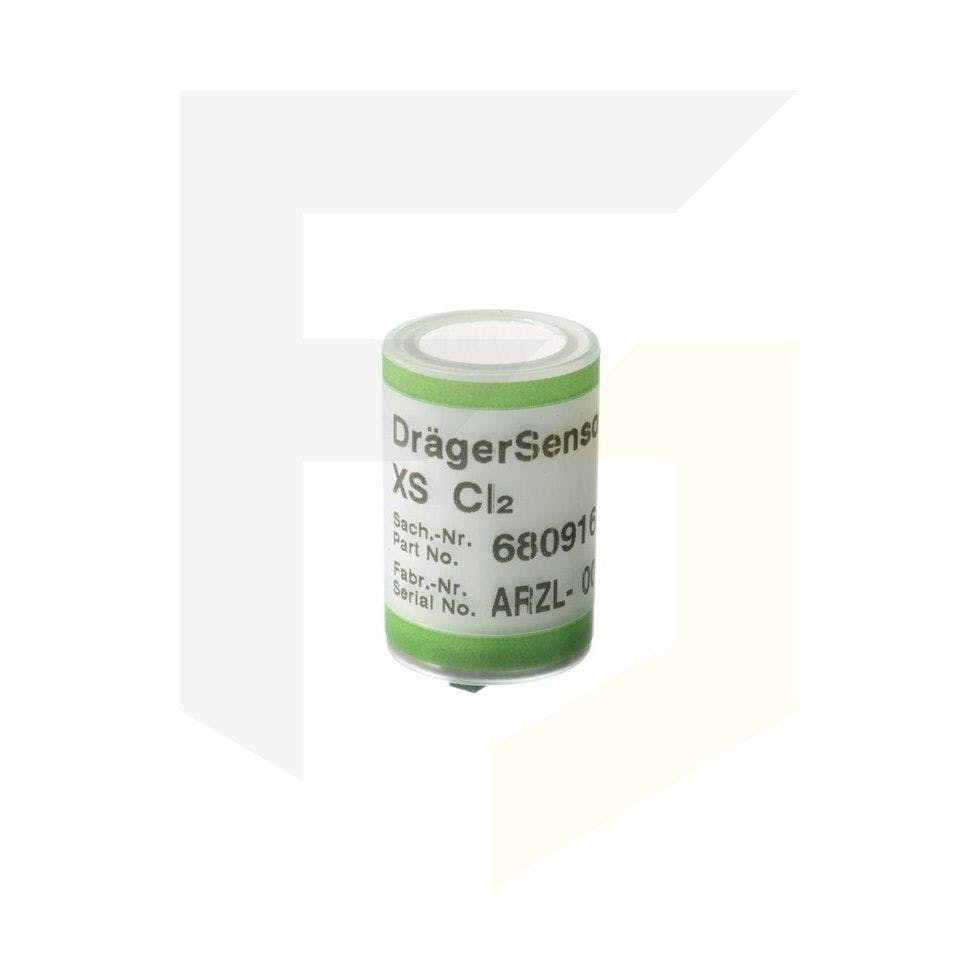

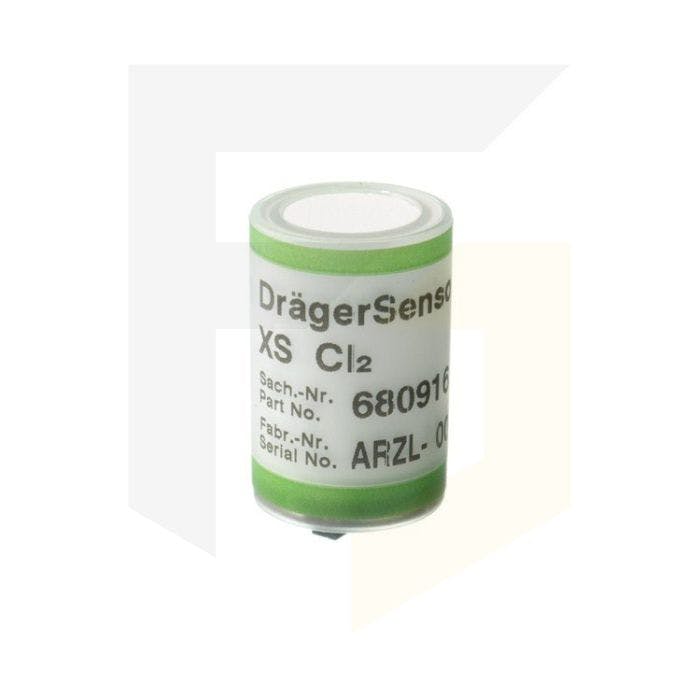

Drager Chlorine 0-20 ppm Sensor

This DragerSensor XS EC is specifically for Chlorine gas (Cl2). This particular sensor features a measurement range of 0 to 20 ppm. See the specifications table for additional measuring ranges.

It’s suitable for many different applications including food and beverage, inorganic chemicals, manufacture of plastics, measuring hazardous materials, pulp and paper, power generation and also sewage plants water treatment.

Key Features

This type of sensor is plug and play
It has a one-year guarantee and is easily replaceable

Specification

Detection Limit	0.1 ppm
Resolution	0.05 ppm
Measuring Ranges	0 to 20 ppm Cl2 (chlorine) 0 to 20 ppm F2 (fluorine) 0 to 20 ppm Br2 (bromine) 0 to 20 ppm ClO2 (chlorine dioxide)
Response Time	≤ 30 seconds at 20 °C or 68 °F (T90)
Measurement accuracy	Zero Point: ≤ ± 0.05 ppm Sensitivity: ≤ ± 2% of measured value
Long-term drift, at 20°C (68°F)	Zero Point: ≤ ± 0.2 ppm/month Sensitivity: ≤ ± 2% of measured value/month
Warm-up time:	≤ 1 hour
Ambient conditions	Temperature: (–40 to 50)°C (–40 to 122)°F Humidity: (10 to 90)% RH Pressure: (700 to 1,300) hPa
Influence of Temperature	Zero Point: ≤ ± 0.1 ppm Sensitivity: ≤ ± 5% of measured value
Influence of Humidity	Zero Point: No effect Sensitivity: ≤ ± 0.4% of measured value/% RH
Test Gas	approx. 5 to 10 ppm Cl2 or one of the other target gases: F2, Br2, ClO2
