Drager Chlorine Dioxide 0-20ppm Sensor

PRODUCT CODE:: 6811360

Please note this product is currently discontinued.

Subscribe to back in stock notification

I have read & accept the Privacy Policy

Product description

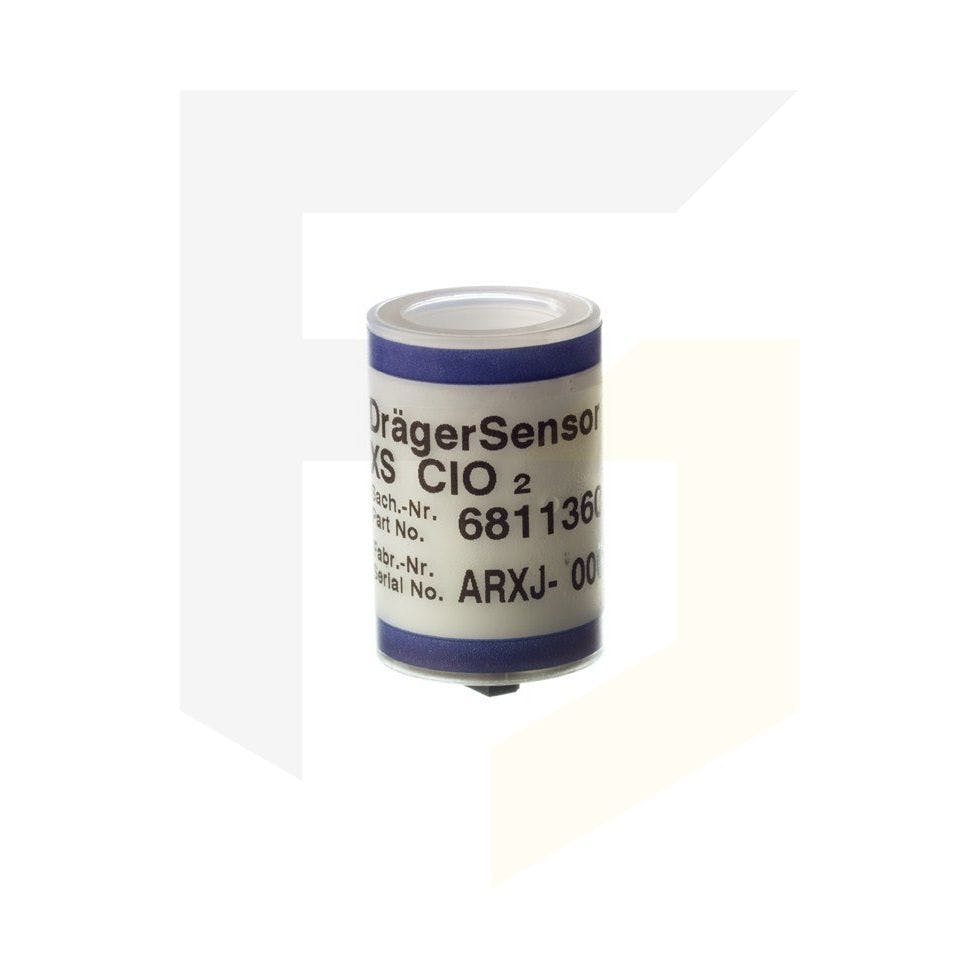

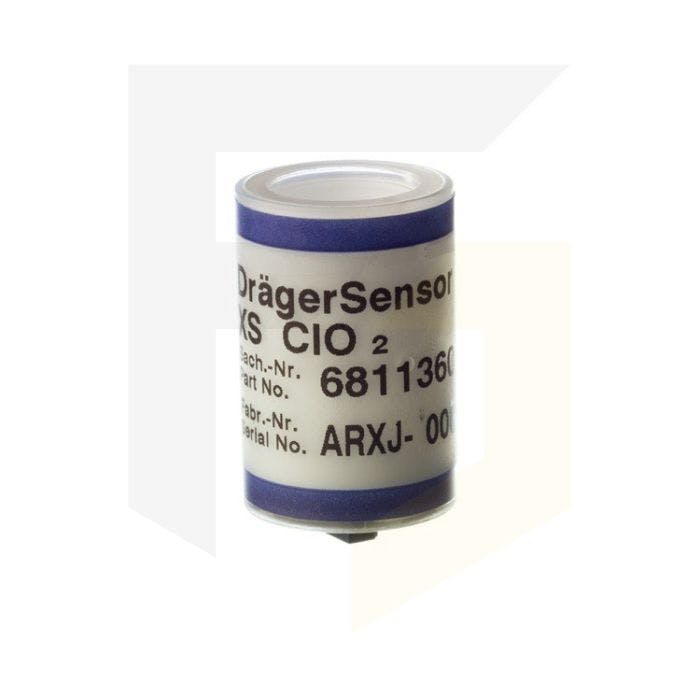

Drager Chlorine Dioxide 0-20ppm Sensor

This DragerSensor XS EC is suitable for the detection of Chlorine Dioxide (ClO2). This particular sensor is compatible with the X-am 7000 multi gas detector and can be used in industries and segments such as food and beverage, breweries, wastewater treatment, swimming pools, industrial gases, pulp and paper.

It has a measuring range of 0 to 20 ppm.

Key Features

Plug and play sensor
Comes with a 1 year guarantee
Is especially selective
Features a particularly low cross sensitivity to chlorine

Specification

Detection Limit	0.02 ppm
Resolution	0.01 ppm
Response Time	≤ 20 seconds at 20 °C or 68 °F (T50)
Measurement accuracy	Zero Point: ≤ ± 0.02 ppm Sensitivity: ≤ ± 5% of measured value
Long-term drift, at 20°C (68°F)	Zero Point: ≤ ± 0.03 ppm/year Sensitivity: ≤ ± 2% of measured value/month
Warm-up time:	≤ 12 hours
Ambient conditions	Temperature: (–20 to 50)°C (–4 to 122)°F Humidity: (10 to 90)% RH Pressure: (700 to 1,300) hPa
Influence of Temperature	Zero Point: ≤ ± 0.02 ppm Sensitivity: ≤ ± 5% of measured value
Influence of Humidity	Zero Point: No Effect Sensitivity: ≤ ± 0.1% of measured value/% RH
Test Gas	ClO2 test gas between 40% and 100% of highest figure in the set measuring range. Every time this sensor is used, a function test should be done beforehand, for which the ClO2 generator (68 11 497) can be used.
