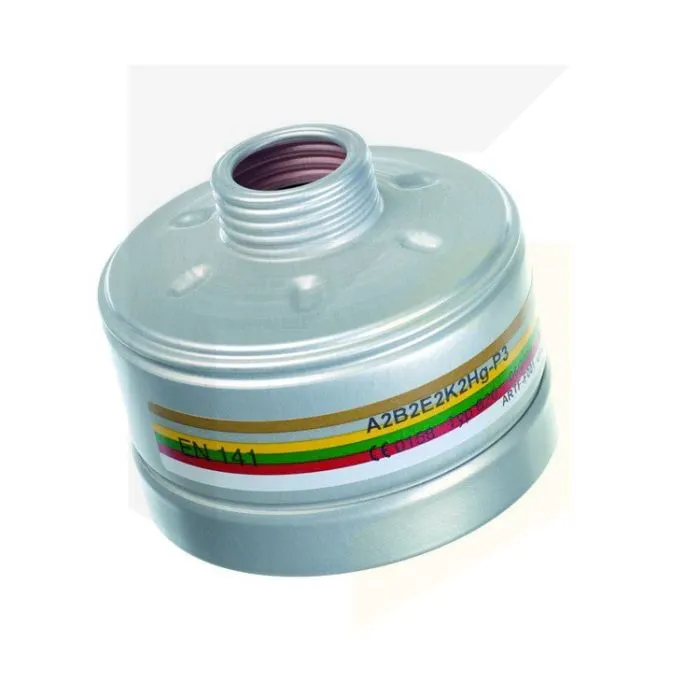

Drager Combination Filter 1140 A2B2E2K2HgP3 R D
The A2B2E2K2 Hg P3 R D filter from Drager Safety offers a high level of protection in many different industries. The filter has a standard Rd40 filter connection in accordance to EN 148-1.
Please note: Hg filters can only be used for a maximum of 50 hours according to EN14387.
It has the ability to protect against a number of gases including those of organic compounds, inorganic compounds (e.g. chlorine, hydrogen sulphide, and hydrogen cyanide), sulphur dioxide, hydrogen chloride, ammonia and also mercury vapour.
The P3 part of the filter also indicates that it is 99.95% efficient in filtering out dust and particulates.
This particular filter is also approved as a filter TH/M3 A2B2 P SL R (EN 12941/12942) for the Drager X-plore® 7500.
Drager class the A2B2E2K2 Hg P3 R D filter as being reusable or used for more than one work shift. However, the filter can expire after some usage and it’s important to recognise this when it occurs. End of service life on a filter is recognised by a noticeable taste or smell and/or an increased breathing resistance.
- Use with Drager half masks with Rd40 connection (e.g. X-plore 6300)
- Filters are low cost
- Effective and tough thanks to the aluminium housing
- Individually packaged which helps to maintain the product life
- From date of production the shelf life is 6 years
- Dolomite test passed
Colour Code | Filter Type | Contaminants present |
AX 1) |
Gases and vapours of organic compounds with boiling point < 65 °C | |
A |
Gases and vapours of organic compounds with boiling point > 65 °C | |
B |
Inorganic gases and vapours, e.g. chlorine, hydrogen sulphide, hydrogen cyanide | |
E |
Sulphur dioxide, hydrogen chloride | |
K |
Ammonia and organic Ammonia derivates | |
CO 2) |
Carbon monoxide |
|
Hg 3) |
Mercury vapour |
|
NO 4) |
Nitrous Gases including nitrogen monoxide |
|
P |
Particles | |
Reactor5) |
Radioactive iodine including radioactive methyl iodide | |
1) May only be used as supplied from factory. Reuse and use against gas-compounds is absolutely impermissible 2) One time use only. Dispose after use. Special guidelines according to local regulations apply 3) Only use for a max of 50 hours according to EN 14387 4) One time use only. Dispose after use 5) Special guidelines according to local regulations apply |
