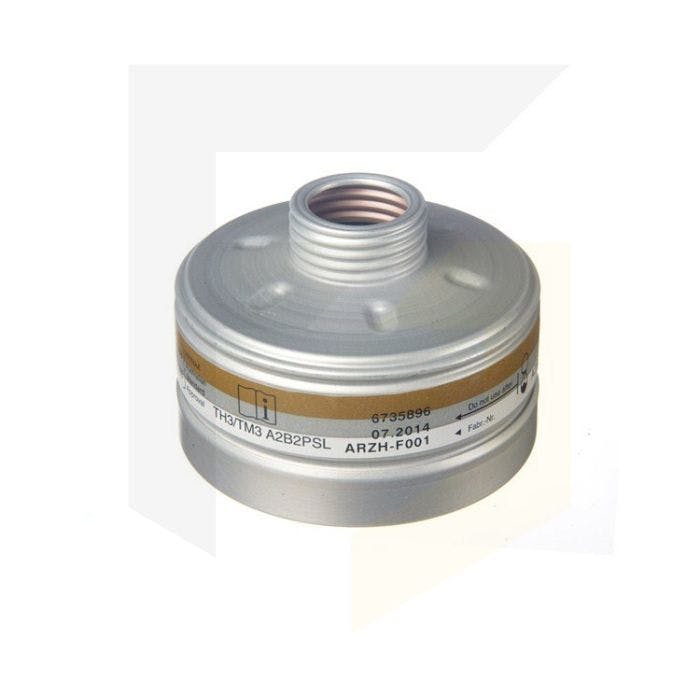

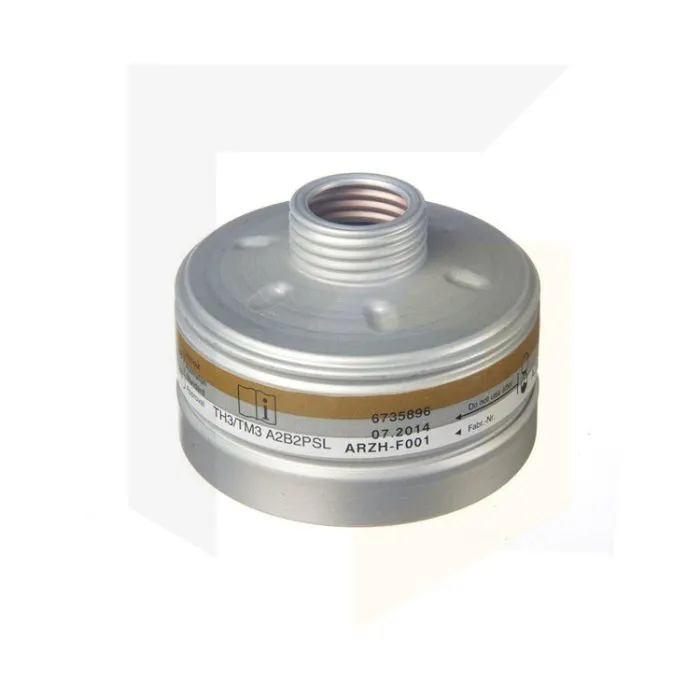

Drager Combination Filter, EN14387, 1140 A2B2P3 R D
This A2B2P3 combination filter from Drager Safety offers protection against different gases and particulates. The gas filter part protects against gases and vapours of organic compounds and also inorganic gases and vapours.
The particle part of the filter protects against dust and particulates and is up to 99.95% efficient in doing so.
It’s also approved as a filter TH/M3 A2B2 P SL R (EN 12941/12942) for the Drager X-plore® 7500. It has an Rd40 thread connection which is standard in accordance to EN 148-1.
A huge range of applications can be faced using the A2B2P3 filter and Drager half and full face masks (with Rd40 connection). See the spec table for more information on the type of gases this filter protects against.
Although the filter is classed as reusable it’s important to note that its usage depends on a number of factors. This includes your breathing resistance, the temperature and the atmosphere around you.
- Efficient and low in cost
- CE approved (EN 141:2000 re. EN 14387, EN 143:2000, EN 371) and SAI Global-approved (Australia)
- Can be used with standard thread face masks including the X-plore 6300
- Tough aluminium housing prevents filter damage
- Individual packaging ensures the filter is well protected
- Shelf life (from date of production) is 6 years
- Had passed a dolomite test
Colour Code | Filter Type | Contaminants present |
AX 1) |
Gases and vapours of organic compounds with boiling point < 65 °C | |
A |
Gases and vapours of organic compounds with boiling point > 65 °C | |
B |
Inorganic gases and vapours, e.g. chlorine, hydrogen sulphide, hydrogen cyanide | |
E |
Sulphur dioxide, hydrogen chloride | |
K |
Ammonia and organic Ammonia derivates | |
CO 2) |
Carbon monoxide |
|
Hg 3) |
Mercury vapour |
|
NO 4) |
Nitrous Gases including nitrogen monoxide |
|
P |
Particles | |
Reactor5) |
Radioactive iodine including radioactive methyl iodide | |
1) May only be used as supplied from factory. Reuse and use against gas-compounds is absolutely impermissible 2) One time use only. Dispose after use. Special guidelines according to local regulations apply 3) Only use for a max of 50 hours according to EN 14387 4) One time use only. Dispose after use 5) Special guidelines according to local regulations apply |
