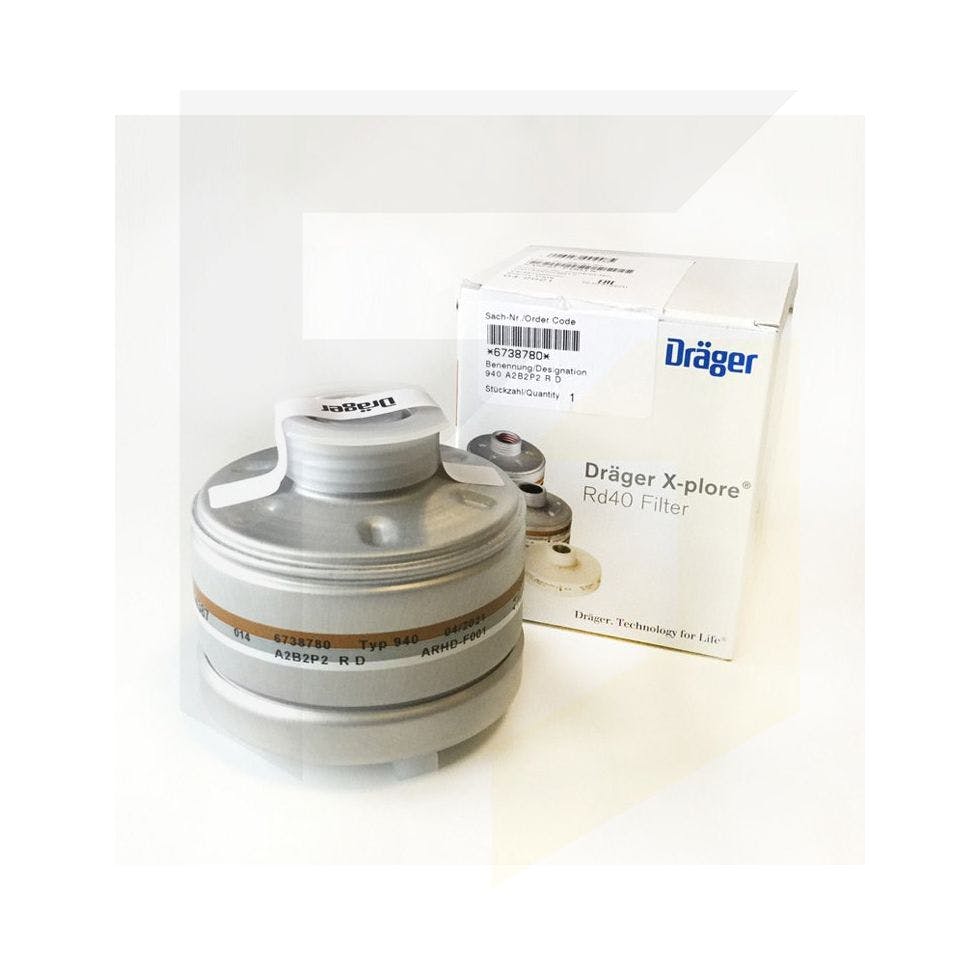

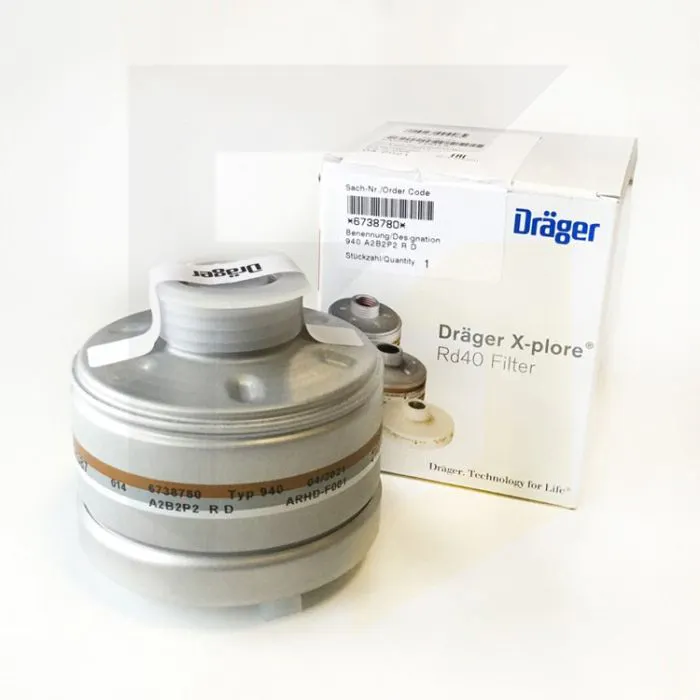

Drager Combination Filter, EN14387, 940 A2B2P2 R D
The A2B2P2 R D combination filter from Drager Safety can protect against a selection of gases and particulates. This includes gases and vapours of organic compounds, inorganic gases and vapours and class 2 particulates. See the spec table for more details.
This filter has an Rd40 thread connection which is a standard connector in accordance with EN 148-1. The X-plore Rd40 filter range offer clean, breathable air from contaminants.
The A2B2P2 R D filter can be used in more than one shift but this is wholly dependent on many factors. These factors may include the atmosphere around you, rate of breathing resistance and also the temperature.
- Low-cost but effective
- Use against a wide range of applications
- CE approved (EN 141:2000 re. EN 14387, EN 143:2000, EN 371) and SAI Global-approved (Australia)
- Use with masks with Rd40 connector such as the X-plore 6300
- Encased in an aluminium housing to ensure reliable recognition and prevent filter damage
- Individually packaged to ensure optimum protection and longer use
- Shelf life (from date of production) is 6 years
Colour Code | Filter Type | Contaminants present |
AX 1) |
Gases and vapours of organic compounds with boiling point < 65 °C | |
A |
Gases and vapours of organic compounds with boiling point > 65 °C | |
B |
Inorganic gases and vapours, e.g. chlorine, hydrogen sulphide, hydrogen cyanide | |
E |
Sulphur dioxide, hydrogen chloride | |
K |
Ammonia and organic Ammonia derivates | |
CO 2) |
Carbon monoxide |
|
Hg 3) |
Mercury vapour |
|
NO 4) |
Nitrous Gases including nitrogen monoxide |
|
P |
Particles | |
Reactor5) |
Radioactive iodine including radioactive methyl iodide | |
1) May only be used as supplied from factory. Reuse and use against gas-compounds is absolutely impermissible 2) One time use only. Dispose after use. Special guidelines according to local regulations apply 3) Only use for a max of 50 hours according to EN 14387 4) One time use only. Dispose after use 5) Special guidelines according to local regulations apply |
