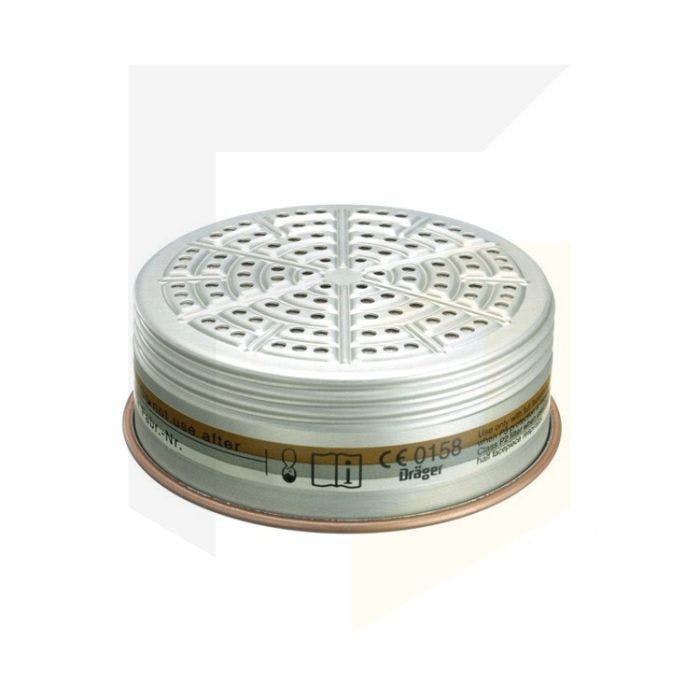

Drager, Combination Filter, EN14387, 990 A1B1P2 R D, pack of 5
The X-plore Rd90 Combination filter range can protect in a range of industries including the automobile industry and shipbuilding. Protect against class 1 gases and vapours of organic compounds with boiling point < 65 °C and class 1 inorganic gases and vapours, e.g. chlorine, hydrogen sulphide, hydrogen cyanide.
This filter also protects against class 2 particulates which means it’s 94% efficient in filtering these out. One pack contains 5 x A1B1P2 R D filters.
The Rd90 filters have a 91mm diameter connection. This is a Drager-specific connection and can be used to connect with Drager half masks in the X-Plore 4390 and 4790 range. An Rd40/90 adapter must be used if trying to use the 990 B1E1P3 Rd90 filter with an standard EN 148-1 mask. Click here to view this filter.
- Commonly used in applications such as shipbuilding, automotives and metal processing
- Aluminium housing makes it easy to identify any filter damage
- Individually packed to ensure optimal protection
- Weighs approximately 100g
- Shelf life of gas and combination filters is 6 years from date of production
Colour Code | Filter Type | Contaminants present |
AX 1) |
Gases and vapours of organic compounds with boiling point < 65 °C | |
A |
Gases and vapours of organic compounds with boiling point > 65 °C | |
B |
Inorganic gases and vapours, e.g. chlorine, hydrogen sulphide, hydrogen cyanide | |
E |
Sulphur dioxide, hydrogen chloride | |
K |
Ammonia and organic Ammonia derivates | |
CO 2) |
Carbon monoxide |
|
Hg 3) |
Mercury vapour |
|
NO 4) |
Nitrous Gases including nitrogen monoxide |
|
P |
Particles | |
Reactor5) |
Radioactive iodine including radioactive methyl iodide | |
1) May only be used as supplied from factory. Reuse and use against gas-compounds is absolutely impermissible 2) One time use only. Dispose after use. Special guidelines according to local regulations apply 3) Only use for a max of 50 hours according to EN 14387 4) One time use only. Dispose after use 5) Special guidelines according to local regulations apply |
