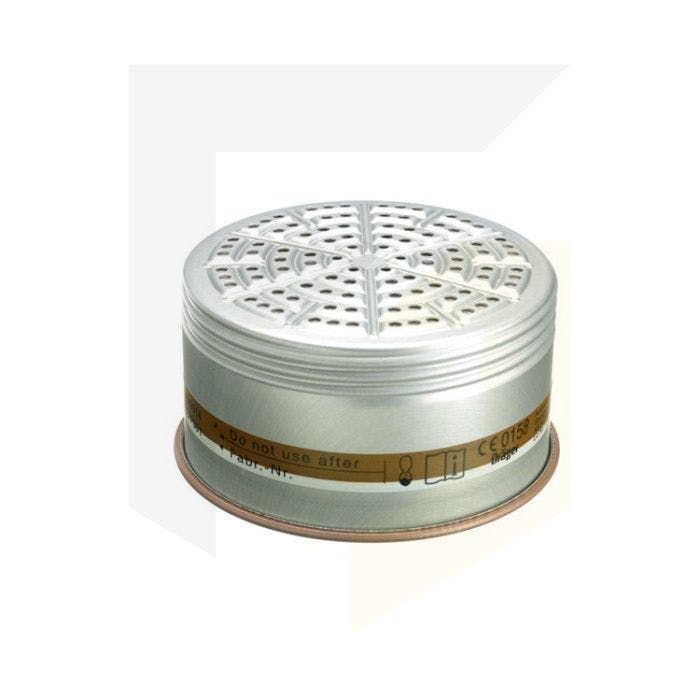

Drager Combination Filter, EN14387, 990 B1E1P2 R D, pack of 5
The X-plore Rd90 Combination filter range can protect in a range of industries including the automobile industry and shipbuilding. This filter specifically protects against inorganice gases and vapours such as chlorine, certain levels of hydrogen sulphide and hydrogen cyanide. It also protects against sulphur dioxide, hydrogen chloride and class 2 particulates.
Class 2 filters are 94% efficient in filtering out particulates.
The filters come in a pack of 5 pieces and have an Rd90 thread connection (91mm diameter). This is a Drager-specific connection and is designed for use with half masks such as the X-plore 4390 and the X-plore 4790.
In order to use this filter with masks with an EN 148-1 connection an adapter must be purchased – click here.
Drager’s Rd90 filter range is cost-effective and comes individually packaged to ensure the optimal protection when they are eventually used.
- Shelf life (from date of production) is normally 6 years
- Compact with an aluminimium housing
- Easy to identify filter damage
- Colour labels help identify the gas they protect against
- Filter weighs approximately 100g
Colour Code | Filter Type | Contaminants present |
AX 1) |
Gases and vapours of organic compounds with boiling point < 65 °C | |
A |
Gases and vapours of organic compounds with boiling point > 65 °C | |
B |
Inorganic gases and vapours, e.g. chlorine, hydrogen sulphide, hydrogen cyanide | |
E |
Sulphur dioxide, hydrogen chloride | |
K |
Ammonia and organic Ammonia derivates | |
CO 2) |
Carbon monoxide |
|
Hg 3) |
Mercury vapour |
|
NO 4) |
Nitrous Gases including nitrogen monoxide |
|
P |
Particles | |
Reactor5) |
Radioactive iodine including radioactive methyl iodide | |
1) May only be used as supplied from factory. Reuse and use against gas-compounds is absolutely impermissible 2) One time use only. Dispose after use. Special guidelines according to local regulations apply 3) Only use for a max of 50 hours according to EN 14387 4) One time use only. Dispose after use 5) Special guidelines according to local regulations apply |
