Drager Short-Term Detection Tubes - Ammonia 5/b (Pack of 10)

PRODUCT CODE:: 8101941

These tubes are designed for spot-measurements and must be used with the Drager Accuro Gas Detection Pump. Buy now from Frontline Safety.

£90.05 inc VAT

£75.04

Subscribe to back in stock notification

I have read & accept the Privacy Policy

Product description

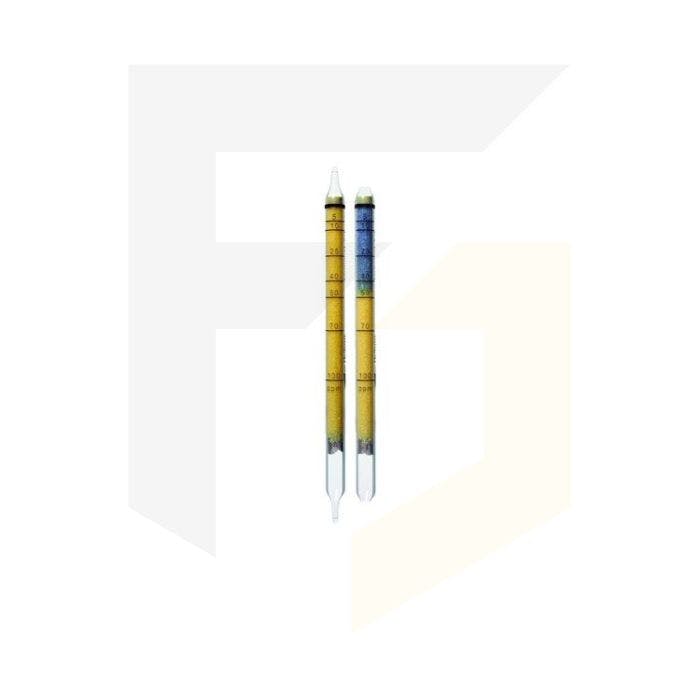

Drager Detection Tubes - Ammonia 5/b (Pack of 10)

These Ammonia short-term detection tubes have a shelf life of 2 years and additionally may be able to detect 1,1-Dimethylhydrazine.

One pack contains 10 tubes.

The Accuro Gas Detection Pump from Draeger Safety is required to use short-term gas detection tubes. View more information on this product by clicking here .

Key Features

Reach difficult measurement areas with the tubes, pump and accessories
Carry out measurements on the spot
Measurement results may take between 10 seconds and 15 minutes depending on the type of tube used
Applications for use include variations in concentrations in the workplace, contamination of breathing zones, pre-entry checks and confined space entry

Specification

Application Range
Standard Measuring Range:	5 to 100 ppm
Number of Strokes n:	1
Time for Measurement:	approx. 10 s
Standard Deviation:	± 10 to 15 %
Color Change:	yellow --> blue

Ambient Operating Conditions
Temperature:	10 to 50 °C
Absolute Humidity:	< 20 mg H2O / L

Reaction Principle
NH3 + pH-indicator --> blue reaction product

Cross Sensitivity
Other basic substances such as e.g. organic amines are indicated as well. The indication is not affected by: 300 ppm nitrous fumes 2,000 ppm sulfur dioxide 2,000 ppm hydrogen sulfide

Extension of the Measuring Range
Using n= 2 strokes, divide the reading by 2; the measuring range will be 2.5 to 50 ppm.
