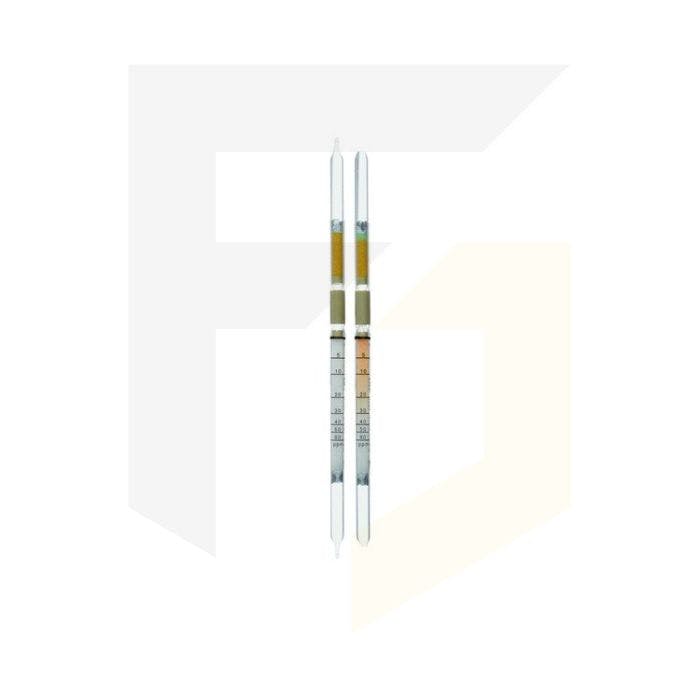

Drager Detection Tubes - Epichlorohydrin 5/b (Pack of 10)
Detect Epichlorohydrin gas with a measurement range of 5 to 80 ppm with Drager’s short-term gas detection tubes. These tubes have a shelf life of 2 years and are able to detect a range of other substances including 1-Chloro-2,3-epoxypropane, 2-Chloroethanol, 2,3-Epoxy-1-chloropropane and Ethylene Chlorohydrin.
One pack contains 10 tubes.
Short-term detection tubes require the use of the Drager Accuro Gas Detection Pump. Click here to buy this product.
- Hard-to-reach places can be accessed and measured using various compatible accessories
- Excellent for on-the-spot measurements
- 10 seconds to 15 minutes is the time frame for readings and is totally dependent on the tube type
- Suitable applications include pre-entry checks, confined space entry, variations in concentration levels and also contamination of breathing areas are amongst a number of potential of applications
Application Range | |
Standard Measuring Range: | 5 to 80 ppm |
Number of Strokes n: | 20 |
Time for Measurement: | approx. 8 min |
Standard Deviation: | ± 15 to 20 % |
Color Change: | pale gray --> yellow orange |
Ambient Operating Conditions | |
Temperature: | 10 to 40 °C |
Absolute Humidity: | 5 to 15 mg H2O / L |
Reaction Principle | |
Epichlorohydrin + Cr VI --> Cl2 Cl2+ o-tolidine --> yellow orange reaction product |
|
Cross Sensitivity | |
Other chlorinated hydrocarbons are indicated as well but with different sensitivities. It is not possible to measure epichlorohydrine in the presence of free halogens and hydrogen halides in the TLV range because they are indicated as well. Petroleum hydrocarbons cause low readings. |
