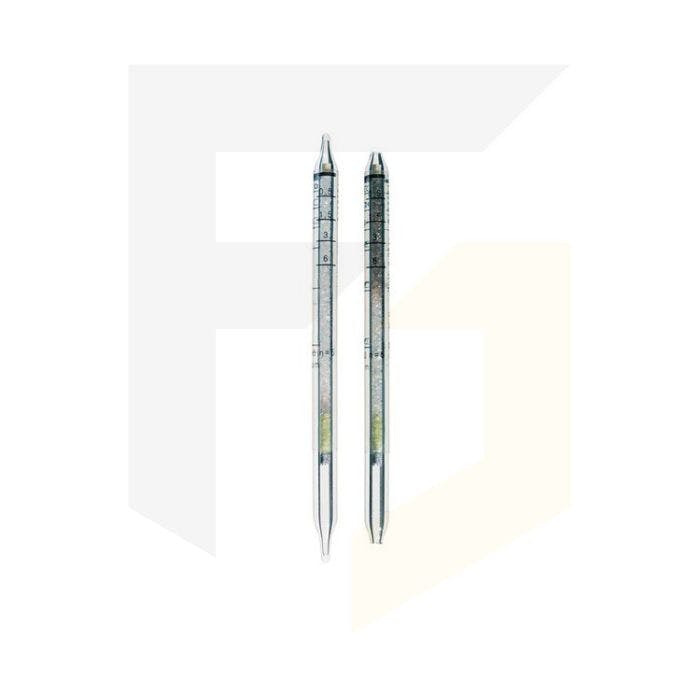

Drager Short Term Detection Tubes - Hydrazine 0.01/a (Pack of 10)
- PRODUCT CODE:
- 8103351
These tubes are designed for spot-measurements and must be used with the Drager Accuro Gas Detection Pump. Buy now from Frontline Safety.
£263.64
inc VAT
exc VAT:
£219.70
exc VAT:
Loading...
Product description
Drager Detection Tubes - Hydrazine 0.01/a (Pack of 10)
These Drager short-term detection tubes are for Hydrazine gas (0.01/a). Not only are they cost-effective but they also have a shelf life of 2 years and come in a pack of 10 tubes.
The tubes have a measurement range of 0.01 to 6 ppm.
Click here to view more information on the compatible Drager Accuro Gas Detection Pump for short-term detection tubes.
Key Features
- Reach difficult measurement areas with the tubes, pump and accessories
- Carry out measurements on the spot
- Measurement results may take between 10 seconds and 15 minutes depending on the type of tube used
- Applications for use include variations in concentrations in the workplace, contamination of breathing zones, pre-entry checks and confined space entry
Specification
| Application Range | |
| Standard Measuring Range: | 0.01 to 0.4 ppm / 0.5 to 6 ppm |
| Number of Strokes n: | see tube(1) / 5 |
| Time for Measurement: | approx. 20 to 30 min /approx. 1 min |
| Standard Deviation: | ± 20 to 25 % |
| Color Change: | pale grey --> grey-brown |
| Ambient Operating Conditions | |
| Temperature: | 10 to 30 °C |
| Absolute Humidity: | 1 to 20 mg H2O / L |
| Reaction Principle | |
| N2H4 + Silver Salt --> grey-brown reaction product | |
| Cross Sensitivity | |
| 1.1-Dimethylhydrazin and Monomethylhydrazine are shown with the same sensitivity (Standard Deviation ± 50 %) 5 ppm Ammonia at 100 strokes result in a measurement of approx. 0.01 ppm Hydrazine. At 5 strokes, Ammonia will also not be shown in high concentrations. | |
| (1) Number of strokes is printed on the tube. As a result of manufacturing of processes the number of strokes can vary between 100 and 150 strokes for the low measuring range. | |
