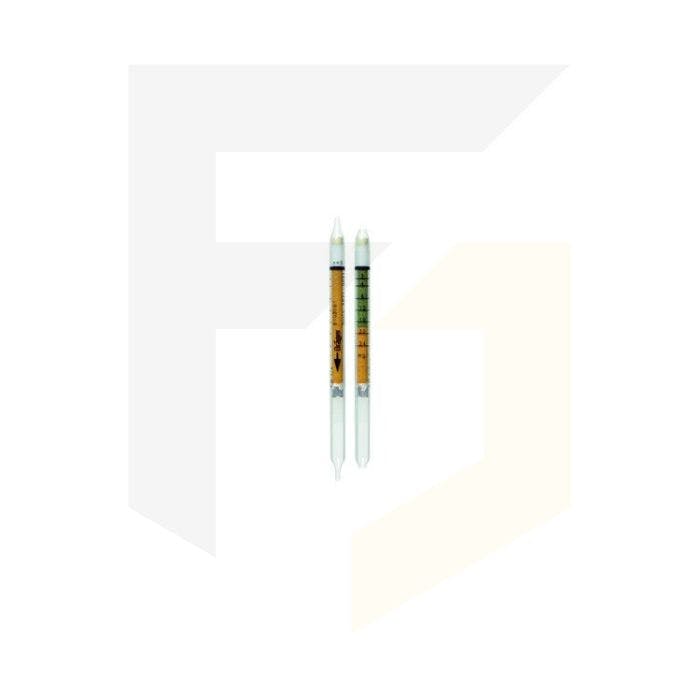

Drager Detection Tubes - Hydrocarbons 2 (Pack of 10)
These short-term detection tubes from Drager are for Hydrocarbons 2. They have a measurement range of 2 to 23 mg/l and detect a range of substances including Aliphatic Hydrocarbons - (Btp 50-200oC).
The tubes have a shelf life of 2 years and come in a pack of 10 tubes.
Buy the Drager Accuro Gas Detection Pump by clicking here. This is required for the use of short-term gas detection tube.
- Reach difficult measurement areas with the tubes, pump and accessories
- Carry out measurements on the spot
- Measurement results may take between 10 seconds and 15 minutes depending on the type of tube used
- Applications for use include variations in concentrations in the workplace, contamination of breathing zones, pre-entry checks and confined space entry
Application Range | |
Standard Measuring Range: | 2 to 24 mg / L |
Number of Strokes n: | 3 |
Time for Measurement: | approx. 5 min |
Standard Deviation: | ± 25 % |
Color Change: | orange --> brown-green |
Ambient Operating Conditions | |
Temperature: | 0 to 40 °C |
Absolute Humidity: | 1 to 25 mg H2O / L |
Reaction Principle | |
C8H18 + Cr6+ --> Cr3+ +div. oxidation products | |
Cross Sensitivity | |
The information regarding cross sensitivity only applies for measurements with a maximum of 3 strokes. Paraffinic and aromatic hydrocarbons are indicated as a whole. Differentiation is not possible. Aromatic hydrocarbons (benzene, toluene) are also displayed. Their concentration in the mixture should not exceed 20%. There is no fault caused on the display by < 1000 ppm CO. | |
Additional Information | |
A maximum of 15 strokes within 1 hour can be performed for leakage measurements (qualitative measurements). |
