Drager Short Term Detection Tubes - Hydrogen 0.2%/a (Pack of 10)
- PRODUCT CODE:
- 8101511
These tubes are designed for spot-measurements and must be used with the Drager Accuro Gas Detection Pump. Buy now from Frontline Safety.
£111.17
inc VAT
exc VAT:
£92.64
exc VAT:
Loading...
Product description

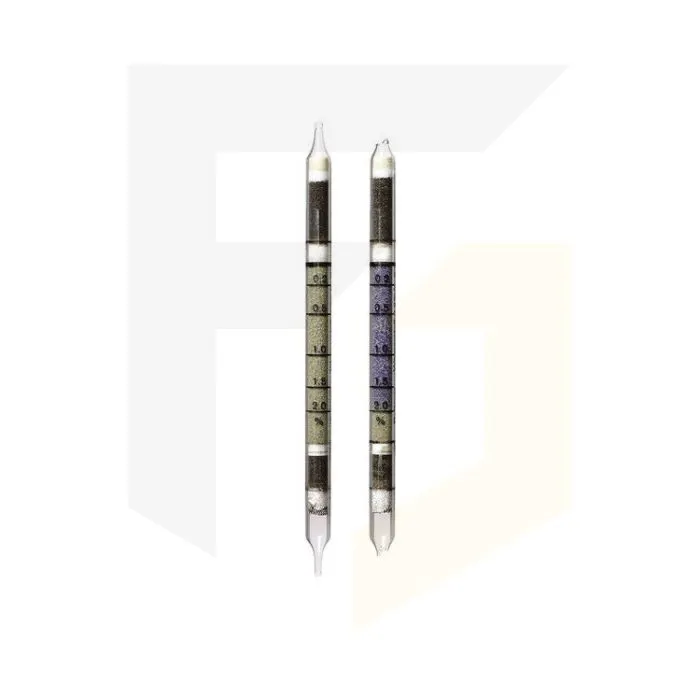

Drager Detection Tubes - Hydrogen 0.2%/a (Pack of 10)
These Drager short-term gas detection tubes are for levels of Hydrogen (0.2%/a). The tubes have a shelf life of 2 years and a measurement range of 0.2 to 2 vol%). They come in pack of 10 tubes.
Buy the Drager Accuro Gas Detection Pump by clicking here . This is required for the use of short-term gas detection tube.
Key Features
- Reach difficult measurement areas with the tubes, pump and accessories
- Carry out measurements on the spot
- Measurement results may take between 10 seconds and 15 minutes depending on the type of tube used
- Applications for use include variations in concentrations in the workplace, contamination of breathing zones, pre-entry checks and confined space entry
Specification
| Application Range | |
| Standard Measuring Range: | 0.2 to 2.0 vol. % |
| Number of Strokes n: | 1 |
| Time for Measurement: | approx. 1 min |
| Standard Deviation: | ± 15 to 20 % |
| Color Change: | green yellow --> turquoise blue |
| Ambient Operating Conditions | |
| Temperature: | 20 to 40 °C |
| Absolute Humidity: | max. 50 mg H2O / L |
| Reaction Principle | |
| a) H2 + 1⁄2 O2 --> H20 b) H2O + indicator --> turquoise blue reaction product |
|
| Cross Sensitivity | |
| No interference by: 0.1 vol. % acetylene 6 vol. % alcohol 6 vol. % ammonia 0.5 vol. % carbon monoxide |
|
| Extension of the Measuring Range | |
| The indicating layer is heated up by hydrogen concentrations of more than 10 vol. %. The air sample must not contain additional flammable substances whose ignition temperature is below 250 °C/ 482 °F as this will cause an explosion risk. | |
