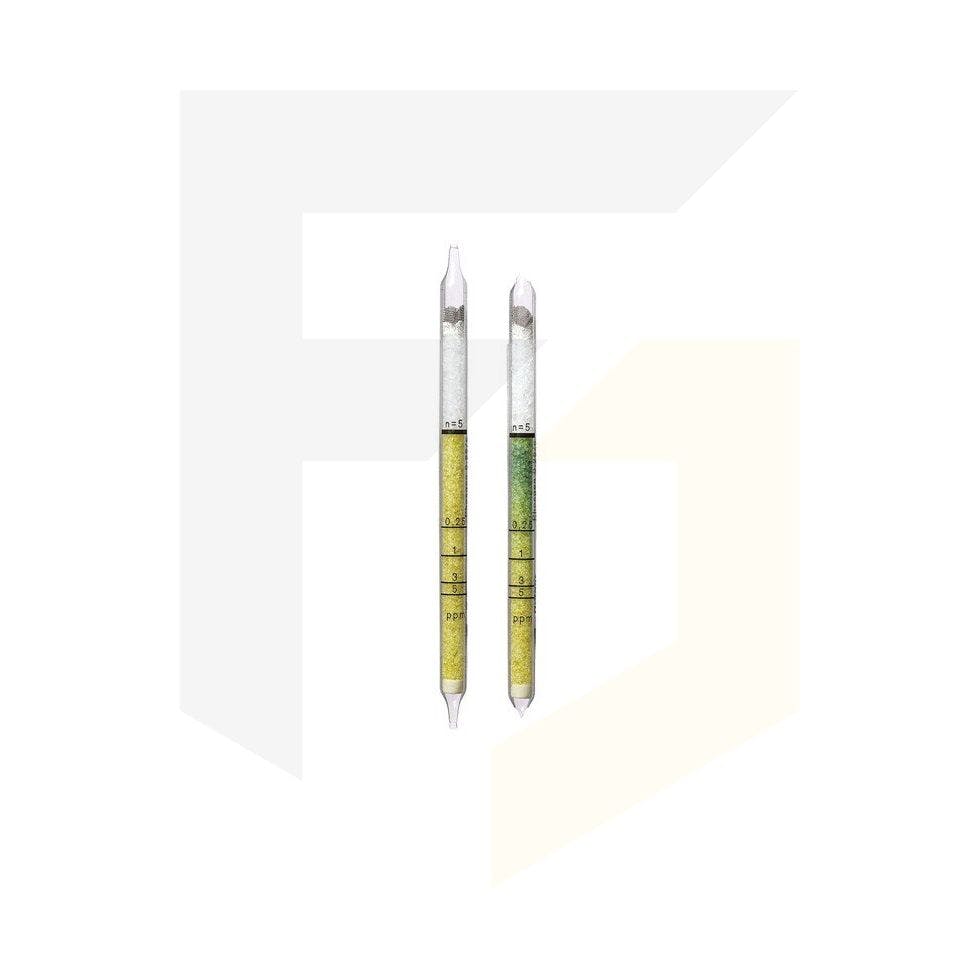

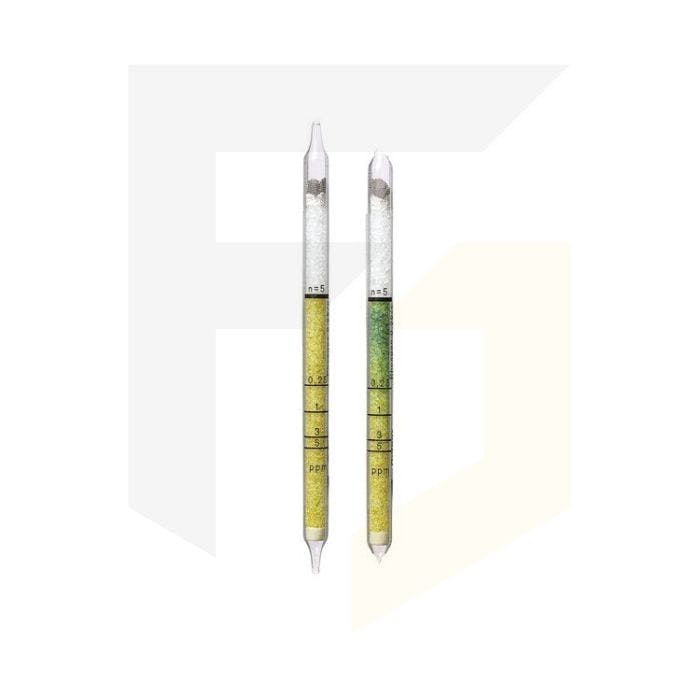

Drager Detection Tubes - Phosgene 0.02/a (Pack of 10)

PRODUCT CODE:: 702803-01

These tubes are designed for spot-measurements and must be used with the Drager Accuro Gas Detection Pump. Buy now from Frontline Safety.

Subscribe to back in stock notification

I have read & accept the Privacy Policy

Drager Short Term Detection Tubes - Phosgene 0.02/a (Pack of 10)

Drager Short Term Detection Tubes - Phosgene 0.05/a (Pack of 10)

Drager Short Term Detection Tubes - Phosgene 0.25/c (Pack of 10)

£62.41

inc VAT

Product description

Drager Detection Tubes - Phosgene 0.02/a (Pack of 10)

Short Term Detection Tubes - Phosgene 0.02/a (Measurement range: 0.5 to 4.5 ppm): Detects a range of substances incl. 4-Chlorobutrylchloride, Phosgene.

Note: This product has a shelf life of 2 years and comes in a pack of 10 tubes.

Specification

Application Range
Standard Measuring Range:	0.02 to 1 ppm / 0.02 to 0.6 ppm
Number of Strokes n:	20 / 40
Time for Measurement:	approx. 6 min / approx. 12 min
Standard Deviation:	± 10 to 15 %
Color Change:	white --> red

Ambient Operating Conditions
Temperature:	0 to 40 °C
Absolute Humidity:	3 to 15 mg H2O / L

Reaction Principle
COCI2 + aromatic amine --> red reaction product

Cross Sensitivity
Chlorine and hydrochloric acid lead to plus errors and, at higher concentrations, to bleaching of the indicating layer. Concentrations of phosgene above 30 ppm will also lead to bleaching of the indicating layer..

Additional Information
High concentrations of phosgene will be not indicated!
