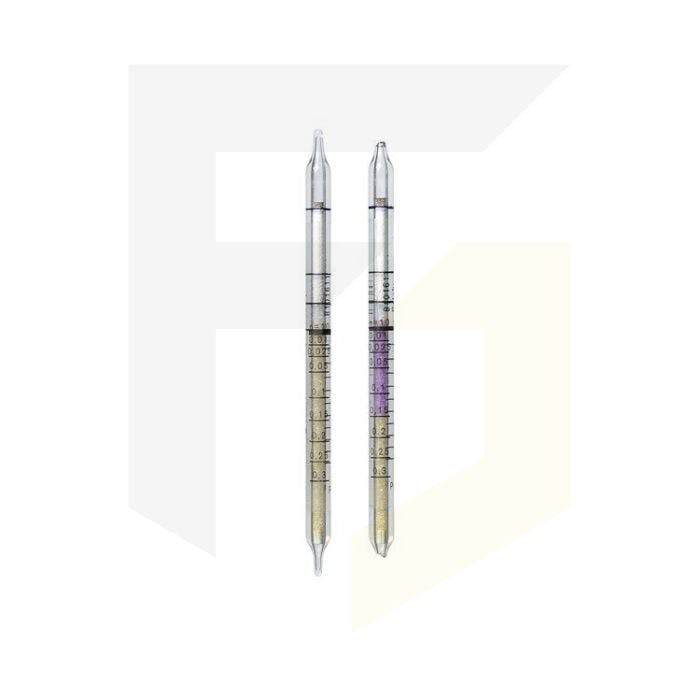

Drager Detection Tubes - Phosphine 0.01/a (Pack of 10)
Drager Detection Tubes - Phosphine 0.01/a (Pack of 10)

Product Code - 8101611

exc VAT £67.68 inc VAT £81.22
Description / Features / Spec


Drager Detection Tubes - Phosphine 0.01/a (Pack of 10)

The Drager short-term detection tubes are a cost-effective way of measuring phosphine (0.01/a).  They have a measurement range of 0.01 to 1 ppm.

These tubes have a shelf life of 2 years and come in a pack of 10 tubes.

Buy the Drager Accuro Gas Detection Pump by clicking here.  This is required for the use of short-term gas detection tube.

Key Features

  • Reach difficult measurement areas with the tubes, pump and accessories
  • Carry out measurements on the spot
  • Measurement results may take between 10 seconds and 15 minutes depending on the type of tube used
  • Applications for use include variations in concentrations in the workplace, contamination of breathing zones, pre-entry checks and confined space entry


Application Range
Standard Measuring Range: 0.1 to 1.0 ppm / 0.01 to 0.3 ppm
Number of Strokes n: 3 / 10
Time for Measurement: approx. 2.5 min / approx. 8 min
Standard Deviation: ± 10 to 15 %
Color Change: yellow --> red
Ambient Operating Conditions
Temperature: 2 to 40 °C
Absolute Humidity: < 20 mg H2O / L
Reaction Principle
PH3 + HgCI2 --> HCI + Hg-phosphide
HCI + pH indicator --> red reaction product
Cross Sensitivity
Arsine is indicated with different sensitivity. Up to 6 ppm sulfur dioxide or 15 ppm hydrochloric acid does not interfere, but higher concentrations cause plus errors. More than 100 ppm ammonia leads to minus errors. 30 ppm hydrocyanic acid does not affect the 3 stroke test, but with the 10 stroke test minus errors of up to 50 % can occur.
