Drager Short Term Detection Tubes - Vinyl Chloride 0.5/b (Pack of 10)
- PRODUCT CODE:
- 8101721
These tubes are designed for spot-measurements and must be used with the Drager Accuro Gas Detection Pump. Buy now from Frontline Safety.
£97.78
inc VAT
exc VAT:
£81.48
exc VAT:
Loading...
Product description

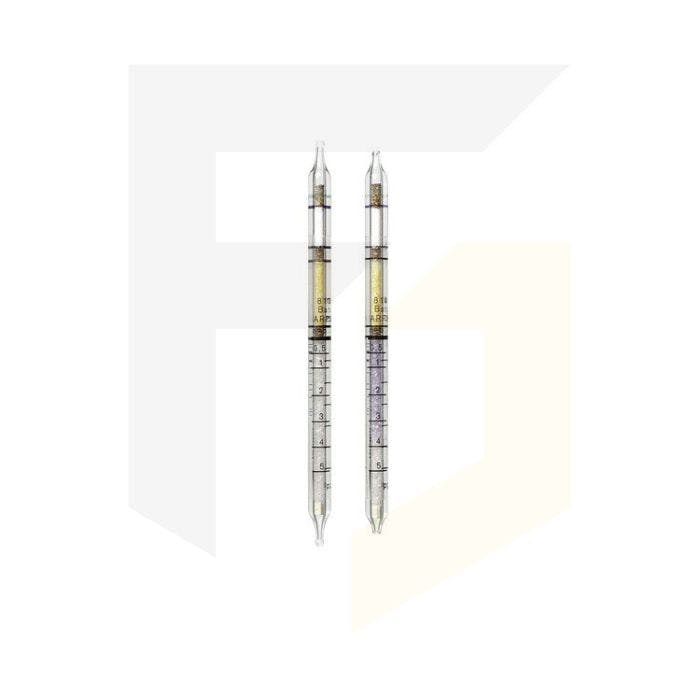

Drager Detection Tubes - Vinyl Chloride 0.5/b (Pack of 10)
These Vinyl Chloride tubes from Drager Safety have a measurement range of 0.38 to 3 ppm. They detect a range of substances including 1,1-Dichloroethylene, 1,1,2,2-Tetrabromoethane and 1,2,4-Trichlorobenzene.
The tubes have a shelf life of 2 years and come in a pack of 10.
Short-term detection tubes require the use of the Drager Accuro Gas Detection Pump. Click here to buy this product.
Key Features
- Obtain readings from hard to reach places with the tubes, pump and accessories
- Carry out measurements on the spot
- 10 seconds to 15 minutes is the potential time frame for readings to be taken and is dependent on the type of tube used
- Pre-entry checks and confined space entry are two applications which can use tubes
- Additional applications may include variations in concentration levels and also contamination of breathing areas
Specification
| Application Range | |
| Standard Measuring Range: | 5 to 30 ppm / 0.5 to 5 ppm |
| Number of Strokes n: | 1/5 |
| Time for Measurement: | approx. 30 s / approx. 2.5 min |
| Standard Deviation: | ± 15 to 20 % |
| Color Change: | white --> violet |
| Ambient Operating Conditions | |
| Temperature: | 10 to 30 °C |
| Absolute Humidity: | max. 20 mg H2O / L |
| Reaction Principle | |
| a) CH2=CHCI + CrVI ä Cl2 b) Cl2 + dimethyl naphtidine ä violet reaction product |
|
| Cross Sensitivity | |
| 100 ppm hydrogen chloride, 20 ppm chlorine, 10 ppm carbon tetrachloride, 10 ppm chloroform or 5 ppm perchloroethylene are not indicated. Trichloroethylene and chlorobenzene are indicated with less sensitivity. 1.1-dichloroethylene is indicated with almost identical sensitivity. Vapors of organic solvents consume part of the oxidation layer so that the resultant reading is somewhat lower. Examples: a reading of 0.5 ppm vinyl chloride will occur by 5 ppm vinyl chloride + 100 ppm butadiene or 5 ppm vinyl chloride + 10 ppm ethylene. |
|
