Drager Organic Vapour A (0-100 ppm) Sensor

PRODUCT CODE:
6809522
Drager Organic Vapour A (0-100 ppm) Sensor
£797.71 inc VAT
£664.76
Loading...

Product description

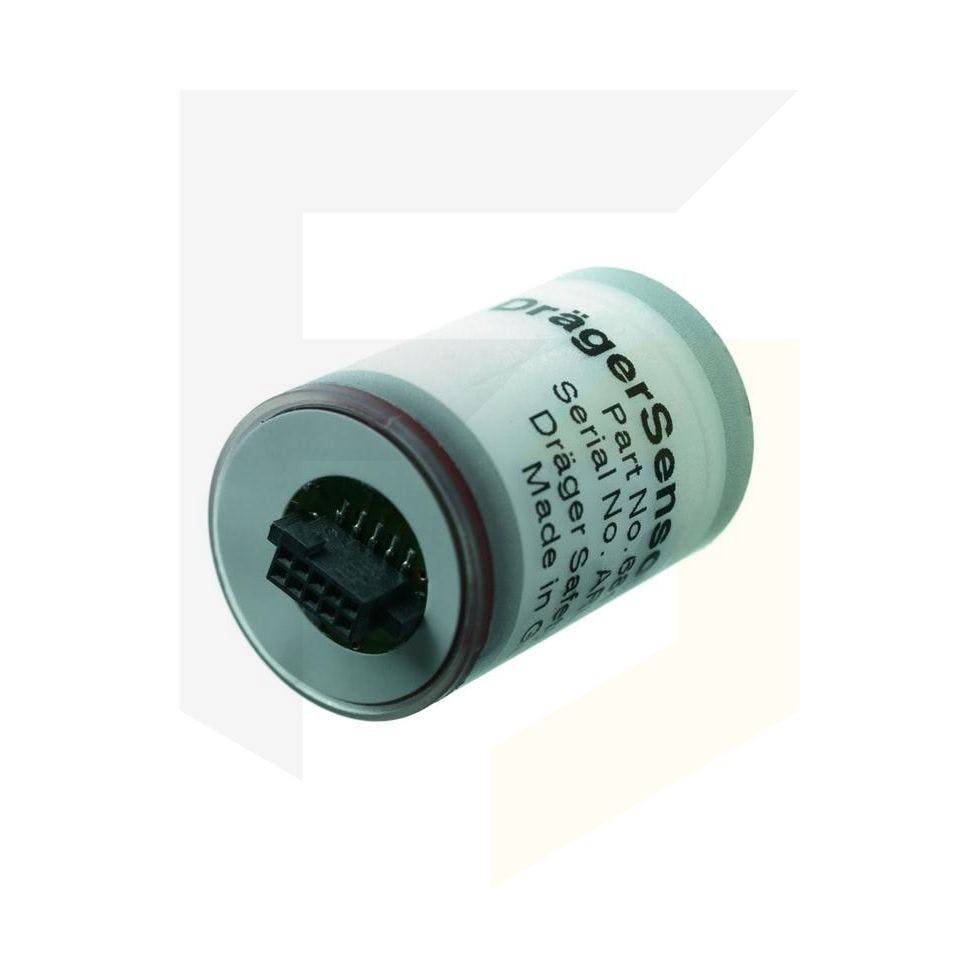

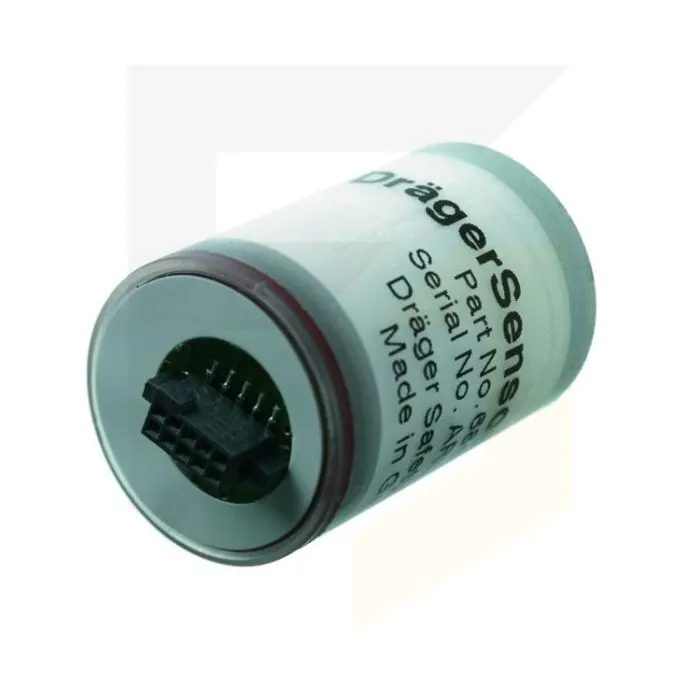

Drager Organic Vapour A (0-100 ppm) Sensor

This DragerSensor is for the detection of Organic Vapour (OV-A).  This type of sensor is an XS EC and various measuring ranges can be found below.

It can be found in the production of plastics, disinfection, painter and the chemical industry and is for use with the Drager X-am 7000 multi gas detector.

Measuring Ranges:

  • 0 to 100 ppm C2H4O (ethylene oxide)
  • 0 to 100 ppm H2CCHCN (acrylonitrile)
  • 0 to 100 ppm C6H5CHCH2 (styrol)
  • 0 to 100 ppm H2CC(CH3)COOCH3 (methyl methacrylate)
  • 0 to 300 ppm (CH3)2CCH2 (isobutylene)
  • 0 to 100 ppm C2H3OCH2Cl (epichlorohydrin)

Key Features

  • This is a plug and play sensor which can be easily replaced
  • Features a 1 year guarantee
  • Has excellent insensitivity to moisture
  • Optimised for other organic gases and vapors
Specification

Detection Limit

5 ppm

Resolution

0.5 ppm

Response Time

≤ 90 seconds at 20 °C or 68 °F (T50) for EO, But, ClPO
≤ 300 seconds at 20 °C or 68 °F (T50) for ACN, MMA, Styr

Measurement accuracy

Zero Point:  ≤ ± 2 ppm
Sensitivity:  ≤ ± 20% of measured value

Long-term drift, at 20°C (68°F)

Zero Point:  ≤ ± 2 ppm/month
Sensitivity:  ≤ ± 10% of measured value/month

Warm-up time:

≤ 18 hours

Ambient conditions

Temperature: (–20 to 55)°C (–4 to 131)°F for EO, But, Styr, ClPO
(5 to 40)°C (41 to 104)°F for ACN, MMA
Humidity: (10 to 90)% RH
Pressure: (700 to 1,300) hPa

Influence of Temperature

Zero Point:  ≤ ± 0.2 ppm/K
Sensitivity:  ≤ ± 1% of measured value/K

Influence of Humidity

Zero Point:  ≤ ± 0.1 ppm/% RH
Sensitivity:  ≤ ± 0.2% of measured value/% RH

Test Gas

approx. 10 ppm C2H4O test gas or one of the other target gases ClPO, ACN, Styr, MMA, But
