PRODUCT CODE
3707405
£1,122.82 £935.68
KO2 self-rescuer provides up to 30 minutes of oxygen and escape time.

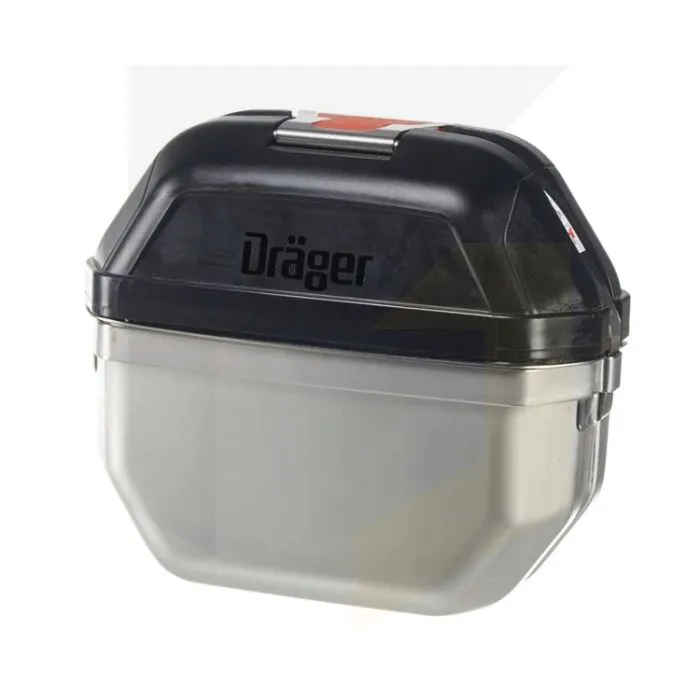

Drager Oxy 3000 MK III Self-Rescuer (Hip Belt Version)

Drager Oxy 3000 MK II Self-Rescuer (Hip Belt Version)

The Drager Oxy 3000 MK II is a self-rescuer, designed to provide a wearer with approximately 30 minutes escape time from a hazardous situation.  The Oxy 3000 will supply a wearer with oxygen in applications where oxygen deficiency, smoke or dangerous gases are present.

This KO2 self-rescuer is housed in a casing with a hard exterior.  It has an integrated shock absorber which should protect the KO2 cartridge and the casing can be discarded when the device is activated.  This allows the wearer to escape safely and efficiently.  It also offers thermal protection to protect the wearer from any heat generated by the KO2 cartridge.

Although the Oxy 3000 MK II is maintenance-free for up to 10 years it should still be visually checked to ensure it's undamaged.  It has a Safety Eye feature.  This allows the wearer to see at a glance if the KO2 cartridge is damanged at all or showing signs of moisture. Buy now from Frontline Safety.

Key Features
  • One-handed operation for right and left-handed users
  • Activation is triggered immediately, when donning the device
  • Mouthpiece is comfortable to wear
  • Anti-static parts inside and out of the unit
  • Stainless steel seal protects the unit from being accidently opened
  • Support ring allows for exchangeable wearing concept
  • Protective goggles and nose clip provided
  • Secure fit thanks to neck strap
Specifications

Dimensions
(with support ring - hip and in use

225 x 190 x 122 mm
(8.86 x 7.48 x 4.80 in)

When in use
170 x 200 x 80mm
(6.69 x 7.87 x 3.15")

Weight

2.8kg

When in use - 1.7kg / 60.0 oz

Inhalation/exhalation
resistance

+9.8 hPa or -9.8 hPa
(maximum individual exhalation resistance)
Σ 16 hPa (at the end of the usage period)

Duration

30 min (35 L/min breathing minute volume)

Temperature

  • -30 °C to +50 °C (-22 to 122 °F) for storage and transport
  • -5 °C to +70 °C (23 to 158 °F) during use
  • -20 °C to +70 °C (23 to 158 °F) during an escape

Inhalation Temperature

Maximum +50 °C (122 °F) in accordance with DIN EN 13794

Breathing Bag Volume

> 8 Litres

Service Life

10 years @ 5 days/week and 8 hour/shift

Approvals

DIN EN 13794



1 - Use with ambient temperatures up to -20 °C is possible if the oxygen selfrescuer was stored at room temperature before application
and is exposed to -20 °C for no longer than 30 minutes. The oxygen self-rescuer might be difficult to open in cold weather conditions,
and especially at minus temperatures.
2 - Weight and dimensions may differ from the specifications.
