PRODUCT CODE
6305820
Provides up to 30 minutes of escape time through KO2 cartridge technology.

Please note this product is currently discontinued.

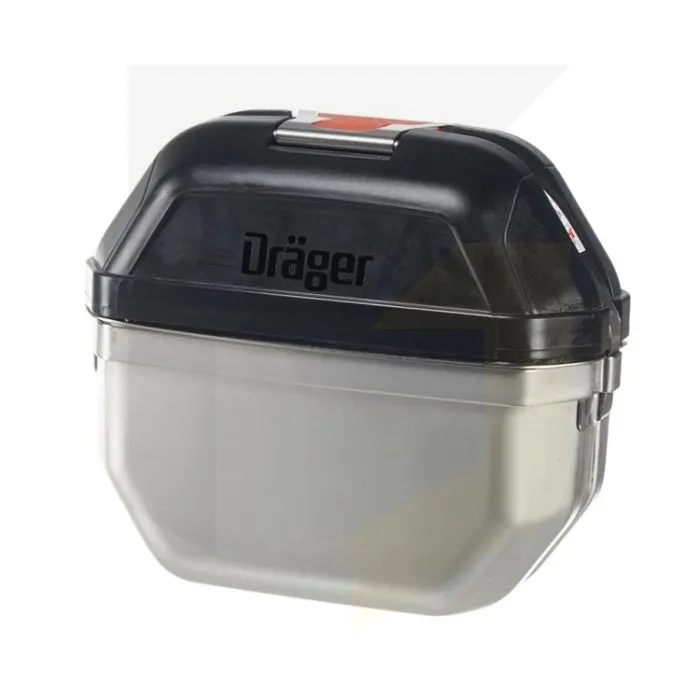

Drager Oxy 3000 MK II Shoulder Belt Version (with Abrasion Protection)

Drager Oxy 3000 MK II Shoulder Belt Version (with Abrasion Protection)

The Drager Oxy 3000 MK II is a self-rescuer with a shoulder belt to assist with transportation.  It will provide users with around 30 minutes escape time during incidents where oxygen deficiency, smoke or dangerous gases are present.

The Oxy 3000 will provide oxygen, independent of the ambient air using a KO2 cartridge.  A feature known as SafetyEye includes a status window which will show any damage or moisture within the cartridge, so there's no need for test equipment.  The Drager Oxy has been designed to be maintenance-free for 10 years so the SafetyEye feature should help ensure this is the case.  During the conversion to oxygen process the KO2 cartridge will generate heat.  The Oxy has thermal protection to prevent the wearer from this heat.

The Drager Oxy 3000 is a lightweight and compact unit, suitable for applications such as mining, sewage works and petrochemicals.  It provides a safe and uncomplicated escape thanks to the intuitive opener and discardable shell.  Once the unit is donned the device will automatically activate.

Key Features
  • One-handed operation, able to be used by left and right handed people
  • Opener is protected from being accidentally opened
  • Abrasion protection is made from rubber
  • Anti-static breathing bag supplied with protective goggles and a nose clip
  • Comfortable mouthpiece
  • Training units and 60-minute sets available
Specifications

Dimensions
(with support ring - hip and in use

230 x 194 x 122 mm
(9.06 x 7.64 x 4.80 in)

When in use
170 x 200 x 80mm
(6.69 x 7.87 x 3.15")

Weight

2.8 kg (98.8 oz.)

When in use - 1.7kg / 60.0 oz

Inhalation/exhalation
resistance

+10 hPa or -10 hPa
(maximum exhalation resistance)
Σ 16 hPa (at the end of the running time)

Duration

30 min (35 L/min breathing minute volume)

Temperature

  • -30 °C to +50 °C (-22 to 122 °F) for storage and transport
  • -30 °C to +70 °C (-22 to 158 °F) for a maximum of 24 h during transport (not when the device is in use)
  • -5 °C to +70 °C (23 to 158 °F) during use

Inhalation Temperature

Maximum +50 °C (122 °F) in accordance with DIN EN 13794

Breathing Bag Volume

> 8 Litres

Service Life

10 years @ 5 days/week and 8 hour/shift

Approvals

DIN EN 13794
89/686/EWG
AS/NZS 1716:2003 (MDG 3609:2010)
