Drager Oxyboks K 25 Self-Rescuer

PRODUCT CODE:
6303666

Please note: this product is no obsolete.  See the Drager Oxy 6000 range as a potential alternative.

Please note this product is currently discontinued.

Loading...

Product description

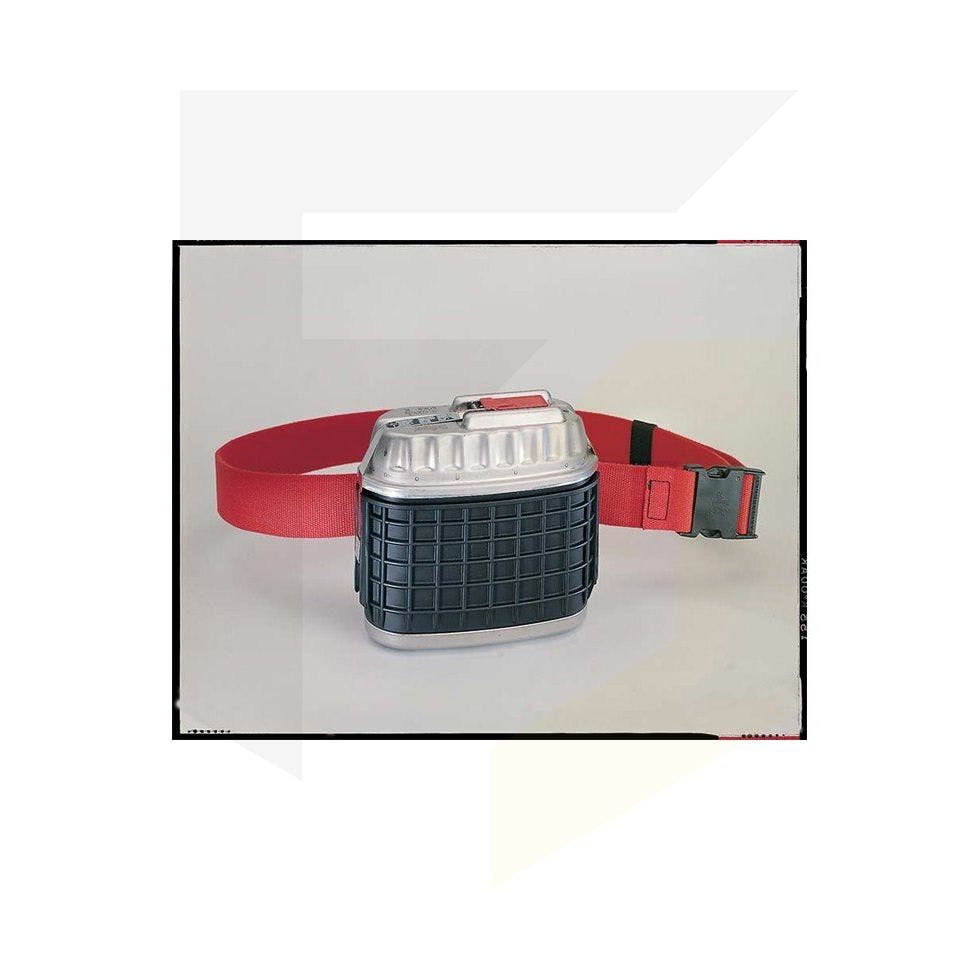

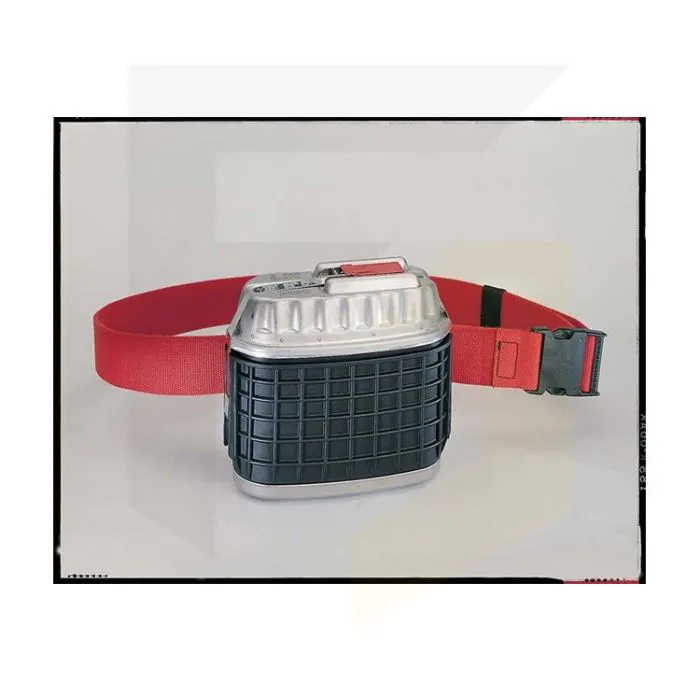

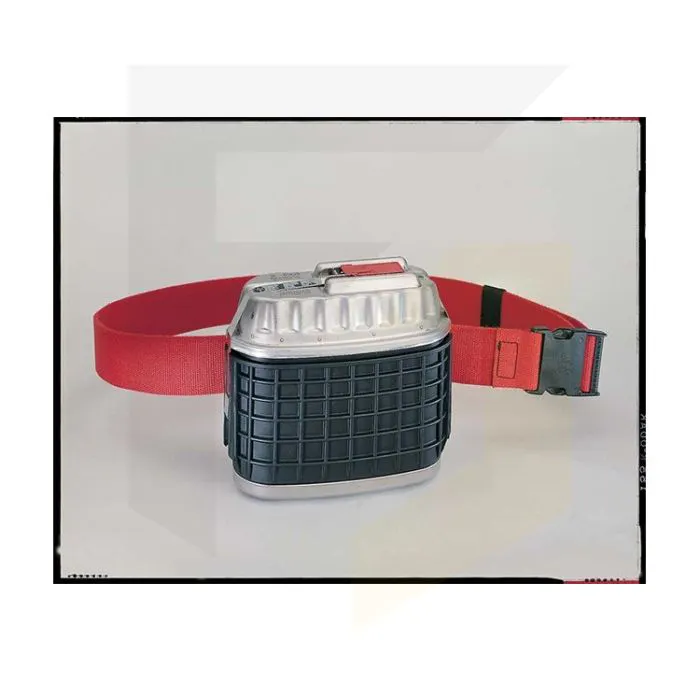

Drager Oxyboks K 25 Self-Rescuer

Please note: this product is no obsolete.  See the Drager Oxy 6000 range as a potential alternative.

The Drager Oxyboks K 25 is a self-rescuer designed for use in difficult working conditions such as the mining industry.  It will allow you up to 25 minutes of respiratory protection to self-recue (dependant on breathing rate)

This type of self-rescuer is ideal for protection from the unexpected presence of toxic gases or in oxygen-deficient environment.

One of the advantages of using the Oxyboks K 25 is how freely it allows you to move during use, even if you are unable to stand upright (in narrow environments).

Oxygen supply will be provided immediately upon donning of the self-rescuer due to the integrated starter cartridge.  The casing of the Oxyboks K 25 is made of reinforced steel, which offers increased robustness.

Key Features

  • Able to be belt-mounted and can sit comfortably on the hip
  • Shouldn’t interfere with your daily duties
  • Can be easily opened and donned and can be worn with other safety equipment
  • Coloured service indicator can determine the readiness for use
  • No need for maintenance for 10 years (on correctly stored devices)
Specification

Dimensions
  • 189 x 205 x 89 mm (7.44 x 8.07 x 3.5”)
  • Approx. 4.6 lb (2.1 kg) with carry case
  • Approx. 2.5 lb (1.2 kg) during use

Nominal exposure time (acc. To EN13794)

25 minutes

Usage Period
  • Breathing rate 10 L/min – 120 mins
  • Breathing rate 30 L/min – 30 mins
  • Breathing rate 35 L/min – 25 mins
  • Breathing rate 100 L/min – 8 mins

Breathing Resistance
  • At 35 L/min sinusoidal at start of usage – 4 mBar
  • At 35 L/min sinusoidal during usage – max. 10 mBar

CO2 Content
  • In inhaled air - < 1 Vol.%
  • In Inhaled air during use – max. 2.5 Vol.%

Breathing Bag Capacity

> 6 L

Approvals

Approved in accordance to DIN EN 13794 / temp. class 2

What’s Included?
  • Oxyboks K 25 in housing
  • Mouth piece
  • Nose clip
