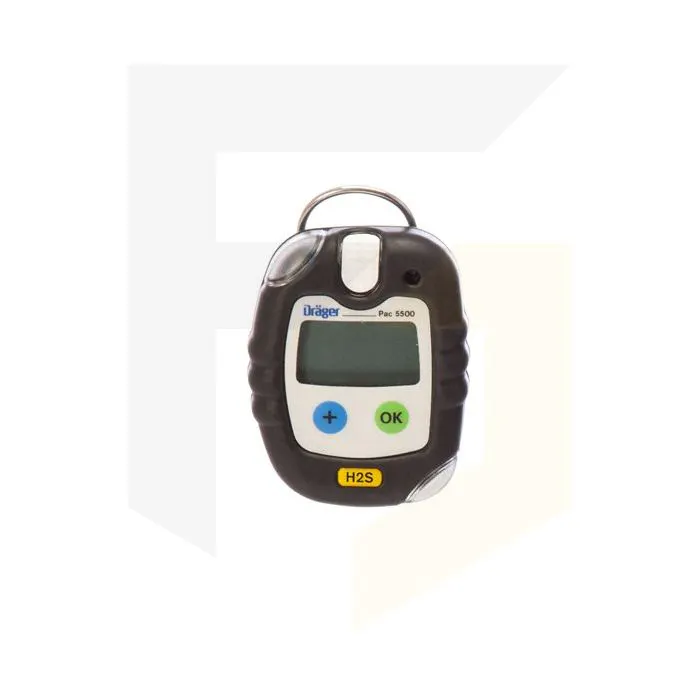

Drager - Pac 5500 Hydrogen Sulfide (H2S) Personal Gas Detector

PRODUCT CODE:
3363766

Please note: this product is now obsolete.  See the Drager Pac 6500 as the replacement monitor.

Please note this product is currently discontinued.

Loading...

Product description

Drager - Pac 5500 Hydrogen Sulphide (H2S) Personal Gas Detector

Please note: this product is now obsolete.  See the Drager Pac 6500 as the replacement monitor.

The Pac 5500 from Drager is a portable hydrogen sulphide monitor, suitable for industrial users and handheld applications.

This personal gas detector is designed for long-term detection with an expected lifespan of 5 to 8 years and is able to tolerate tough environments.

Drager’s Pac 5500 has a clear, language-free LCD screen which displays gas measurements and concentrations at a glance.  The monitor can also be back-lit in darker environments to improved readability.

Bump tests are required by most national regulations. This H2S detector from Drager features adjustable bump test and calibration intervals to suit different applications and has a range of calibration accessories available to carry out this task.  Service and calbration can also be carried out by Frontline Safety.

Key Features

  • Single-hand operation even when using gloves
  • Impact-resistant rubber housing is impervious to corrosive chemicals
  • Battery and sensor are easily replaceable on-site without additional equipment
  • Replaceable dust and water filter
  • Easy-to-read LCD screen
  • Quick identification of instrument type using colour-coded gas labels
  • Various alarm options including a ‘life-signal’ option which can be activated/disable to suit specific industry requirements
  • Data-logger can store up to 60 events including bump tests, error modes, and configuration changes
  • Warning is displayed when bump test/calibration is required
  • Gas inlets featured at top and front of the device
  • Possible to set calibration interval to 2 years; no lifetime limitation
  • Adjustable bump test and calibration intervals
Specification
Range  (ppm) 0 to 100 ppm
Resolution  (ppm) 0.1 ppm
Response TIme 15 secs
Dimensions (W x H x D) 84 x 64 x 25 mm; 3.3 x 2.5 x 1.0 inch
Weight 120g; 3.8 oz

Ambient Conditions
  • Temperature: -30 – +50 °C; -20 - +120 °F
  • Pressure: 700 - 1300 hPa
  • Humidity: 10 – 90 % r. h.
Battery Life

8 hours of use per day, 1 minute alarms per day (Typical at 25° C)
IP Rating IP 65 – projection of water

Alarms
  • Visual (360° flashing LEDs at top and bottom)
  • Audible – Multi-tone > 90 dB at 30cm; 1ft
  • Vibration
Approvals
  • CE-Sign (89/336/EEC, 94/9/EC)
  • ATEX I/II M 1/1 G EEx ia I/IIC T4
  • UL Class I, II Div 1, Group A, B, C, D, E, F, G, Temp. Code T4
  • cUL Class I, II Div 1, Group A, B, C, D, E, F, G, Temp. Code T4
  • IECEx Ex ia II C T4
  • GOST_51330.0-99 (_60079-0-98); _51330.10-99 (_60079-11-99); _ExiaI / 0ExiaIICT4
What’s Included
  • Pac 5500 detector with Drager XXS Sensor as specified
  • Operation and maintenance manual
  • Crocodile clip (installed)
  • High Capacity Lithium Battery (Installed)
