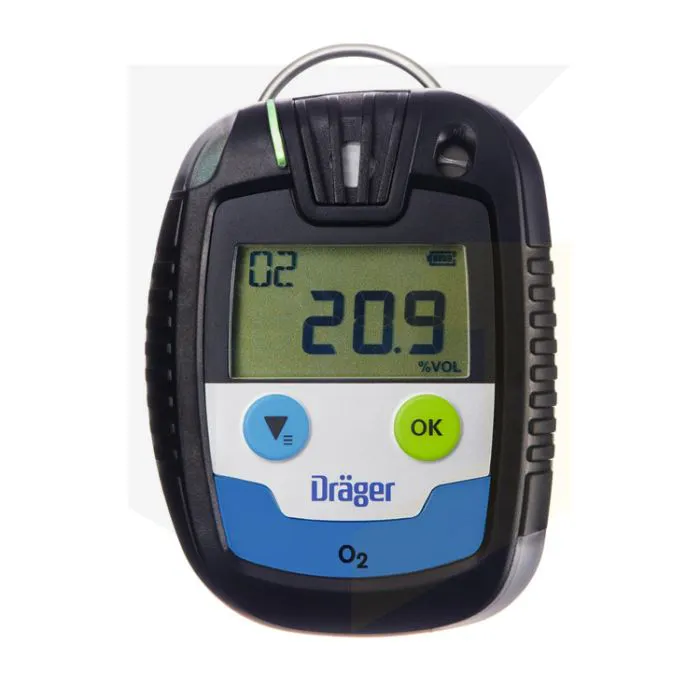

Drager Pac 6500 Oxygen (O2) Reusable Single Gas Detector
The Drager Pac 6500 Oxygen (O2) single gas detector is a reusable monitor which is capable of measuring in applications where there may be a risk of oxygen enrichment or oxygen depletion. Other configurations are available for carbon monoxide (CO), hydrogen sulphide (H2S) and sulphur dioxide (SO2).
This single gas detector uses powerful sensors and has quick response times to ensure worker safety. It can be used under tough conditions and can be securely fastened to clothing thanks to the integrated crocodile clip.
The Pac 6500 can be calibrated every 6 months to ensure it's fully compliant and the illuminating D-Light on the device shows that it's been through its self-test and is ready to use. The large display on the front of the unit will show all important information including gas levels, battery life and gas type. Drager's Pac 6500 has a powerful battery which allows it to be used for approximately two years. During this time neither the battery nor the sensor should need replaced.
- Replaceable filter membrane allows the sensor to be protected
- Triple alarm system (vibrating, visual, audible) including 360° alarm signal that can be seen from all sides
- Robust housing withstands tough conditions. It's also shock-resistant and chemical-resistant
- Gas types are clearly identified on each model using colour-coded labels
- Unit is IP68 rated
- Backlighting on the unit ensures the information is clearly displayed
- Pac 6500 includes a data logger and an event logger which records concentrations along with the date and time
- Information can be downloaded to a PC via an interface and processed there
Measuring Range |
O2 - 0-25 Vol. % |
Dimensions |
64 x 84 x 20mm |
Weight |
Approx. 106g (113g with clip) |
Battery Service Life |
O2 min. 10 months, other configurations up to 2 years |
Air Pressure |
700 to 1300 hPa |
Air Humidity |
10 to 90% relative humidity, non-condensing |
Temperature |
-30 °C to +55 °C |
Approvals |
cCSAus, IECEx, ATEX, CE |
