Drager Pac 7000 Chlorine Personal Gas Monitor

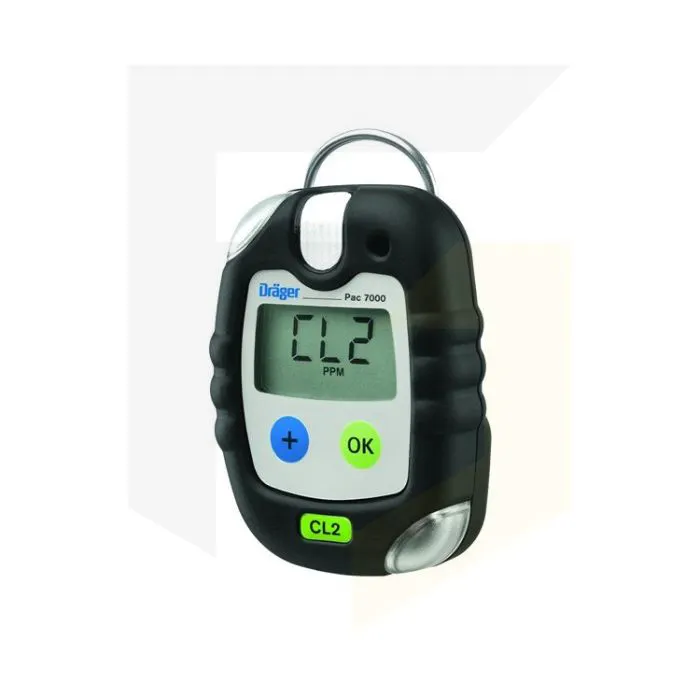

Drager Pac 7000 Chlorine Cl2 Personal Gas Detector product image

PRODUCT CODE:: 3363767

Please note this product code is replaced by 8318978 .

Please note this product is currently discontinued.

Subscribe to back in stock notification

I have read & accept the Privacy Policy

Product description

Drager - Pac 7000 Chlorine (CL2) Personal Gas Detector

Please note: this product is now obsolete. See the Drager Pac 6500 as an alternative product.

The Draeger Pac 7000 is ideal for use in industrial settings and is a highly reliable portable gas detector which monitors harmful concentrations of chlorine (Cl2).

This small, personal monitor is capable of providing accurate and fast results on its easy-to-read display.

The detector is designed for use in long-term operations and has the ability to simplify bump testing by automating the process. This is possible when used in conjunction with the Drager Bump Test Station .

The bump tests on the Pac 7000 Cl2 gas detector can be configured to meet specific safety regulations. It also features an automatic shut-off function which means if function tests have not been carried out after a set period of time then the instrument automatically shuts down.

Key Features

Protective rubber coating – impact-resistance and impervious to corrosive chemicals
Optimised protection against electromagnetics
Adjustable crocodile clips allows monitor to be fastened to clothing
Battery and sensor are easily replaceable on-site without any additional equipment.
Replaceable water and dust filter
Immediate display of gas hazards
Adjustable data logger with downloadable data via Drager Pac Vision, Drager CC-Vision software or Drager GasVision software
Calibration options featured in integrated menu
Password protection option for fresh air or span calibration
Gas Inlets at the top and front of device
Automated bump test process with Drager Bump Test Station

Specification

Range (ppm)	0 to 20 ppm
Resolution (ppm)	0.05 ppm
Response Time	30 secs
Dimensions (W x H x D)	84 x 64 x 25 mm; 3.3 x 2.5 x 1.0 in.
Weight	120 g; 3.8 oz.
Ambient Conditions	Temperature: -30 – 50 °C; -20 – 120 °F Pressure: 700 – 1300 hPa Humidity: 10 – 90 % r. h.
Battery Life	5500 hours; unlimited lifetime (Typical at 25° C)
IP Rating	IP 65 – projection of water
Alarms	Two-tone-alarm typical > 90 dB at a distance of 30 cm Two alarm lights located at corners of monitor for 360° visibility Adjustable TWA and STEL alarms Low battery and error warning
Approvals	CE-Sign (89/336/EEC, 94/9/EC) ATEX II 1 G EEx ia IIC, T4; I M 1 EEx ia I, T 4 UL Class I, II, Div 1, Group A, B, C, D, E, F, G, Temp. Code T4 cUL Class I, II, Div 1, Group A, B, C, D, E, F, G, Temp. Code T4 IECEx EEx ia IIC, T4 Marine Equipment Directive 96/98/EC Measurement Performance Certificate (acc. to ATEX) EN 45544 (CO, H2S), EN 50104 (02), EN 50271
What’s Included	Pac 7000 Detector with Drager XXS Sensor as specified Operation and maintenance manual Crocodile clip (installed) High capacity Lithium battery installed
