Drager - Pac 7000 Hydrogen Cyanide (HCN) Personal Gas Detector

PRODUCT CODE:
8318973
Please note: this product is now obsolete. See the Drager Pac 8000 as an alternative product.

Please note this product is currently discontinued.

Loading...

Product description

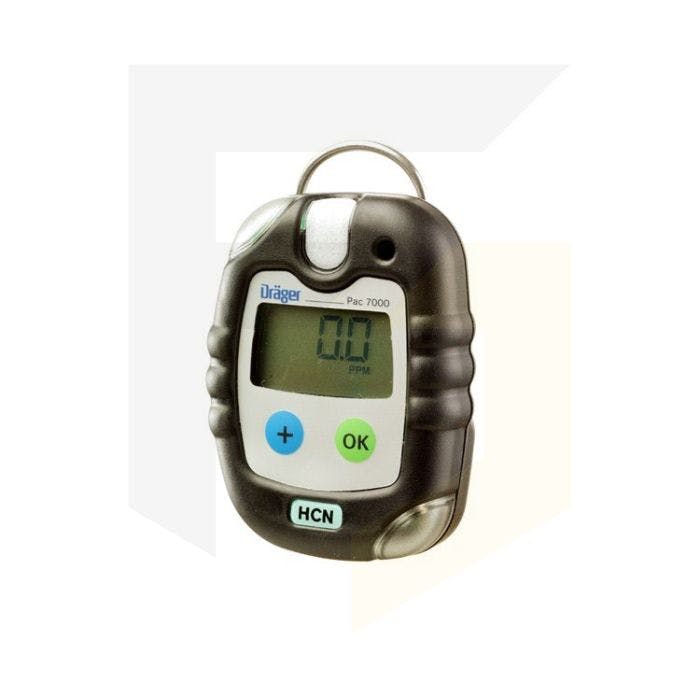

Drager - Pac 7000 Hydrogen Cyanide (HCN) Personal Gas Detector

Please note: this product is now obsolete.  See the Drager Pac 8000 as an alternative product.

The Pac 7000 from Draeger is a small, portable gas detector which can detect harmful concentrations of hydrogen cyanide.  It is an ideal monitor for industrial settings.

Whilst providing fast and accurate readings of HCN the Pac 7000 is also a highly reliable, personal gas monitor.

It is designed for long-term operation and can make bump testing easier by automating the process (when used in conjunction with the Drager Bump Test Station ).

Bump tests are configurable and can be matched to specific safety regulations.  The Pac 7000 also has an automatic shut-off function if, after a set period of time, function tests have not been carried out.

Key Features

  • Impact-resistant, protective rubber coating – impervious to corrosive chemicals
  • Offers optimised protection against electromagnetics
  • Fasten to clothing using adjustable crocodile clips
  • Easy to replace battery and sensor on-site without any additional equipment
  • Water and dust filter is replaceable
  • Immediate display of gas hazards
  • Adjustable data logger records all concentrations and events with respective dates and times (120 hours @ 1 data set per minute)
  • Data can be downloaded via Drager Pac Vision, Drager CC-Vision software or Drager GasVision software
  • Calibration options can be viewed in integrated menu
  • Password protection option for fresh air or span calibration
  • Gas Inlets at the top and front of device
  • Automated bump test process with Drager Bump Test Station
Specification
Range  (ppm) 0 to 50 ppm
Resolution  (ppm) 0.1 ppm
Response Time 15 secs
Dimensions (W x H x D) 84 x 64 x 25 mm; 3.3 x 2.5 x 1.0 in.
Weight 120 g; 3.8 oz.

Ambient Conditions
  • Temperature: -20 – 50 °C; -4 – 122 °F
  • Pressure: 700 – 1300 hPa
  • Humidity: 10 – 90 % r. h.
Battery Life

5500 hours; unlimited lifetime (Typical at 25° C)
IP Rating IP 65 – projection of water

Alarms
  • Two-tone-alarm typical > 90 dB at a distance of 30 cm
  • Two alarm lights located at corners of monitor for 360° visibility
  • Adjustable TWA and STEL alarms
  • Low battery and error warning
Approvals
  • CE-Sign (89/336/EEC, 94/9/EC)
  • ATEX II 1 G EEx ia IIC, T4; I M 1 EEx ia I, T 4
  • UL Class I, II, Div 1, Group A, B, C, D, E, F, G, Temp. Code T4
  • cUL Class I, II, Div 1, Group A, B, C, D, E, F, G, Temp. Code T4
  • IECEx EEx ia IIC, T4
  • Marine Equipment Directive 96/98/EC
  • Measurement Performance Certificate (acc. to ATEX) EN 45544 (CO, H2S), EN 50104 (02), EN 50271
What’s Included
  • Pac 7000 Detector with Drager XXS Sensor as specified
  • Operation and maintenance manual
  • Crocodile clip (installed)
  • High capacity Lithium battery installed
