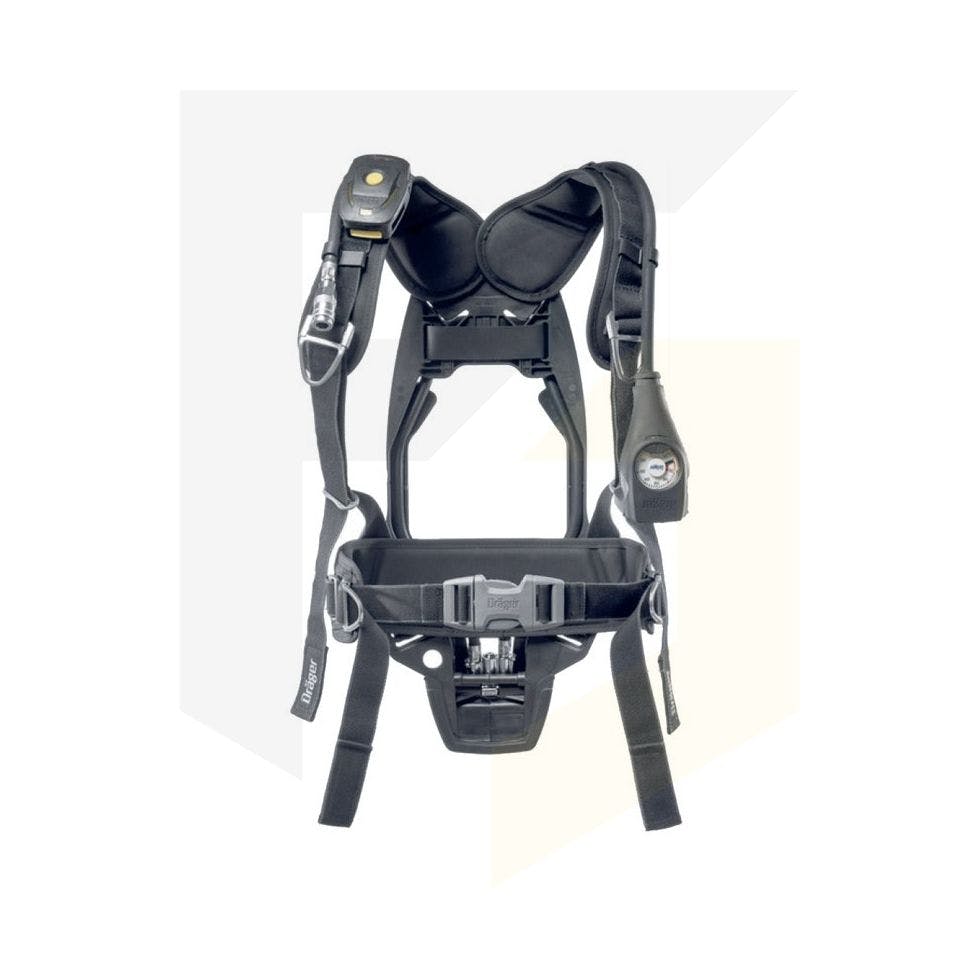

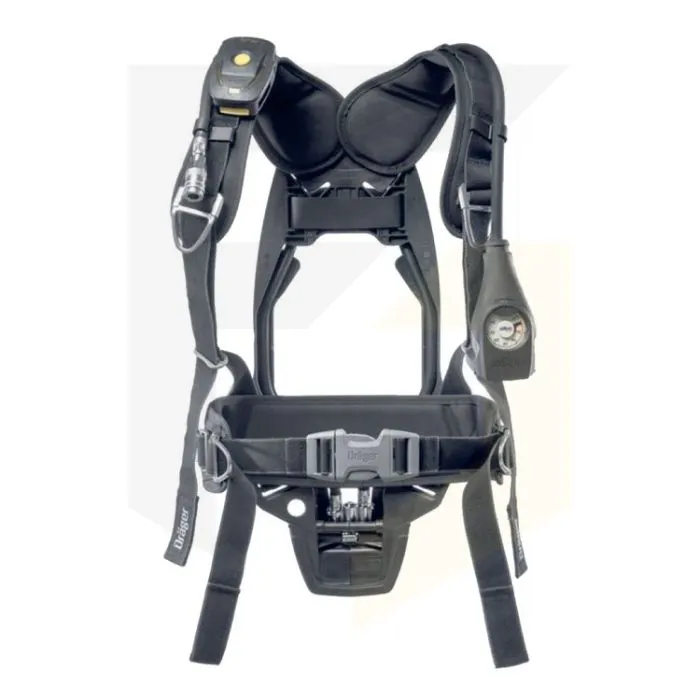

Drager PSS 4000 TCS Pneumatic Gauge - Universal Strap
Drager's PSS 4000 self-contained breathing apparatus harness has been designed with fire fighting applications in mind and other robust applications. This particular version has a universal strap.
The harness is extremely durable with a quick-release fastener. The harness, along with the pull-forward mechanism, allows easy and quick adjustment. Your stability will be improved thanks to the design of the PSS 4000. It's carrying frame fits in to the natural contours of the body which helps to reduce the risk of back strain, stress and fatigue.
The design of the PSS 4000 also means that the risk of snagging and potential entanglement is reduced. This is thanks to the integrated hose function in the carrying frame which houses the medium pressure air supply and the gauge hoses. If you would prefer to change which side your gauge is on then the hoses can be re-routed.
- Ultra-lightweight
- Offers an optimal load distribution
- Suitable for frequent use
- Made of durable materials
- Easy to maintain and service
- Additional options are available including the compatibility with the Drager Bodyguard 1500 personal alert safety system – see the datasheet for more information
Size |
590 x 290 x 160 mm |
Weight |
3.00 kg |
Input Pressure |
0 to 300 bar |
Nominal 1st Stage Output pressure |
7.5 bar |
1st Stage Output pressure |
>1000 l/min |
LDV Output flow |
>400 l/min |
Whistle Activation Pressure |
50 to 60 bar |
Whistle Sound Level |
>90 dBA |
ADSU Main Alarm |
N/a |
ADSU Pre-Alarm |
N/a |
Approvals |
|
