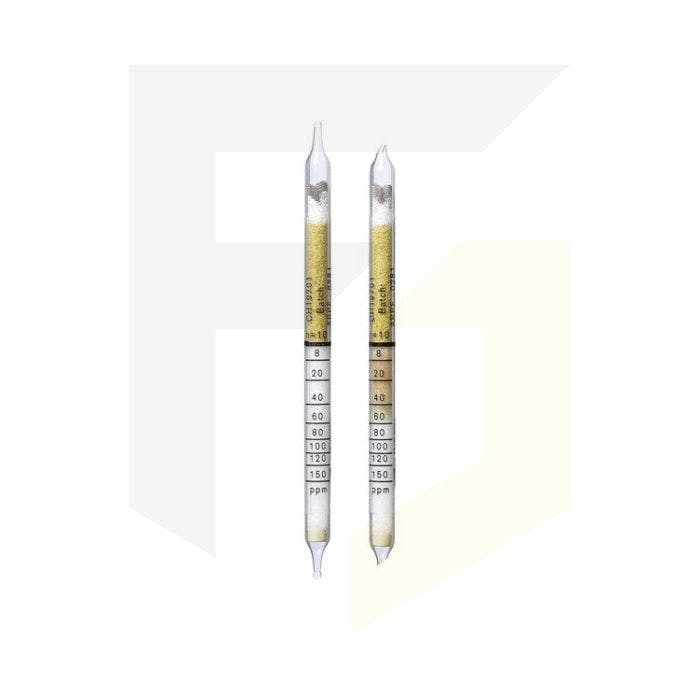

Drager Short Term Detection Tubes - Carbon Monoxide 8/a (Pack of 10)
These low-cost tubes are suitable for detecting carbon monoxide (CO) gas (8/a). The measurement range of these tubes is 8 to 150 ppm (for CO in H2).
Please note these tubes have a shelf life of 2 years and come in a pack of 10 tubes.
Buy the Drager Accuro Gas Detection Pump by clicking here. This is required for the use of short-term gas detection tube.
- Reach difficult measurement areas with the tubes, pump and accessories
- Carry out measurements on the spot
- Measurement results may take between 10 seconds and 15 minutes depending on the type of tube used
- Applications for use include variations in concentrations in the workplace, contamination of breathing zones, pre-entry checks and confined space entry
Application Range | |
Standard Measuring Range: | 8 to 150 ppm |
Number of Strokes n: | 10 |
Time for Measurement: | approx. 2 min |
Standard Deviation: | ± 10 to 15 % |
Color Change: | white --> pale brown |
Ambient Operating Conditions | |
Temperature: | 0 to 50 °C |
Absolute Humidity: | < 50 mg H2O / L |
Reaction Principle | |
5 CO + I2O5 --> I + 5 CO2 | |
Cross Sensitivity | |
Acetylene is also indicated, however, with less sensitivity. Petroleum hydrocarbons, benzene, halogenated hydrocarbons and hydrogen sulfide are retained in the pre-layer. In the case of higher concentrations of interfering hydrocarbons, use should be made of a carbon pre-tube (CH 24 101). Higher concentrations of easily cleavable halogenated hydrocarbons (e.g. trichloroethylene), are liable to form chromyl chloride in the pre-layer which changes the indicating layer to a yellowish-brown. CO determination is impossible in the case of high olefin concentrations. |
