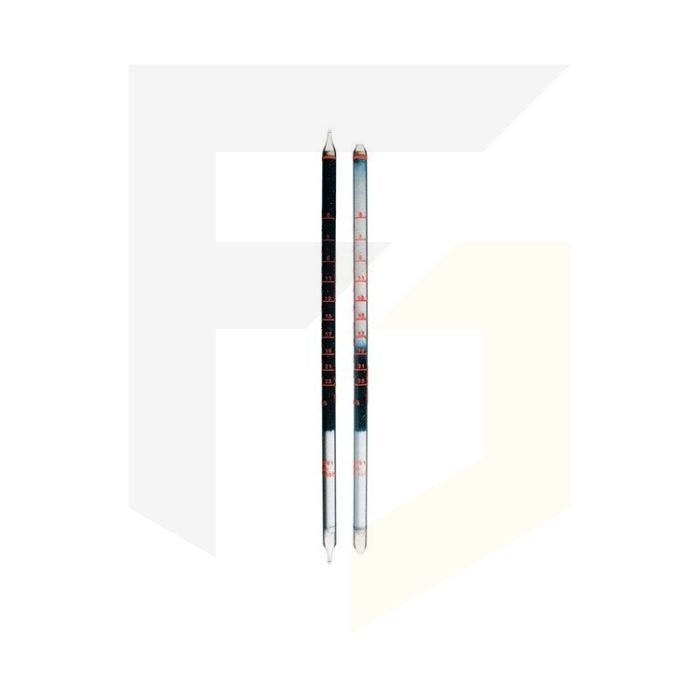

Drager Short Term Detection Tubes - Oxygen 5/c (Pack of 10)

PRODUCT CODE:: 8103261

These tubes are designed for spot-measurements and must be used with the Drager Accuro Gas Detection Pump. Buy now from Frontline Safety.

£189.32 inc VAT

£157.77

Subscribe to back in stock notification

I have read & accept the Privacy Policy

Product description

Drager Short Term Detection Tubes - Oxygen 5/c (Pack of 10)

These oxygen gas detection tubes from Drager Safety have a measurement range of 5 to 23 vol%. They have a shelf life of 2 years and come in a pack of 10 tubes.

The Drager Gas Detection Pump (Accuro) is compatible with the short-term gas detection tubes. You can purchase this product by clicking here .

Key Features

Reach difficult measurement areas with the tubes, pump and accessories
Carry out measurements on the spot
Measurement results may take between 10 seconds and 15 minutes depending on the type of tube used
Applications for use include variations in concentrations in the workplace, contamination of breathing zones, pre-entry checks and confined space entry

Specification

Application Range
Standard Measuring Range:	5 to 23 vol. %
Number of Strokes n:	1
Time for Measurement:	approx. 1 min
Standard Deviation:	± 10 to 15 %
Color Change:	blue black --> white

Ambient Operating Conditions
Temperature:	5 to 50 °C
Absolute Humidity:	0 to 40 mg H2O / L

Reaction Principle
a) O2 + TiCI3 ä TiIV-compound+ HCl b) Adsorption of HCl by silica gel

Cross Sensitivity
Carbon dioxide, carbon monoxide, solvent vapors, halogenated hydro carbons and N2O do not affect the indication.

Additional Information
These tubes become very warm during measurement, reaching temperatures of approximately 100 °C. Therefore these tubes should not be used in potentially combustible atmospheres. If in doubt, test the area before using the tube with a combustible gas monitor, before using the tube.
