Drager Short Term Detection Tubes - Phosphine 0.1/a (Pack of 10)

These tubes are designed for spot-measurements and must be used with the Drager Accuro Gas Detection Pump. Buy now from Frontline Safety.

Please note this product is currently discontinued.

Subscribe to back in stock notification

I have read & accept the Privacy Policy

Product description

Please note: this product is now obsolete. It has been replaced by 8103711.

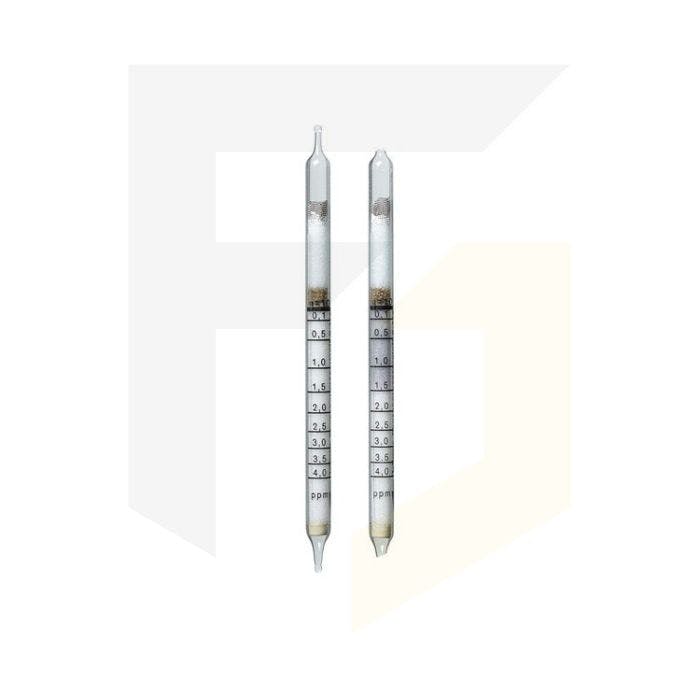

Drager short-term detection tubes – suitable for phosphine (0.1/a) with a measurement range of 0.1 to 40 ppm.

They have a shelf life of 2 years and come in a pack of 10 tubes.

Short-term detection tubes require the use of the Drager Accuro Gas Detection Pump. .

Hard-to-reach places can be accessed and measured using various compatible accessories
Excellent for on-the-spot measurements
10 seconds to 15 minutes is the time frame for readings and is totally dependent on the tube type
Suitable applications include pre-entry checks, confined space entry, variations in concentration levels and also contamination of breathing areas are amongst a number of potential of applications

Specification

Application Range
Standard Measuring Range:	0.1 to 4 ppm
Number of Strokes n:	10
Time for Measurement:	approx. 6 min
Standard Deviation:	± 15 to 20 %
Color Change:	white - grey violet

Ambient Operating Conditions
Temperature:	0 to 50 °C
Absolute Humidity:	max. 40 mg H2O / L

Reaction Principle
PH3 + Au3+ - Au (colloidal)

Cross Sensitivity
Arsine and antimony hydride are indicated, but with different sensitivities. Hydrogen sulfide, mercaptans, ammonia, carbon monoxide, sulfur dioxide and hydrochloric acid in the TLV range do not interfere.

Extension of the Measuring Range
1 to 40 ppm, n = 1 multiply the reading by 10
