Drager Sulphur Dioxide (0-100 ppm) Sensor

PRODUCT CODE:: 6809160

£745.70 inc VAT

£621.42

Subscribe to back in stock notification

I have read & accept the Privacy Policy

Product description

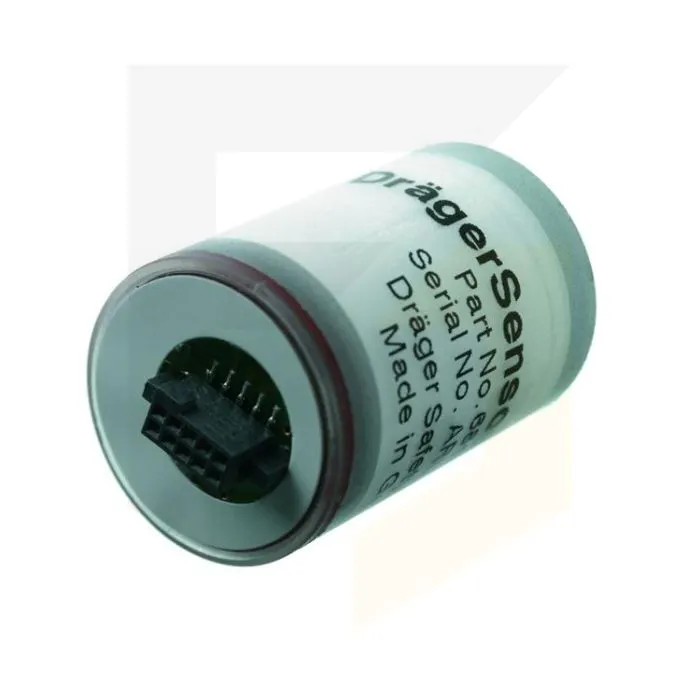

Drager Sulphur Dioxide (0-100 ppm) Sensor

This Sulphur Dioxide (SO2) DragerSensor is an XS EC sensor and has a measurement range of 0 to 100 ppm.

The sensor can be used with the X-am 7000 multi gas detector and is suitable for use in applications such as the food industry, pest control, mining, oil and gas, petrochemicals, pulp and paper, shipping and steel.

Key Features

Is a plug and play sensor and can be easily replaced
Has a one-year guarantee
Can make use of a selective filter (eliminates cross-sensitivity to H2S)

Specification

Detection Limit	0.5 ppm
Resolution	0.1 ppm
Response Time	≤ 20 seconds at 20 °C or 68 °F (T90)
Measurement accuracy	Zero Point: ≤ ± 0.2 ppm Sensitivity: ≤ ± 2% of measured value
Long-term drift, at 20°C (68°F)	Zero Point: ≤ ± 1 ppm/month Sensitivity: ≤ ± 2% of measured value/month
Warm-up time:	≤ 15 minutes
Ambient conditions	Temperature: (–40 to 50)°C (–40 to 122)°F Humidity: (10 to 90)% RH Pressure: (700 to 1,300) hPa
Influence of Temperature	Zero Point: ≤ ± 1 ppm Sensitivity: ≤ ± 5% of measured value
Influence of Humidity	Zero Point: ≤ ± 0.002 ppm/% RH Sensitivity: ≤ ± 0.2% of measured value/% RH
Test Gas	approx. 10 ppm SO2 test gas
