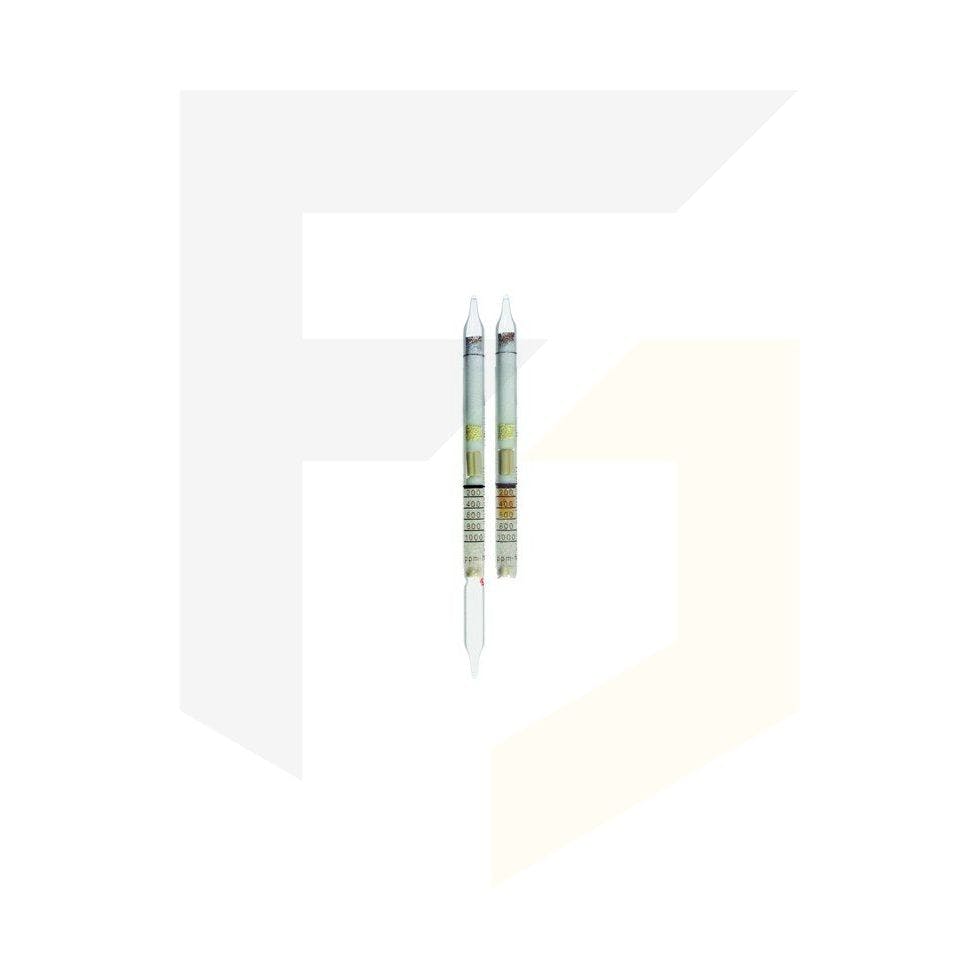

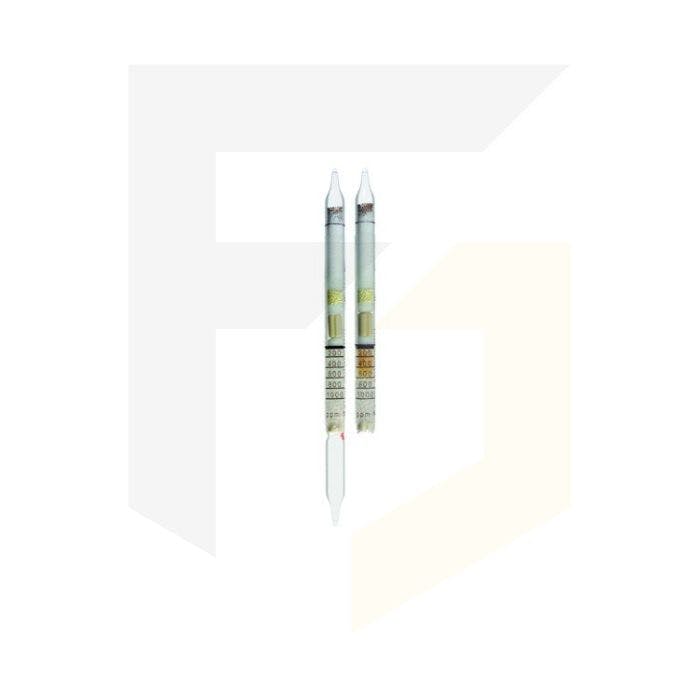

Drager Trichloroethylene 200/a -D (200-1000 ppm x h) Diffusion Tube

PRODUCT CODE:
8101441
Drager Trichloroethylene 200/a -D (200-1000 ppm x h) Diffusion Tube

Please note this product is currently discontinued.

Loading...

Product description

Drager Trichloroethylene 200/a -D (200-1000 ppm x h) Diffusion Tube

Please note this product is in phase-out, check stock levels before ordering by calling 0141 771 7749.

Drager Trichloroethylene 200/a -D (Measuring: 200 to 1,000 ppm x h ) Diffusion Tube - Max. Oper. Time: 8 hrs.

Note: This product has a shelf life of 2 years.

Application Range
Standard Range Measurement Time
200 to 1,000 ppm 1 h
100 to 500 ppm 2 h
50 to 250 ppm

4 h
25 to 125 ppm 8 h
Standard Deviation ± 20 to 25 %
Color Change white - yellow orange



Ambient Operating Conditions

Temperature 0 to 35 °C
Absolute Humidity 5 to 12 mg H2O / L



Reaction Principle

a) HCIC=CCI2 + CrVI - CI2
b) CI2 + o-Tolidine - yellow orange reaction product

Cross Sensitivity

Other chlorinated hydrocarbons are also indicated, but with different sensitivities.

Perchloroethylene is indicated with a slightly higher sensitivity and 1,1,1-trichloroethane with about twice the sensitivity (e.g. 200 ppm x h 1,1,1-trichloroethane gives an indication of 400 ppm x h).

Chlorine and nitrogen dioxide in dosages higher than 10 ppm x h also discolor the indicating layer.
