Drager X-Act 7000

PRODUCT CODE:
8610800

The Drager X-act 7000 is an advanced gas detection system designed for ultra-sensitive, on-site analysis of hazardous substances. Compatible with Drager MicroTubes, it offers real-time, highly accurate measurements with minimal user effort.

£4,933.60 inc VAT
£4,111.33
Loading...

Product description

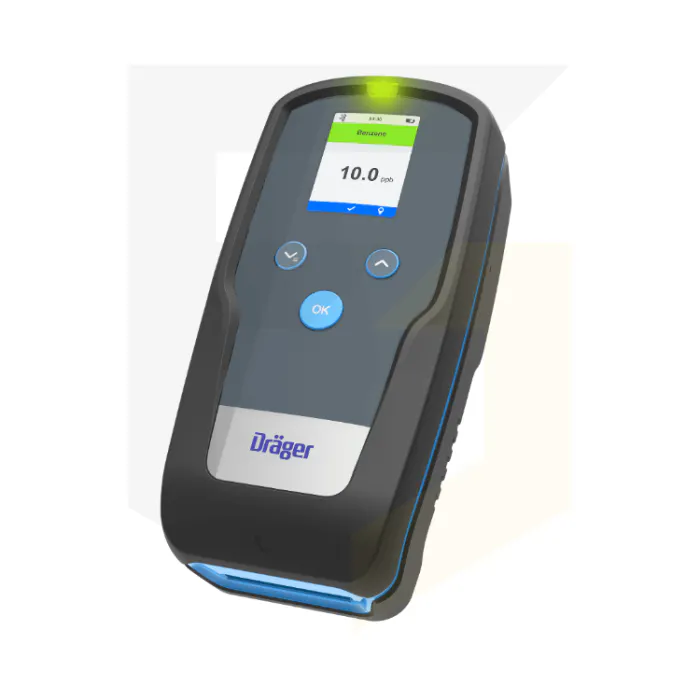

Drager X-act 7000 - Advanced Gas Detection System

The Drager X-act 7000 is a state-of-the-art automated gas analysis system, engineered for precise detection of toxic and carcinogenic gases in the parts per billion (ppb) and parts per million (ppm) ranges. Designed to work seamlessly with Drager MicroTubes, the X-act 7000 enables fast, easy, and reliable gas measurements across a wide range of industries, including chemical processing, oil and gas, manufacturing, and environmental safety.

Equipped with integrated RFID technology, the X-act 7000 automatically calibrates with the inserted MicroTube, eliminating the need for manual setup. Its battery-powered operation and intuitive design make it ideal for on-site, field, and industrial use.

Key Features

  • High Sensitivity: Detects gases at ppb and ppm levels for precise analysis
  • RFID Calibration: Automatic calibration with pre-programmed Drager MicroTubes
  • Portable & Easy to Use: Battery-powered with an intuitive interface for quick measurements
  • Versatile Applications: Ideal for hazardous substance monitoring in industrial environments
Specification

Measuring Range & Resolution

Varies, depending on the Drager MicroTubes in use

Typical Testing Time

From 5 seconds to 1,200 seconds, depending on the Drager MicroTubes in use and the concentration of the test substance

Ready to Use

Immediately

Calibration

Recommended annually

Operating Temperature

0 to +50 °C (+32 to +122 °F)

Storage Temperature

-20 to +55 °C (-4 to +131 °F) (Analyzer)

Air Pressure

+4 to +25 °C (+39 to +77 °F) (Drager MicroTubes)

700 to 1,300 hPa

Humidity

0 to 95 % relative humidity, non-condensing

Recording of Measured Data

CMOS sensor optics and LED light

System Diagnostics

Automatic, using micro-controllers for all system components

Display

2.4 inch high contrast, colour display with a resolution of 240 x 320, viewing angle of 160°

Menu Languages

30

Operating Time

Approx. 600 minutes of testing time

Power Supply

5 x 1.5V AA alkaline batteries

Dimensions (L x W x H)

195 mm x 85 mm x 70 mm (7.7 in x 3.3 in x 2.8 in)

Approvals

ATEX/IECEx: II 1G Ex IIC T4 Ga

cCSAus: Class I, Zone 0, AEx ia IIC T4 Ga

Protection Class

IP54, dust- and splash-resistant
