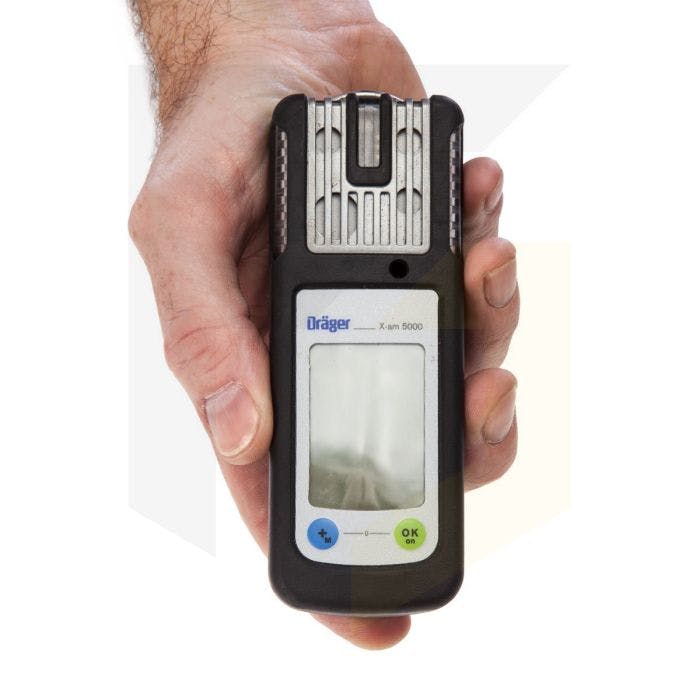

Drager X-am 5000 Gas Detection Kit CatEx/O2/CO&H2S
  • O2
  • CO
  • H2S
Drager X-am 5000 Gas Detection Kit CatEx/O2/CO&H2S

Product Code - 3359311

exc VAT £1,116.00 inc VAT £1,339.20
Description / Features / Spec


Drager X-am 5000 Gas Detection Kit CatEx, O2, Dual CO/H2S

The Drager X-am 5000 features a combustible gas Ex sensor, an O2 oxygen sensor and a combined CO carbon monoxide and H2S hydrogen sulphide sensor.  It’s ideal for personal monitoring applications and can be used in explosive atmospheres.

It has the ability to detect up to five gases.  It has tough rubber housing and shock-proof sensors.

The Ex sensor has a high level of sensitivity and high resistance against sensor poisons such as silicone and hydrogen sulphide.

The X-zone 5000 can be used in conjunction with the X-am 5000 to carry out area monitoring and the Drager Bump Test Station and X-dock testing and calibration station can both be used to carry out functional tests and bump tests.

Key Features

  • Resistant to electromagnetic interference
  • External pump available for pre-entry checks into confined spaces
  • Easy to find in dark due to retro-reflective label
  • Clear and large display
  • Operating time can increase to > 40 hours in energy save mode
  • Datalogging capability >1000 hours with 5 gases and a recording interval of 1 value per minute
  • Results can be read out via Infrared
  • Gas inlets featured at the top and bottom of the device


Range (ppm)
  • 0 to 100% LEL
  • 0 to 100 Vol. -% CH4
  • 0 to 25 Vol. -% O2
  • 0-2000 ppm CO
  • 0-200 ppm H2S
Resolution (ppm)
  • 1% LEL
  • 0.1 Vol.-% - O2
  • 1 ppm H2S
  • 2 ppm CO
Response Time (T90)
  • 10 sec (Ex and O2)
  • 20 sec (CO & H2S)
Dimensions 48 x 130 x 44 mm; 1.89 x 5.12 x 1.73 in.
Weight 220 - 250 g; 7.8 - 8.8 oz.
Ambient Conditions
  • Temperature: -20 - +50 °C
  • Pressure: 700 - 1300 mbar
  • Humidity: 10 - 95% r.h.
Operating Time >12 hours (without Ex sensor > 700 hours), >40 hours – save energy mode
Charging Time  < 4 hrs
IP Rating IP 67 – water and dust resistant
  • Visual (360°)
  • Audible (multi-tone >90 dB at 30cm)
  • Vibrating
  • ATEX – I M1 Ex ia I II 1G Ex ia IIC T3 (Zone 0) I M2 Ex d ia I II 2G Ex d ia IIC T4/T3 Measurement performance certificate according to: EN 50104 (2002)+A1(2004) – O2 EN 60079-29-1:2007 – Methane to Nonane EN 50271:2001 – Software and documentation
  • UL – Class I & II, Div 1 Group A, B, C, D, E, F, G T-Code T4/T3
  • CSA – Class I Div. 1 Group A, B, C, D, T.-Code T4/T3
  • IECEx – Ex ia I Ex ia IIC T3 Ex d ia I Ex d ia IIC T4/T3
  • CE Mark – Electromagnetic Compatibility (Directive 2004/108/EG); EN 50270:2006
  • MED – Marine Equipment Directive (Directive 96/98/EC)
  • MSHA
What's Included
  • Drager X-am 5000 Monitor with specified sensors
  • Crocodile clip
  • NiMH rechargeable power pack and charger
  • Operation and Maintenance manual
