PRODUCT CODE
DRAGER-XAM5600-KIT
The Drager X-am 5600 is a multi gas detection kit, capable of monitoring up to 5 gases. This includes LEL, CO, O2 and H2S.

* Required Fields

    £1,927.66 £1,606.38



    Additional services

    • £50.00
    Gas detection equipment requires service and calibration every 6 months. In acknowledgement of this we are offering you your first calibration at a special rate.

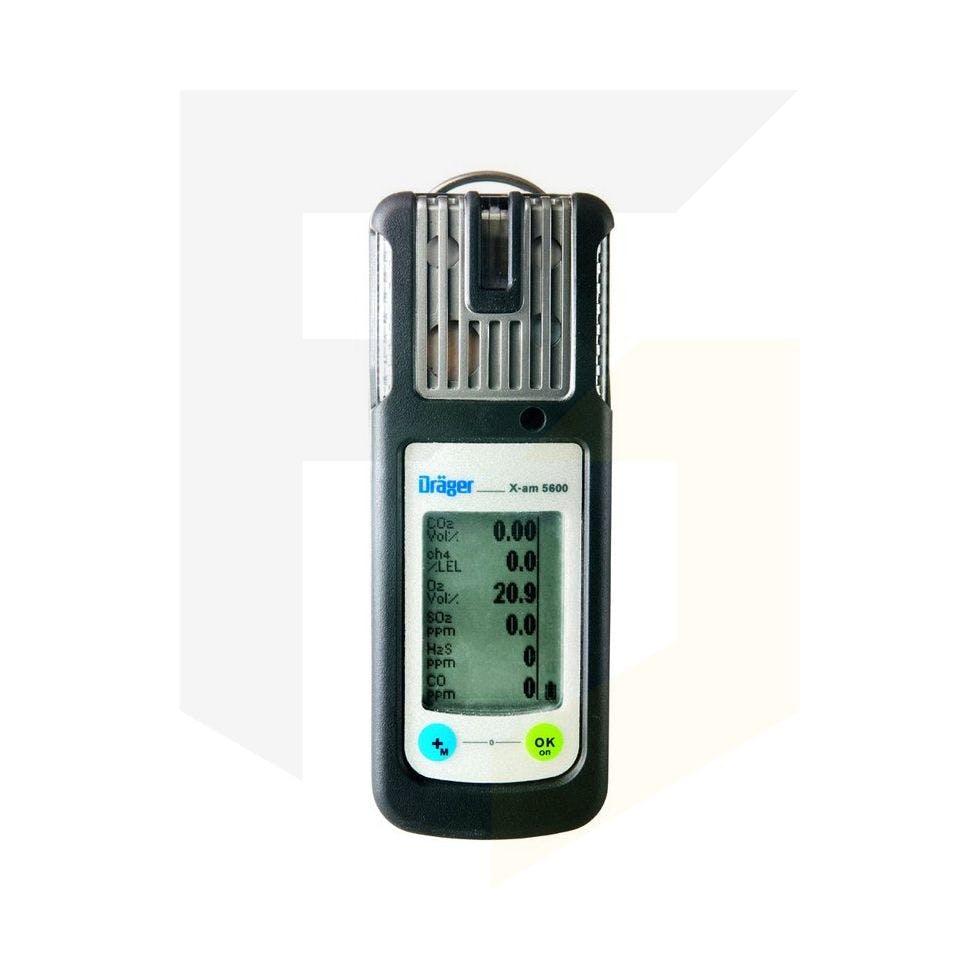

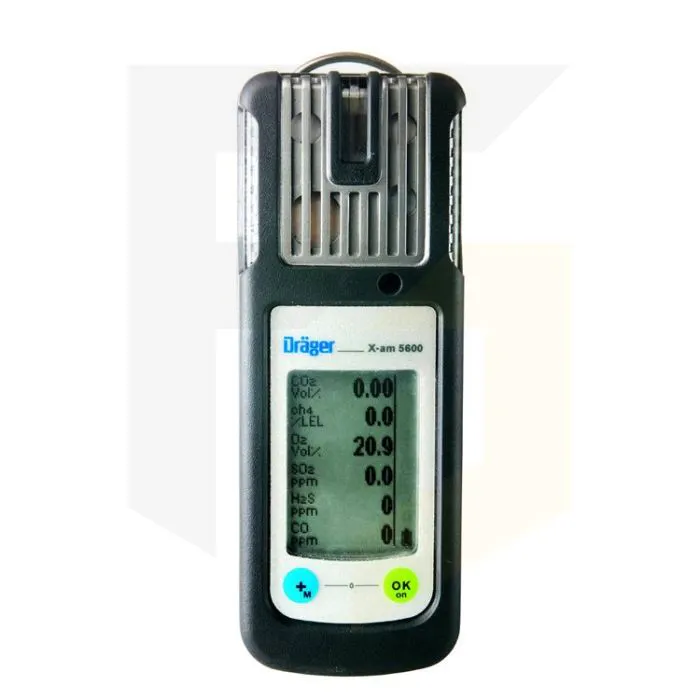

    Drager X-am 5600 Gas Detection Kit

    Drager X-am 5600 Gas Detection Kit IREX, O2, Dual CO/H2S

    The Drager X-am 5600 is a small and reliable multi gas detector.  It’s ideal for personal monitoring applications and use in tough environments

    It has the ability to measure up to 6 gases.  This monitor in particular is able to detect explosive, combustible hydrocarbons in the range of the lower explosive limit, carbon monoxide hydrogen sulphide and also oxygen.

    Additional equipment, suitable for use with the X-am 5600 includes the X-zone 5000 (for area monitoring applications), Drager CC-Vision PC software and the Drager Bump Test Station and X-dock testing and calibration station.



    Key Features
    • Water-tight, robust detector with integrated rubber boot
    • Simple two-button control panel
    • Retro-reflective labels – easy to find monitor
    • Large display shows clear readings
    • Datalogging capability – read out via infrared > 1000 h with 6 gases/recording interval of 1 value per minute
    • Gas inlets are featured on the upper side and front side of the instrument
    Specifications
    Range (ppm)
    • 0 -100% LEL
    • 0 – 100 Vol.-% Methane, Propane, Ethylene
    • 0 – 25 Vol.-% O2
    • 0 – 2000 ppm CO
    • 0 – 200 ppm H2S
    Resolution (ppm)
    • 1% LEL
    • 0.1 Vol.-% CH4
    • 0.1 Vol.-% O2
    • 2 ppm CO
    • 1 ppm H2S
    Response Time (T90)
    • 10 sec O2
    • 15 sec CO & H2S
    • 20 sec IREx
    Dimensions 47 x 130 x 44 mm; 1.85 x 5.12 x 1.73 in.
    Weight 250 g; 8.8 oz.
    Ambient Conditions
    • Temperature: -20 - +50 °C
    • Pressure: 700 - 1300 mbar, 20.7 to 38.4” Hg
    • Humidity: 10 - 95% r.h.
    Operating Time ~ 10 h or rather ~12 h
    Charging Time  < 4 hrs
    IP Rating IP 67 – water and dust resistant
    Alarms
    • Visual (360°)
    • Audible (multi-tone >90 dB at 30cm)
    • Vibrating
    Pump Operation Maximum hose length 30m; 98 ft
    Calibration Sensor calibration – every 12 months
    Certifications
    • ATEX – I M1 Ex ia I MA, II 1G Ex ia IIC T4/T3 (Ga)
    • EN 50104 (2002) + A1 (2004) O2, EN 45544 CO, CO2 & H2S, EN 60079-29-1:2007 Methane, Propane, Nonane, EN 50271:2001 Software and documentation
    • IEC – Ex ia I Ma, Ex ia IIC T4/T3 Ga for MQG 01**, MED – Marine Equipment Directive (Directive 96/98/EC)
    • CSA C US – Div.1, Class I, Groups A, B, C, D T4/T3, A/Ex ia IIC T4/T3/Ga
    What's Included
    • Drager X-am 5600 Monitor with specified sensors
    • Crocodile clip
    • NiMH rechargeable power pack and charger
    • Operation and Maintenance manual
