Drager XXS CO/H2 Compensated (0-2000ppm) Sensor

PRODUCT CODE:: 6811950

£564.08 inc VAT

£470.07

Subscribe to back in stock notification

I have read & accept the Privacy Policy

Product description

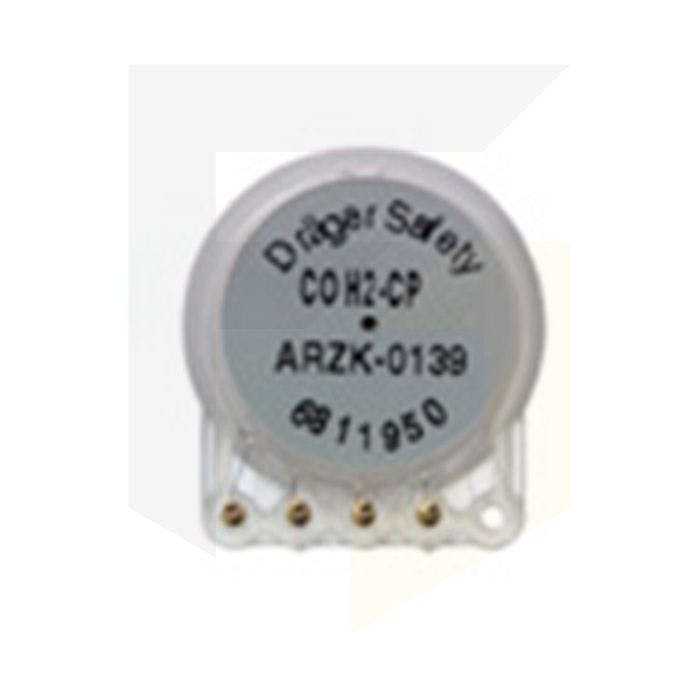

Drager XXS CO/H2 Compensated (0-2000ppm) Sensor

The DragerSensor XXS is for Carbon monoxide (CO) H2-CP and is a compensated sensor. This sensor has a measurement range 0 to 2000 ppm.

Market segments, which may be suitable for this sensor, include the steel industry, refineries and sewage treatment plants. The DragerSensor XXS sensor can be used in the Drager X-am 5600 and the X-am 5000 gas detectors.

Key Features

Replaceable sensors with a one year guarantee
Uses two measuring electrodes – one for CO and one for H2

Specification

Detection Limit	6 ppm
Resolution	2 ppm
Response Time	≤ 25 seconds at 20°C (T90) or 68°C
Measurement accuracy	Zero Point: ≤ ± 2 ppm Sensitivity: ≤ ± 2% of measured value
Long-term drift, at 20°C (68°F)	Zero Point: ≤ ± 2 ppm/year Sensitivity: ≤ ± 1% of measured value/month
Warm-up time:	≤ 12 hours
Ambient conditions	Temperature: (-40°C to 50°C)(-40 to 122°F) Humidity: (10 to 90)% RH Pressure: (700 to 1,300) hPa
Influence of Temperature	Zero Point: 5 ppm Sensitivity: ≤ ± 0.3% of measured value/K
Influence of Humidity	Zero Point: No Effect Sensitivity: ≤ ± 0.02% of measured value/% RH
Test Gas	approx. 250 ppm CO and 1,000 ppm H2
