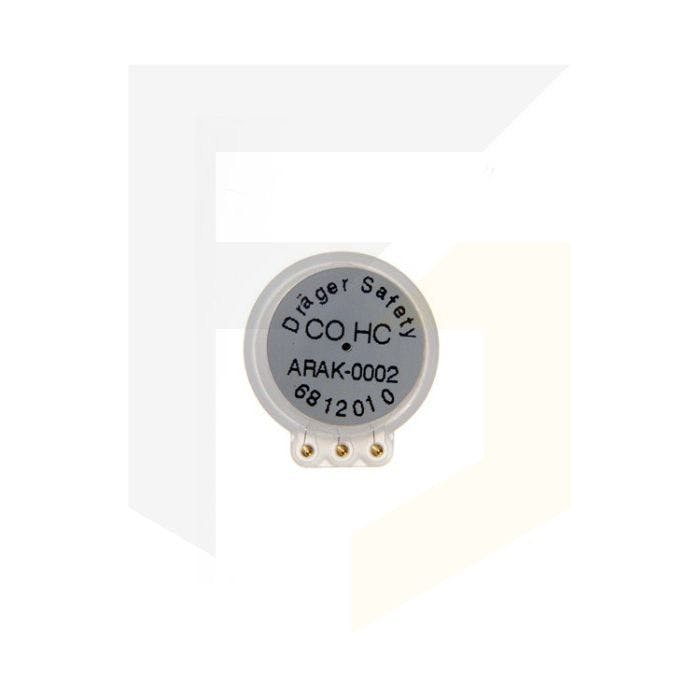

Drager XXS CO HC (0-10 000 ppm) Sensor

PRODUCT CODE:
6812010
Drager XXS CO HC (0-10 000 ppm) Sensor
Loading...
£555.13 inc VAT
£462.61

Product description

Drager XXS CO HC (0-10,000 ppm) Sensor

This XXS DragerSensor is for the detection of carbon monoxide (high concentrations).   It has a measuring range of 0 to 10,000 ppm and is suitable for use in both the X-am 5600 and the X-am 5000 gas detectors from Drager Safety.

Potential applications for this sensor include waste disposal industry, metal processing, petrochemical, fertilizer production, mining and tunnelling, (in particular monitoring high CO concentrations during rescue operations), shipping, inorganic chemicals, biogas, hazmat, steel industry, oil and gas and organic chemicals.

Key Features

  • One year guarantee on these replaceable filters
  • Excellent linearity across the measurement range
  • Features an internal selective filter
  • Provides a stable reading even at high concentrations over long periods of time
Specification

Detection Limit

10 ppm

Resolution

5 ppm

Response Time

≤ 25 seconds at 20°C (T90) or 68°C

Measurement accuracy

Zero Point:  ≤ ± 20 ppm
Sensitivity:  ≤ ± 2% of measured value

Long-term drift, at 20°C (68°F)

Zero Point:  ≤ ± 5 ppm/year
Sensitivity:  ≤ ± 1% of measured value/month

Warm-up time:

≤ 5 minutes

Ambient conditions

Temperature: (-40°C to 50°C)(-40 to 122°F)
Humidity: (10 to 90)% RH
Pressure: (700 to 1,300) hPa

Influence of Temperature

Zero Point: No Effect
Sensitivity:  ≤ ± 0.3% of measured value/K

Influence of Humidity

Zero Point:  No Effect
Sensitivity:  ≤ ± 0.02% of measured value/% RH

Test Gas

approx. 250 ppm CO
